Laser Beam Bar

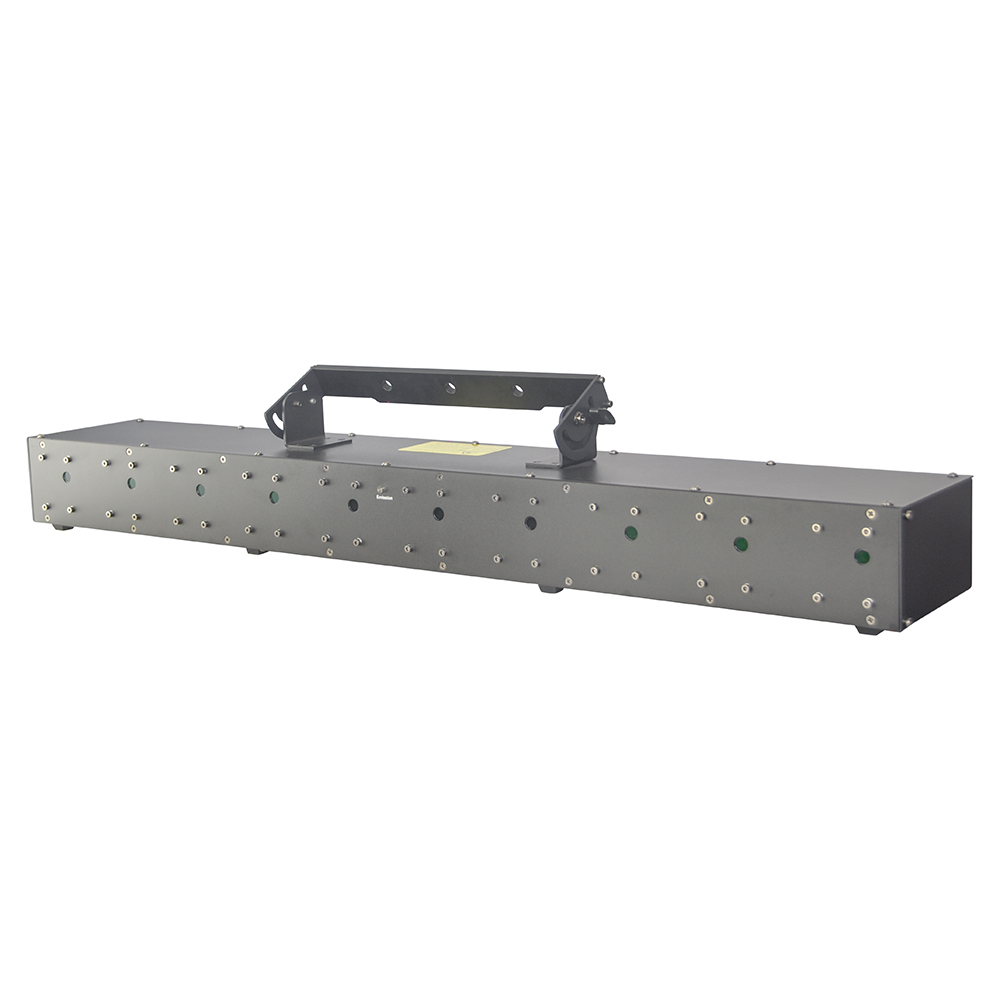

10 Eyes RGB Laser Beam bar with static beams

2.3W RGB laser beam bar
3W RGB laser beam bar
3.5W RGB laser beam bar

Compared to conventional laser lights, this RGB Laser Beam Bar is equipped with 10 laser diodes, forming a matrix of 10 parallel RGB full-color lasers. Each RGB color features 256 levels of brightness adjustment, resulting in 256*256*256 color combinations per RGB laser beam.

The lasers all use high-stability diodes with small divergence angles, ensuring tightly focused beams even at longer distances. The 10 parallel beam effect has a spacing of 10cm, with each beam adjustable in the XY direction on the front panel to achieve ideal spacing and alignment.
**Mounting Options:** Offers two handle mounting options (top and rear panels) for flexible installation at different angles. Features include Sound Active, Auto, Manual (single effect selection), DMX512, and Master-Slave Sync modes.
**Control Features:** Supports DMX512 (13 channels), Sound Active, Auto, Manual modes, and Master-Slave Sync mode. Each laser beam can be individually controlled for on/off, featuring dozens of built-in effects. It includes powerful DMX brightness adjustment capabilities to create vivid laser matrix effects, various flowing gradient colors, steady-on, strobe, bi-directional flow, opening/closing, and chase effects.

Product parameters

Model	TM-RGB023-LAS	TM-RGB030-LAS	TM-RGB035-LAS
Laser Power	2.3W RGB	3W RGB	3.5W RGB
Red 638nm	100mw*10pcs	100mw*10pcs	180mw*10pcs
Green 520nm	50mw*10pcs	80mw*10pcs	120mw*10pcs
Blue 450nm	80mw*10pcs	120mw*10pcs	150mw*10pcs
Beam size	<5mm
Divergence	<0.8mrad
Control Mode	DMX
Size	100016095mm
Net Weight	11kg
Packing	Carton/Flightcase

Product features

- Laser uses analog modulation technology for linear brightness control, ensuring vibrant colors.
- Equipped with multiple laser emitters, capable of simultaneous emission of multiple laser beams for multi-point beam effects.
- Concentrated beams capable of long-distance projection while maintaining high brightness and clarity.
- Multiple control modes including DMX512, ILDA interface, Sound Active mode, Auto mode, etc., catering to various control needs.

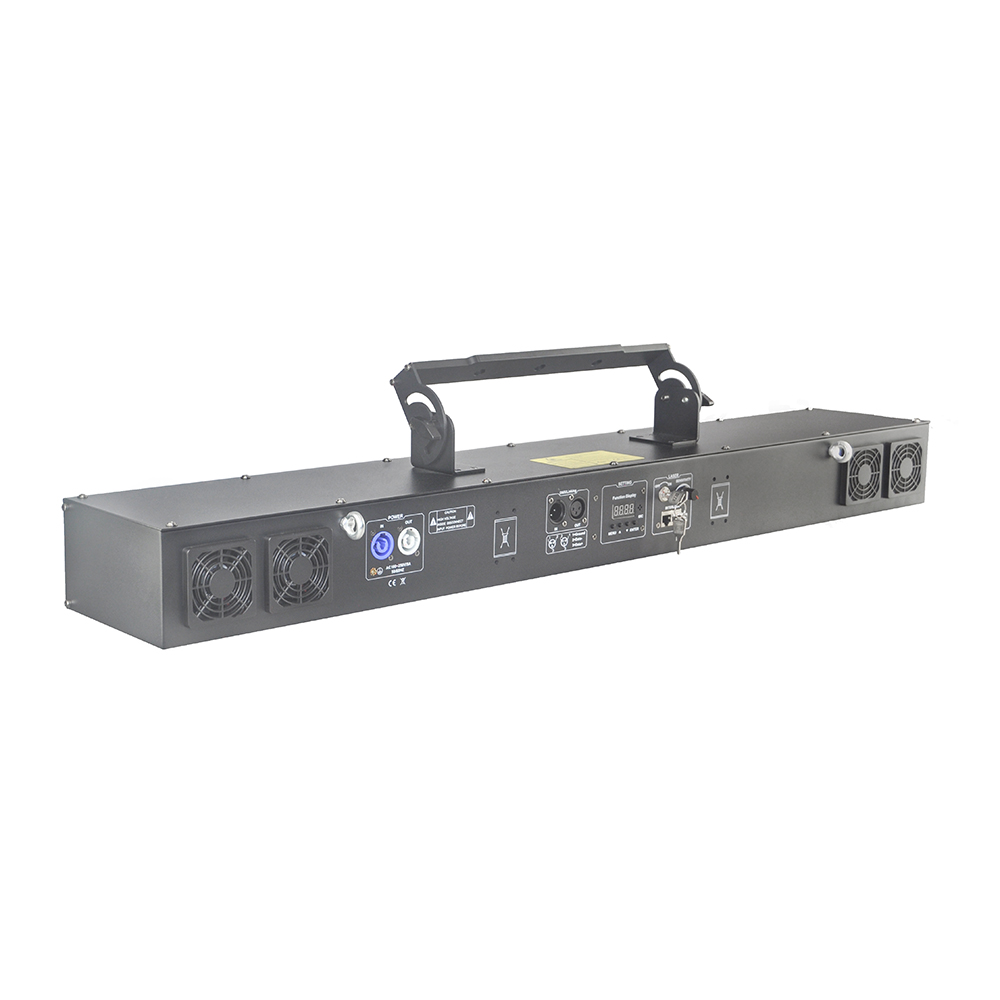

- Includes laser signal key switch, remote control interface, and suspension bolt for installation flexibility.
- Dustproof design with IP61 protection rating effectively prevents dust and oil smoke from entering the machine, ensuring longevity and reducing maintenance costs.
