10W RGB Laser Light with full power and pure diodes

RGB Laser Lights

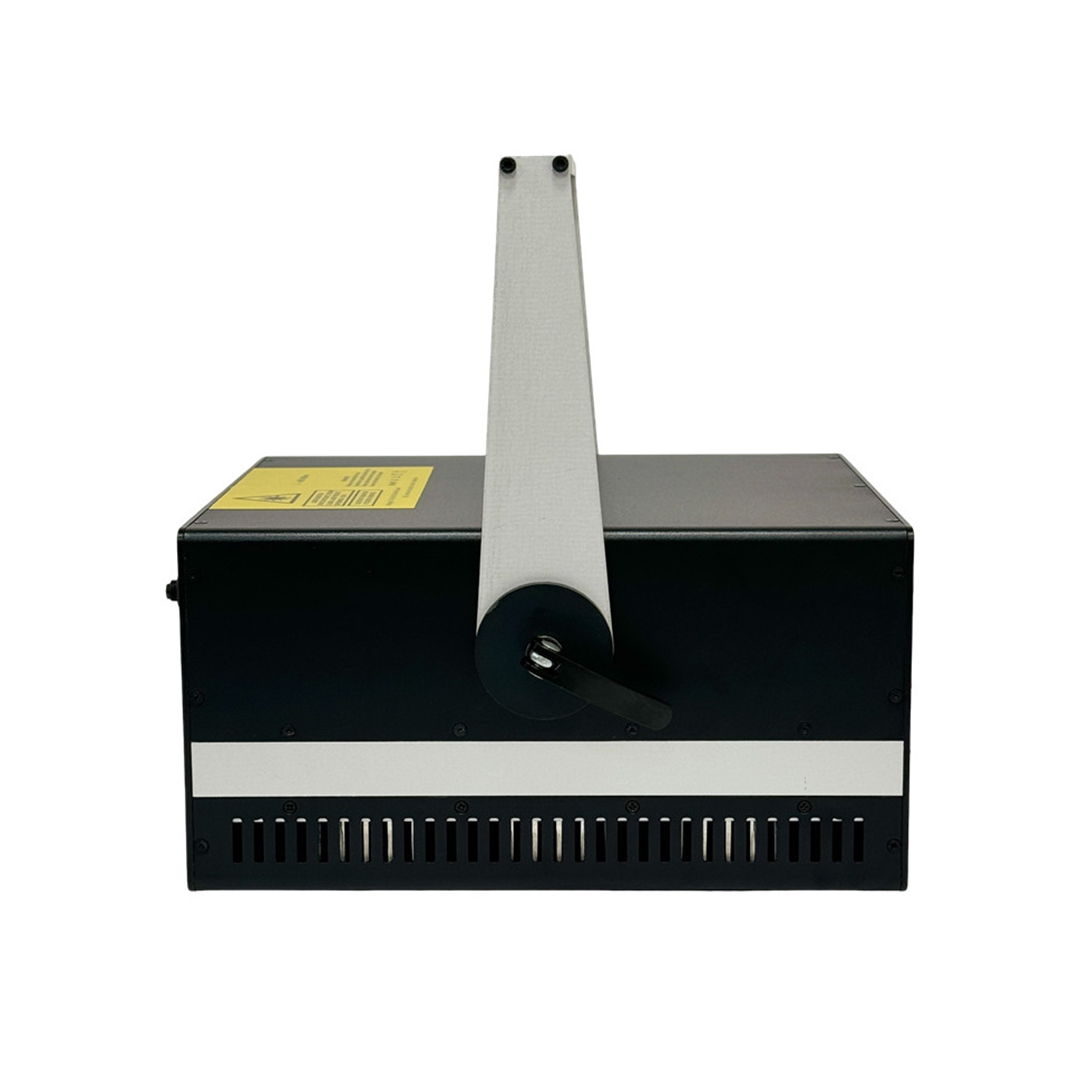

10W RGB Laser Light with full power and pure diodes

This laser light is equipped with a standard ILDA interface, utilizing a 40K high-speed scanning galvanometer, solid-state lasers with both TTL and analog modulation, a large-capacity program memory, and a powerful control system.
The laser colors are exceptionally pure, making it easy to create stunning laser shows through the popular ILDA interface and Pangolin laser show software.
The laser beam, emitted through a high-speed mechanical scanner, can transform a single beam into multiple beams. Under the control of a computerized optical system, it can create a variety of output patterns, achieving effects such as beam rotation and transformation, synchronized with music. It can also project text and graphics onto building facades or even clouds, serving as an effective advertising tool.
We can integrate the FB4 controller into the laser light. FB4 is a customizable OEM hardware device that can be configured in different ways to suit your needs as a client.

    Product parameters

    Model

    TM- RGB10

    Laser Power

    638nm

    520nm

    450nm



    3W

    3w

    4w

    Beam size

    5.5*4.4mm at aperture

    Divergence

    <1mrad full angle

    Scanner

    40kpps, ILDA@8°

    standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%

    Max scan angle

    60°, ±30° on both axis

    Function Panel

    Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT,

    ILDA IN/OUT,Power ON/OFF

    Laser safety features

    Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail,  mechanical beam shutter,

    Option: fast electromechanical shutter [reaction time <20ms],

    Control Mode

    ILDA, DMX, Auto, Sound Active, SD Card

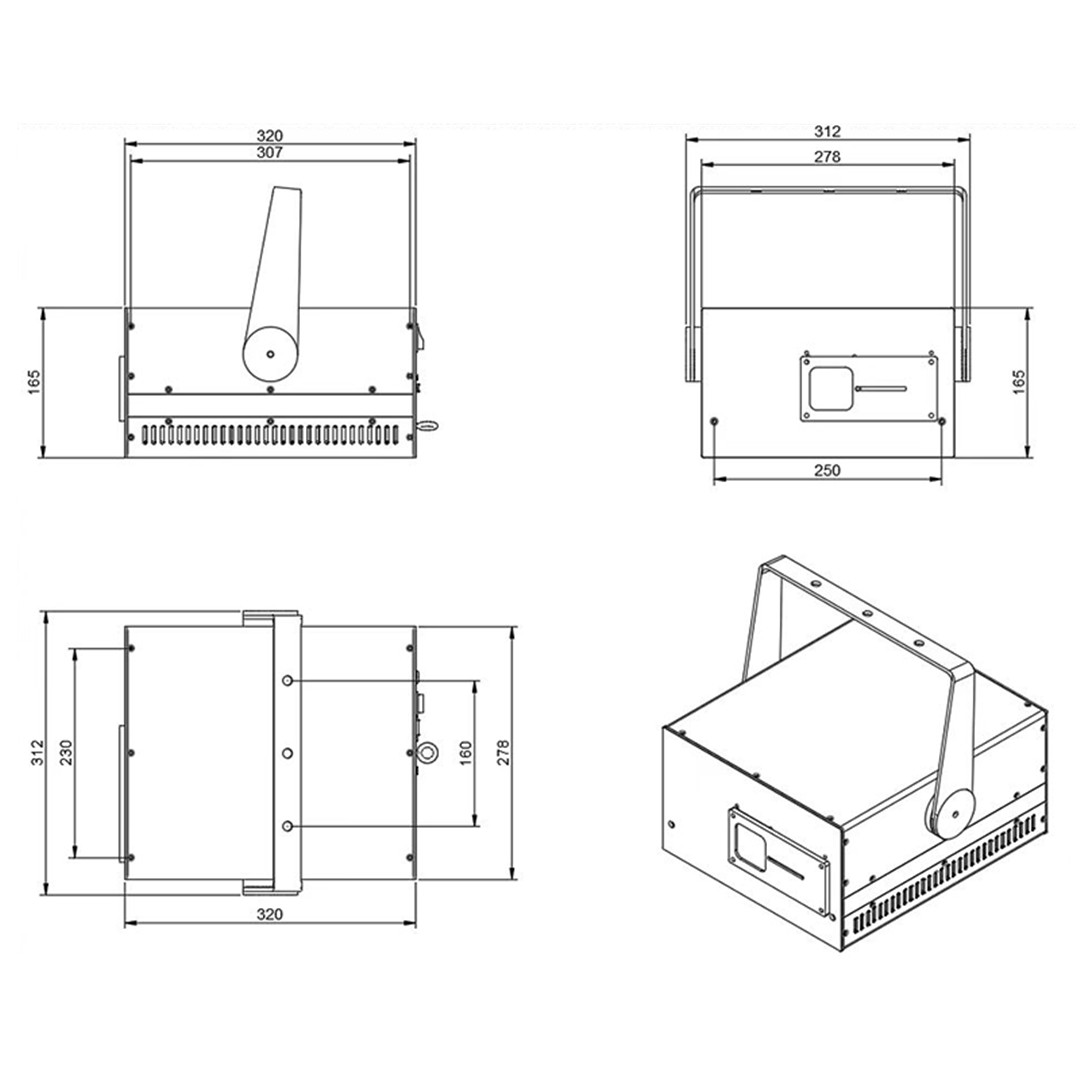

    Size

    L320*W312*H165mm

    Net Weight

    10kg

    Packing

    Carton/Pelicase/Flightcase

    Product features

    1. This colorful laser light boasts vivid colors, high brightness, long projection distance, easy control, dazzling effects, and a variety of patterns, creating a magical and dreamy appearance that easily captures attention.
    2. Utilizes internationally advanced Pangolin software, featuring a powerful library of laser graphic materials.
    3. The professional laser platform is dustproof, shockproof, and has excellent heat dissipation, ensuring stable performance.
    4. Can automatically produce various laser beams, patterns, and text synchronized with music rhythms.
    5. Offers the advantages of vibrant colors, high brightness, good directionality, long projection distance, and easy control.

    Product details

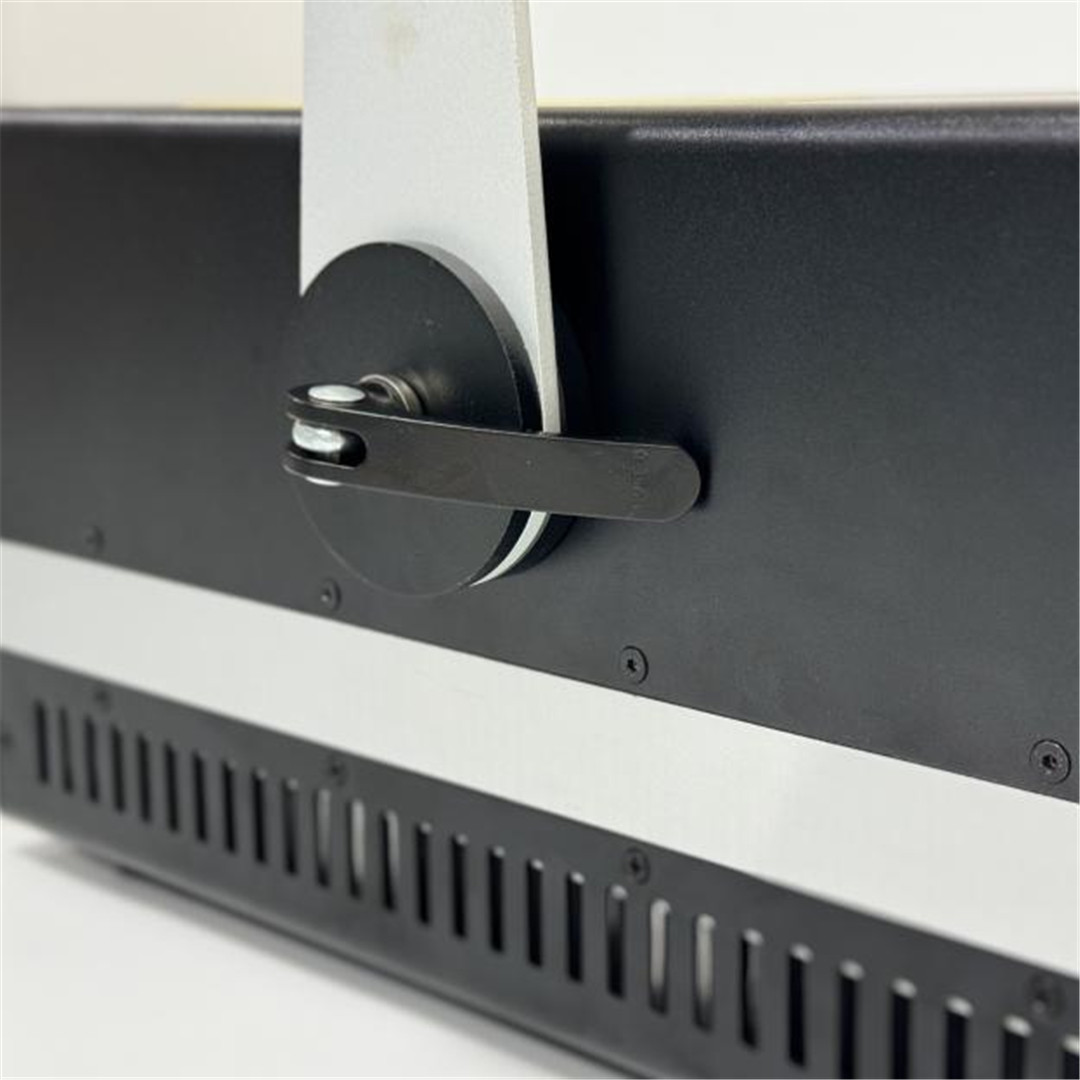

    10W RGB Laser Light with full power and pure diodes (7)o5r

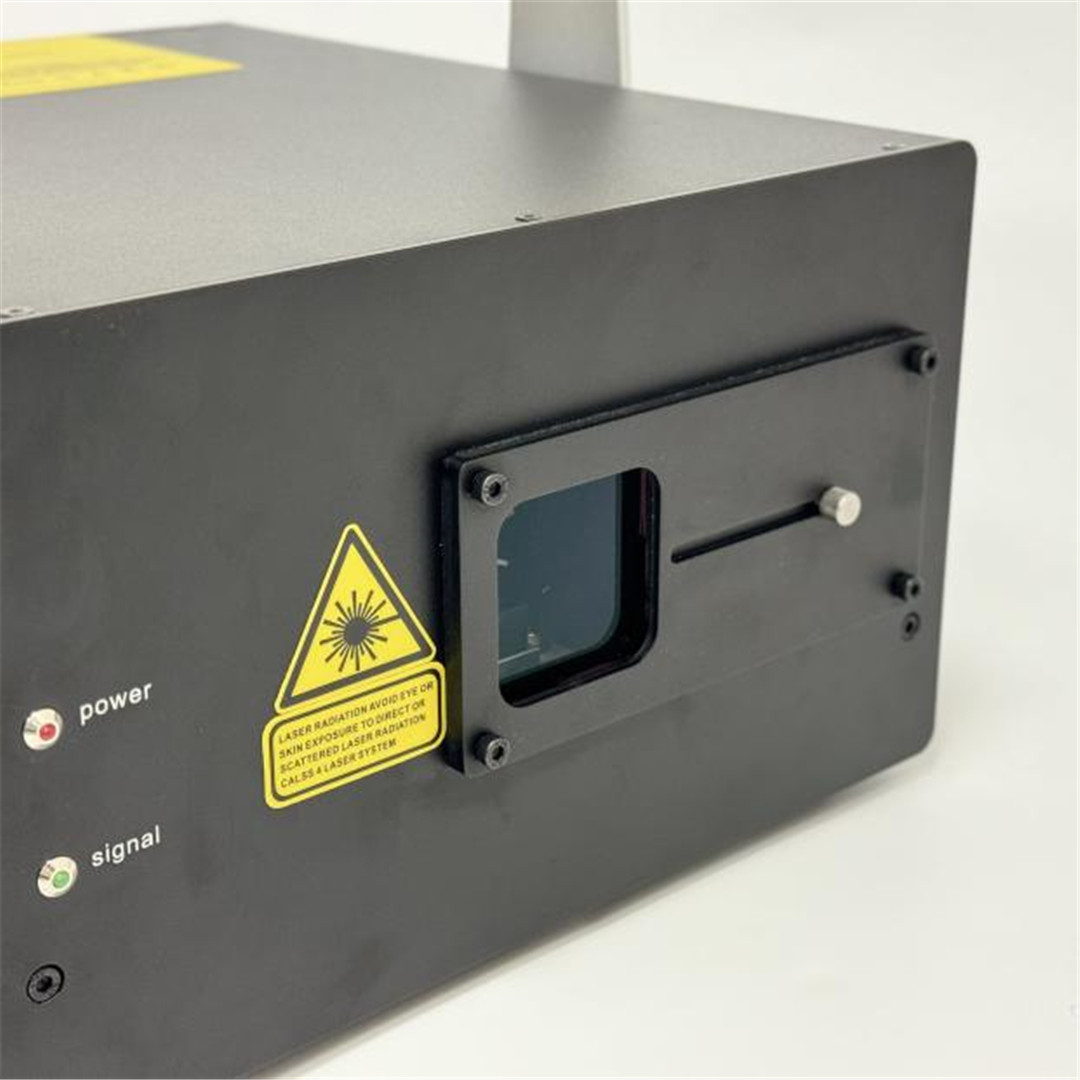

    10W RGB Laser Light with full power and pure diodes (8)g72

    application

    Wedding, KTV, Disco, DJ, Bars, rooftops, squares, parks, tourist attractions, , concerts, and small to medium-sized events, and various other venues
    concerts and musical performances, cultural art exhibitions, trade shows

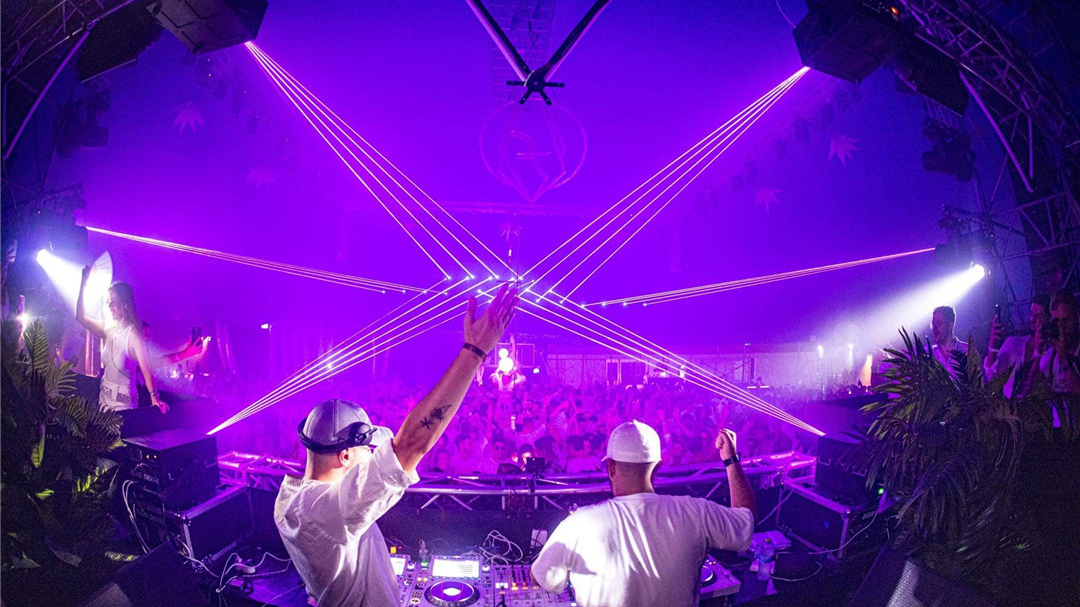

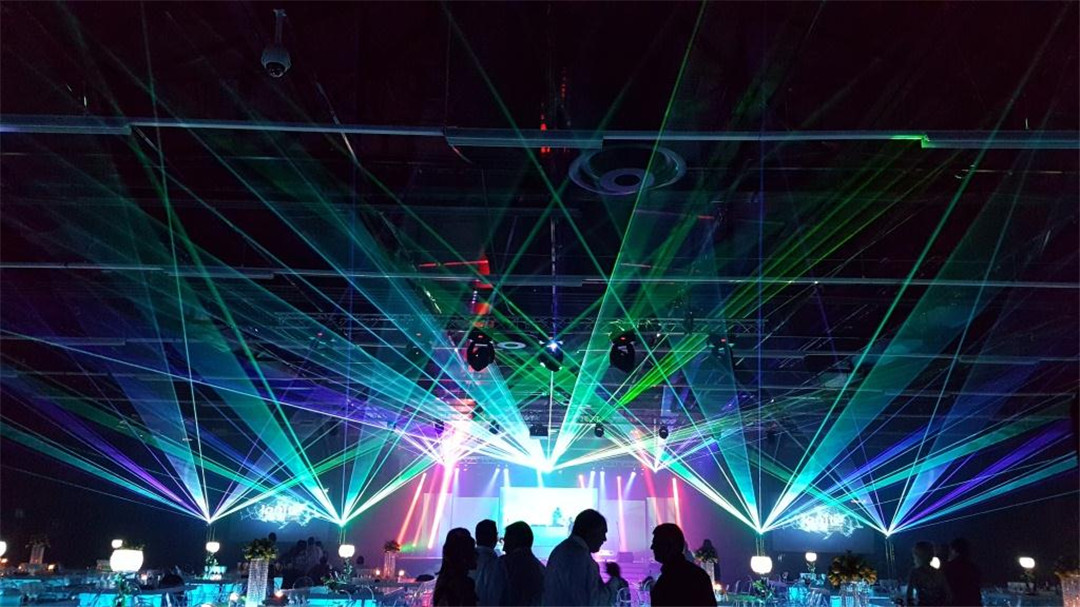

    Application Effect

    10W RGB Laser Light with full power and pure diodes (10)zst
    10W RGB Laser Light with full power and pure diodes (11)rj3
    10W RGB Laser Light with full power and pure diodes (12)l8g
    10W RGB Laser Light with full power and pure diodes (13)5hp
