Moving Head Laser Light

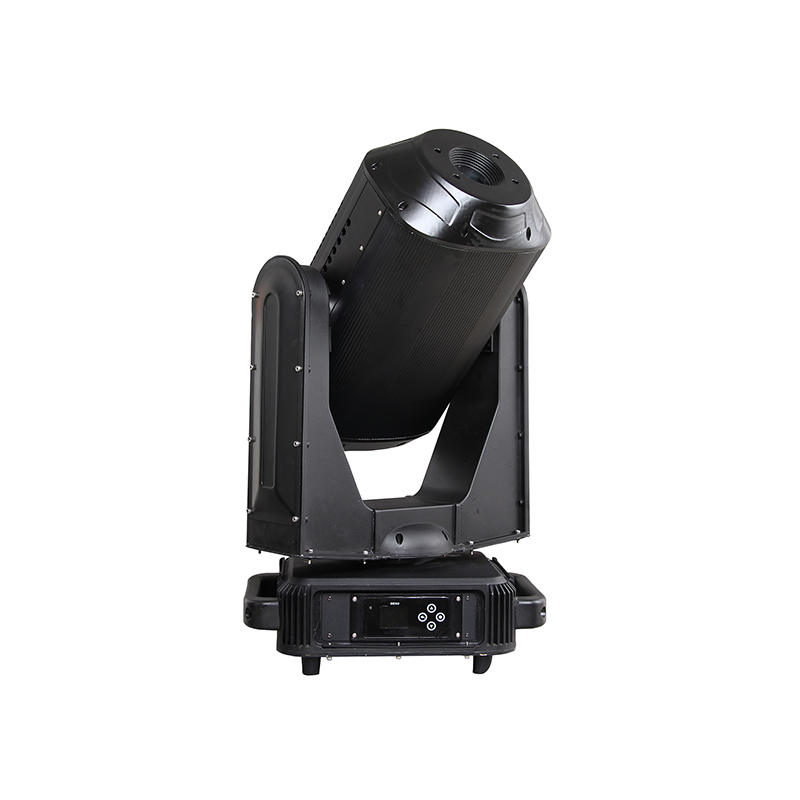

10W RGB Moving Head laser light with 40Kpps scanner
Compared to conventional laser lights, moving head laser lights are laser projectors with automatic movement capabilities. These devices are equipped with precision servo motors and advanced control systems, enabling high-speed and precise pan and tilt movements both horizontally and vertically, allowing for 360-degree full coverage and providing flexible and varied lighting effects to create a rich and colorful lighting display.
Equipped with 40kpps high-speed scanning mirrors, capable of precise and rapid pattern projection and animation effects, suitable for complex laser shows.
Supports ILDA interface, allowing for complex pattern and animation programming via computer software, achieving highly customized laser performances.
Supports SD card automatic playback and various control protocols, such as DMX512, making it easy to set up and operate, suitable for different scales and types of performances.
Features TTL and analog modulation functions, allowing for precise control of laser brightness and color changes, achieving dynamic lighting effects. The digital driver technology ensures brightness adjustment without color deviation, providing consistent color performance.
Product parameters
| Model |
TM-RGB06-MH |
TM-RGB10-MH |
TM-RGB12-MH |
| Laser Power |
6W RGB |
10W RGB |
12W RGB |
| Red 638nm |
1.5w |
3w |
4w |
| Green 520nm |
1.6w |
3w |
4w |
| Blue 450nm |
3w |
4w |
4w |
| Beam szie | 5.5mm at aperture | ||
| Divergence | <1.2mrad | ||
| Scanner | 40kpps, Max scan angle 60°， ±30° | ||
| Control Mode | ILDA, DMX512,auto, sound, master-slave,SD card | ||
| Moving Style | X: 540° (16 bit precision scan) Y: 270° (16 bit precision scan) | ||
| Net Weight | 21kg | ||
| Packing | Carton/Flightcase | ||
Product features
1.Utilizes advanced beam shaping technology and fiber-coupled diode design to ensure efficient and stable laser output, with features of long service life and low power consumption.
2.Complies with EU standards and is equipped with safety features like the Scan-fail safety system, remote control, and single-point scan failure protection.
3. Produces a very noticeable beam effect even at long distances.
4.Ensures uniform and consistent brightness and spot quality for more refined animations and patterns.
5.Equipped with a TEC cooling system to ensure the laser operates at optimal temperatures.
6.Offers multiple configuration options, allowing you to customize the laser power and chassis design according to your needs.
7.Designed to be dustproof, shockproof, with good heat dissipation, ensuring stable performance.

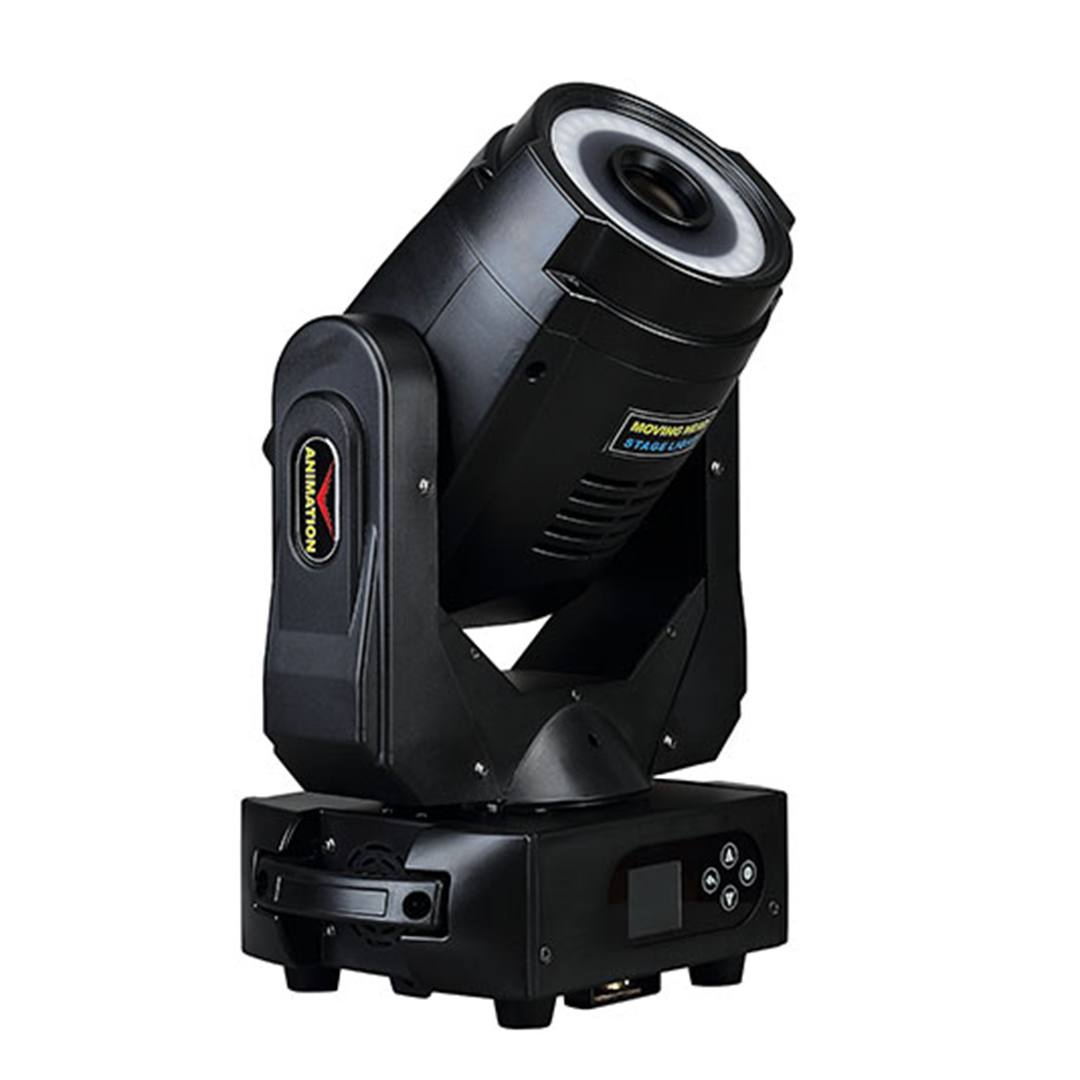

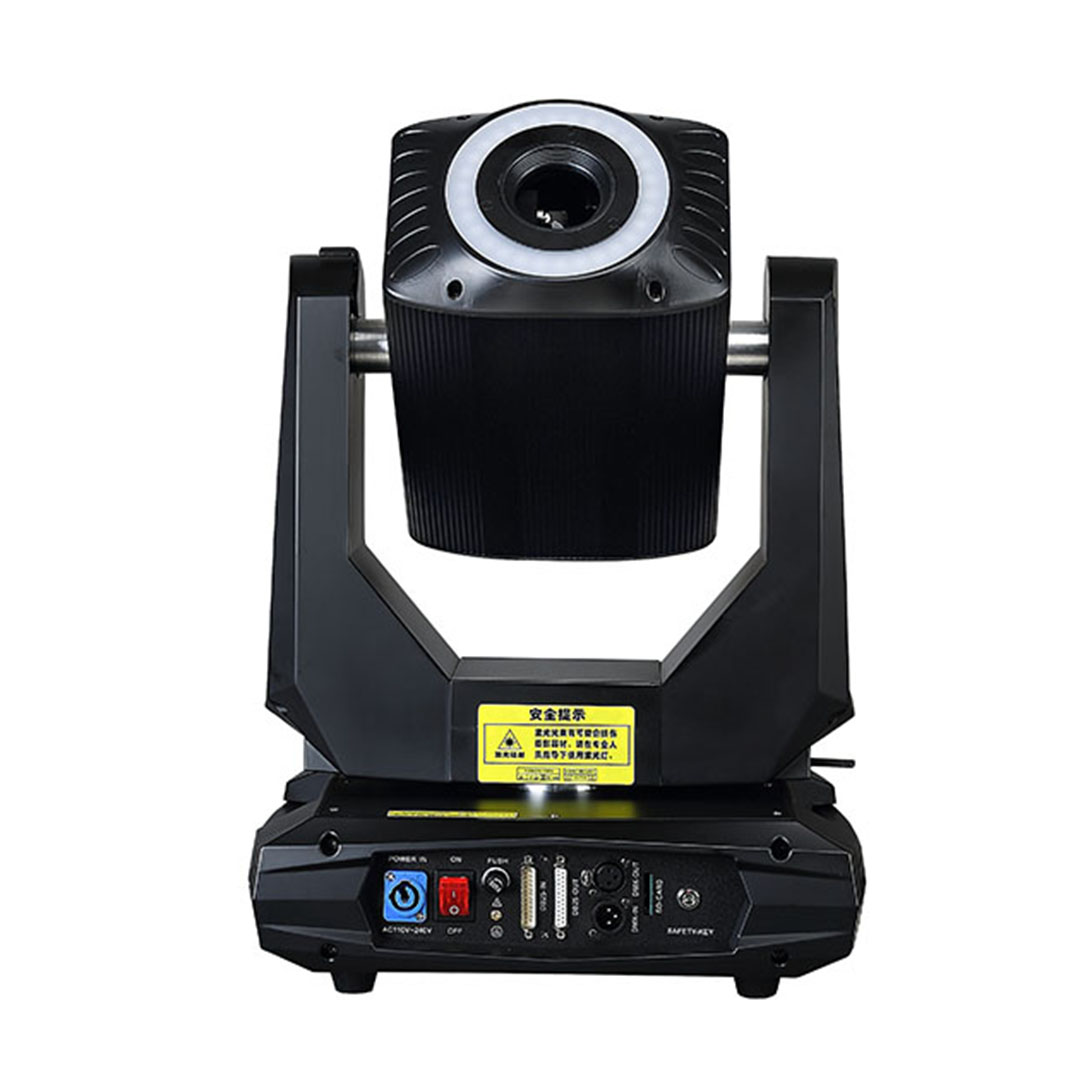

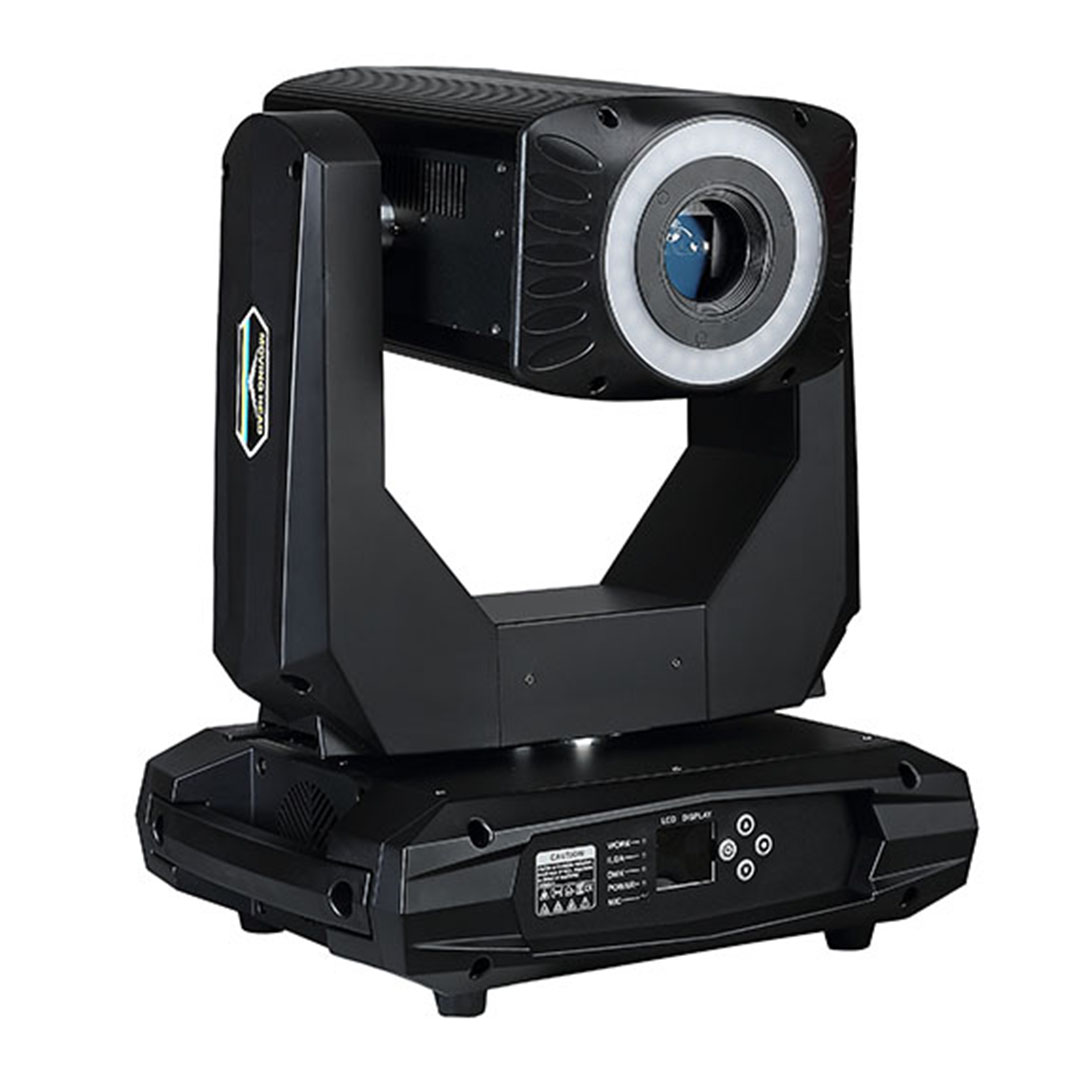

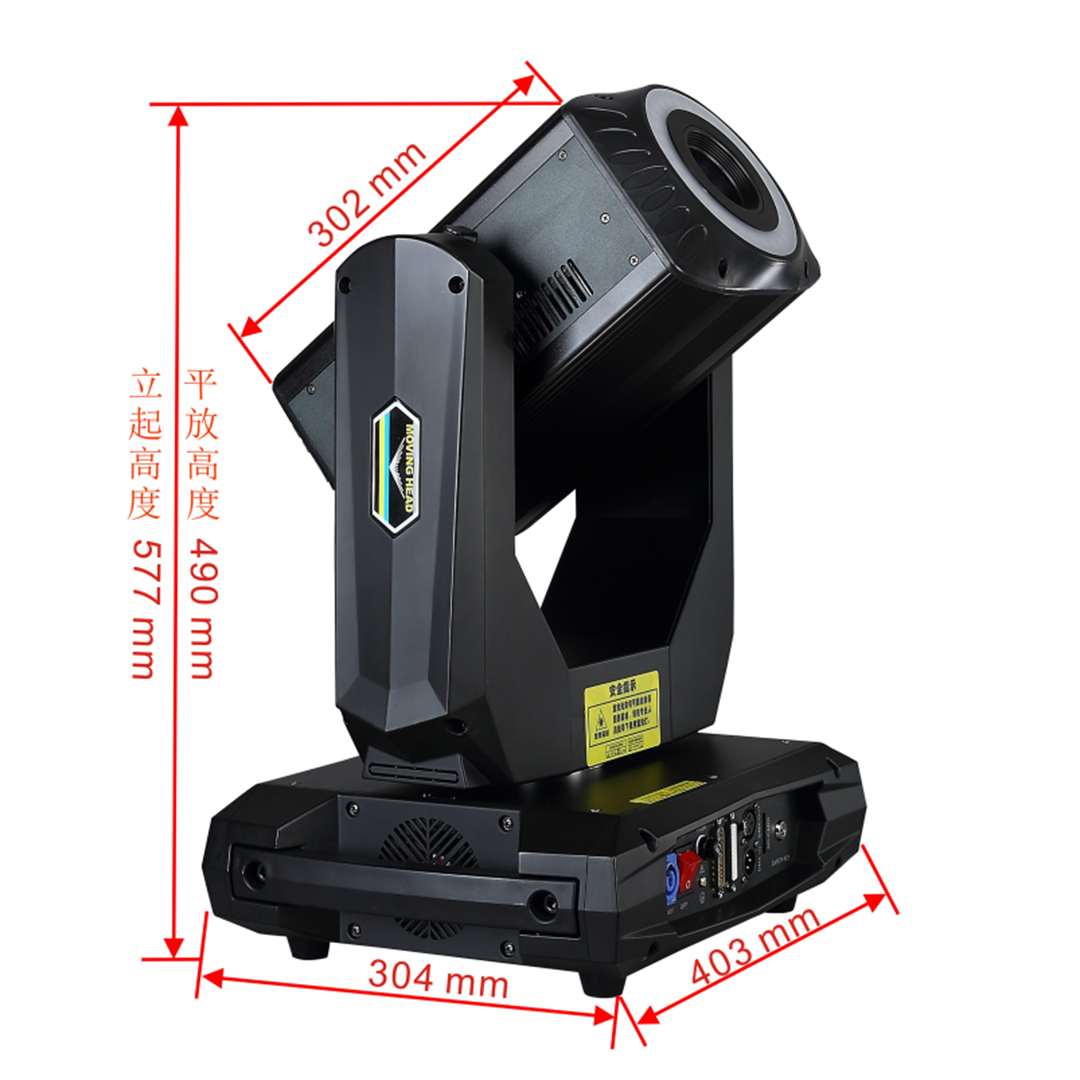

Product details

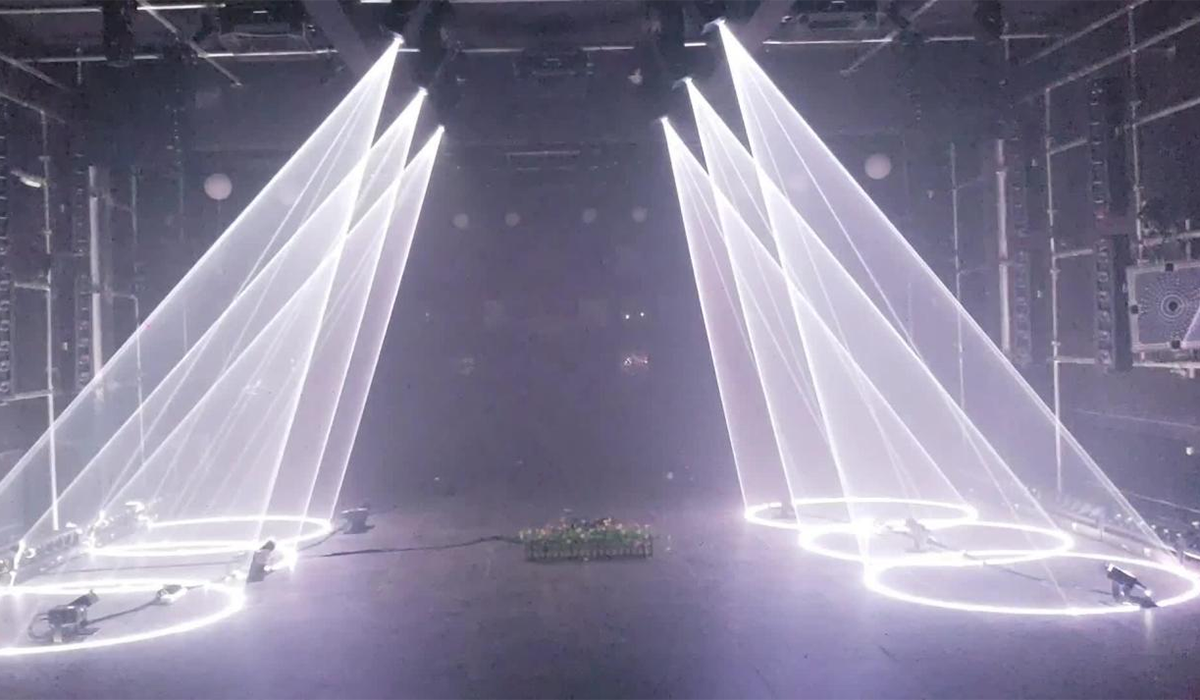

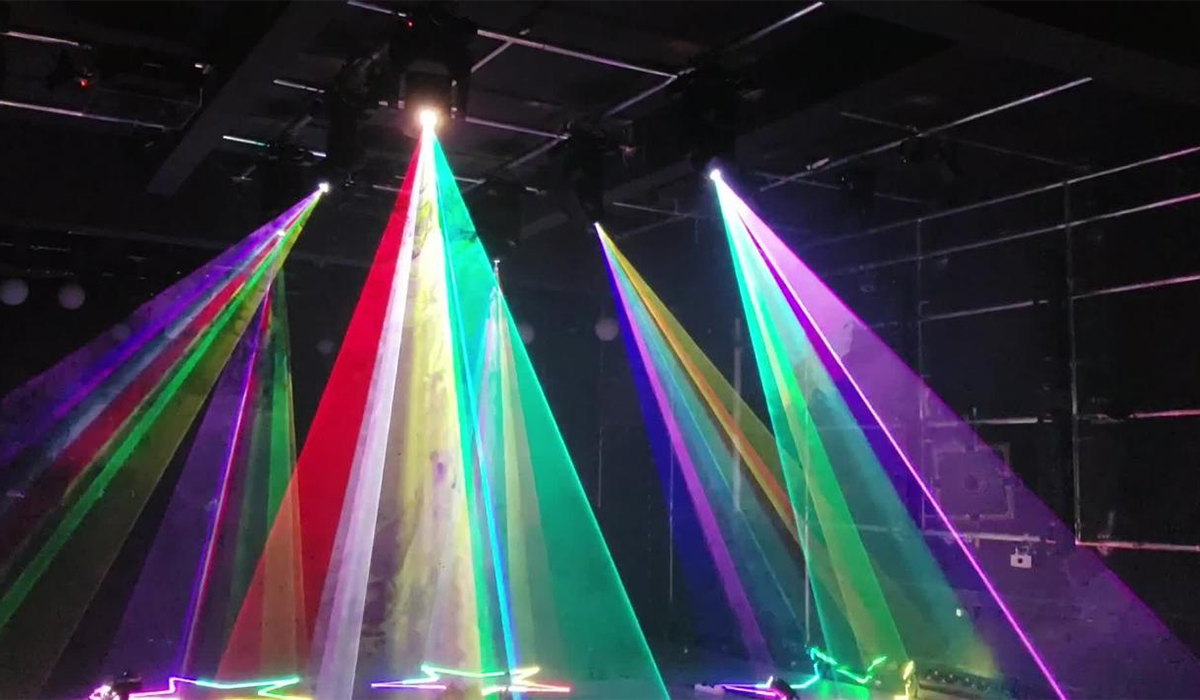

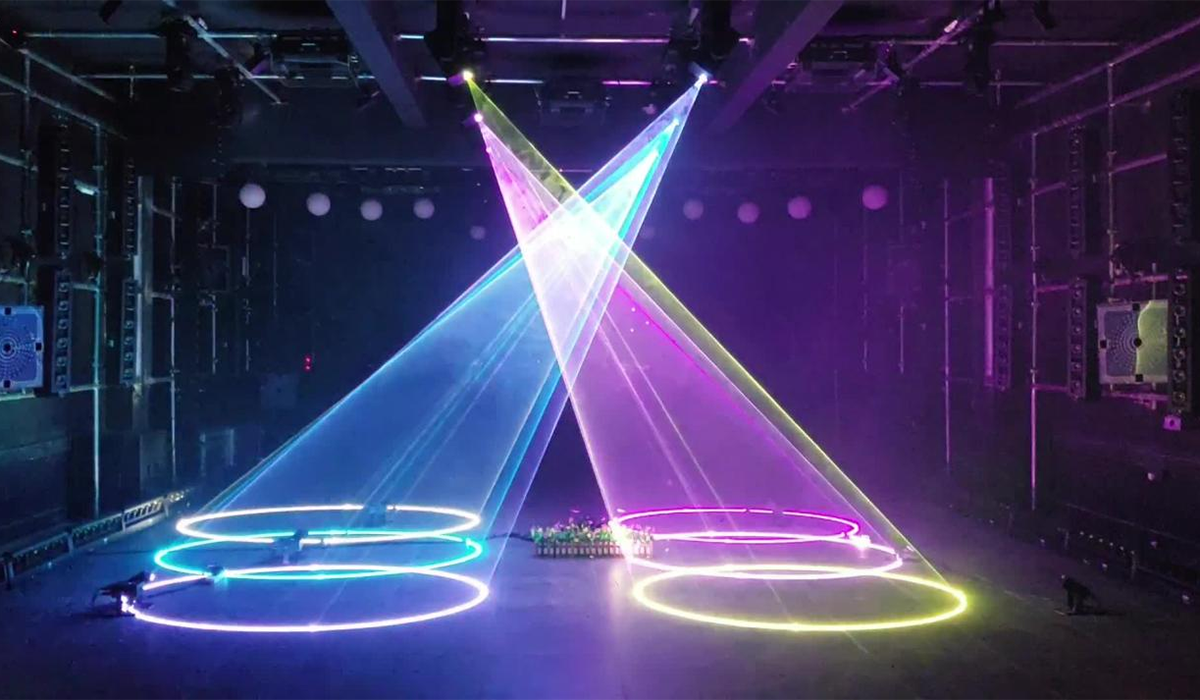

Application Effect
