RGB Laser Module

22W RGB Laser Module with 100Khz Analogue modulation

The Tmaxlaser 22W RGB laser combines the latest technology with our extensive manufacturing experience to deliver unparalleled visual impact. As the ideal choice for high-end stage performances and laser shows, this laser stands out with its exceptional brightness, color richness, and stability, making it an indispensable tool for light and shadow artistry.

Product parameters

Wavalength	638nm	525nm	450nm
Power	6w	6w	8w
Beam Size	6.5*7mm
Divergence	<1mrad, full angle
Modulation	0-5V Analogue Modulation
Cooling	TEC

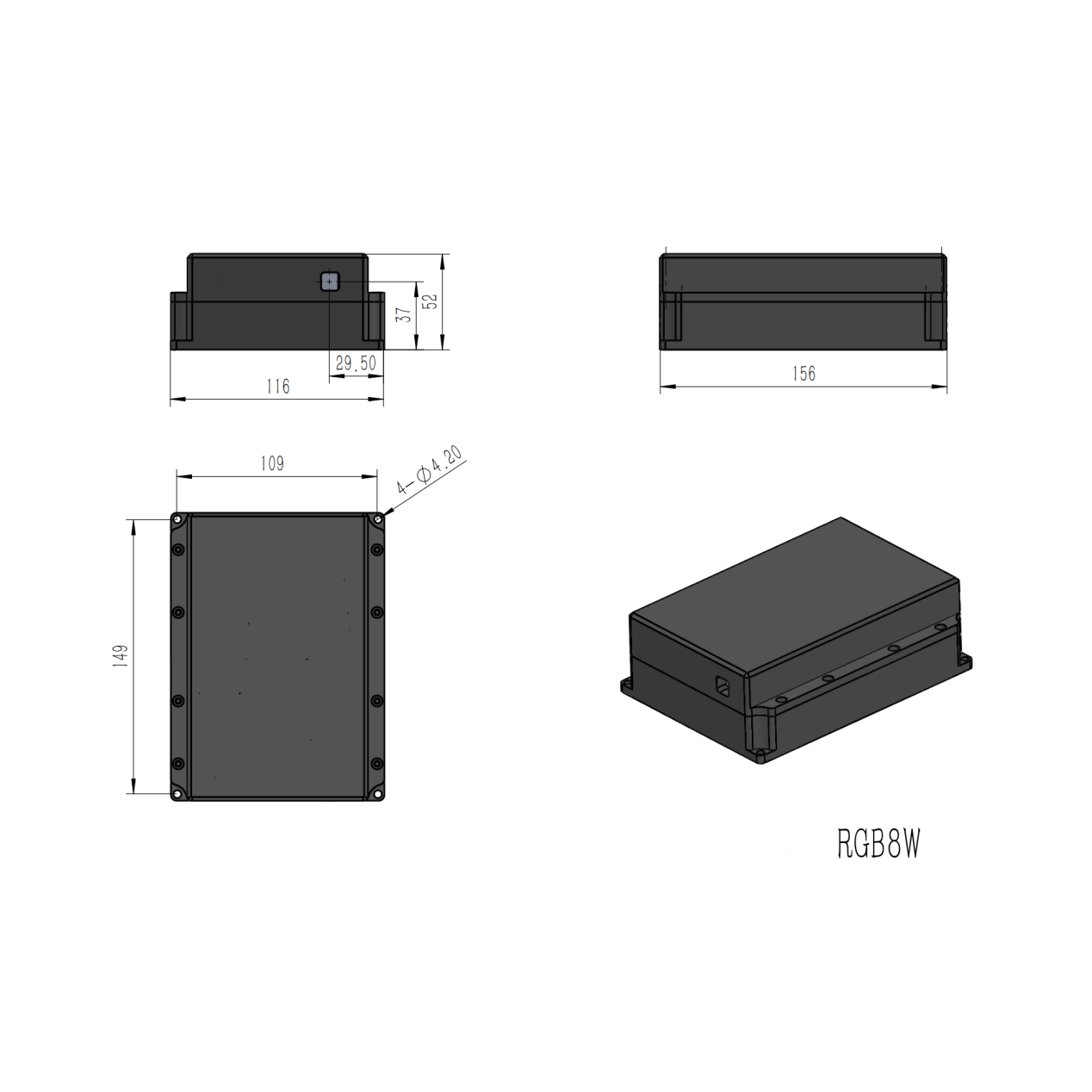

Laser Head Size （LWH) (mm)	21613850
Output Height (mm)	37
Working Temperature	-20°/ +50°
Lifespan	10000 hours
Warranty	2 years

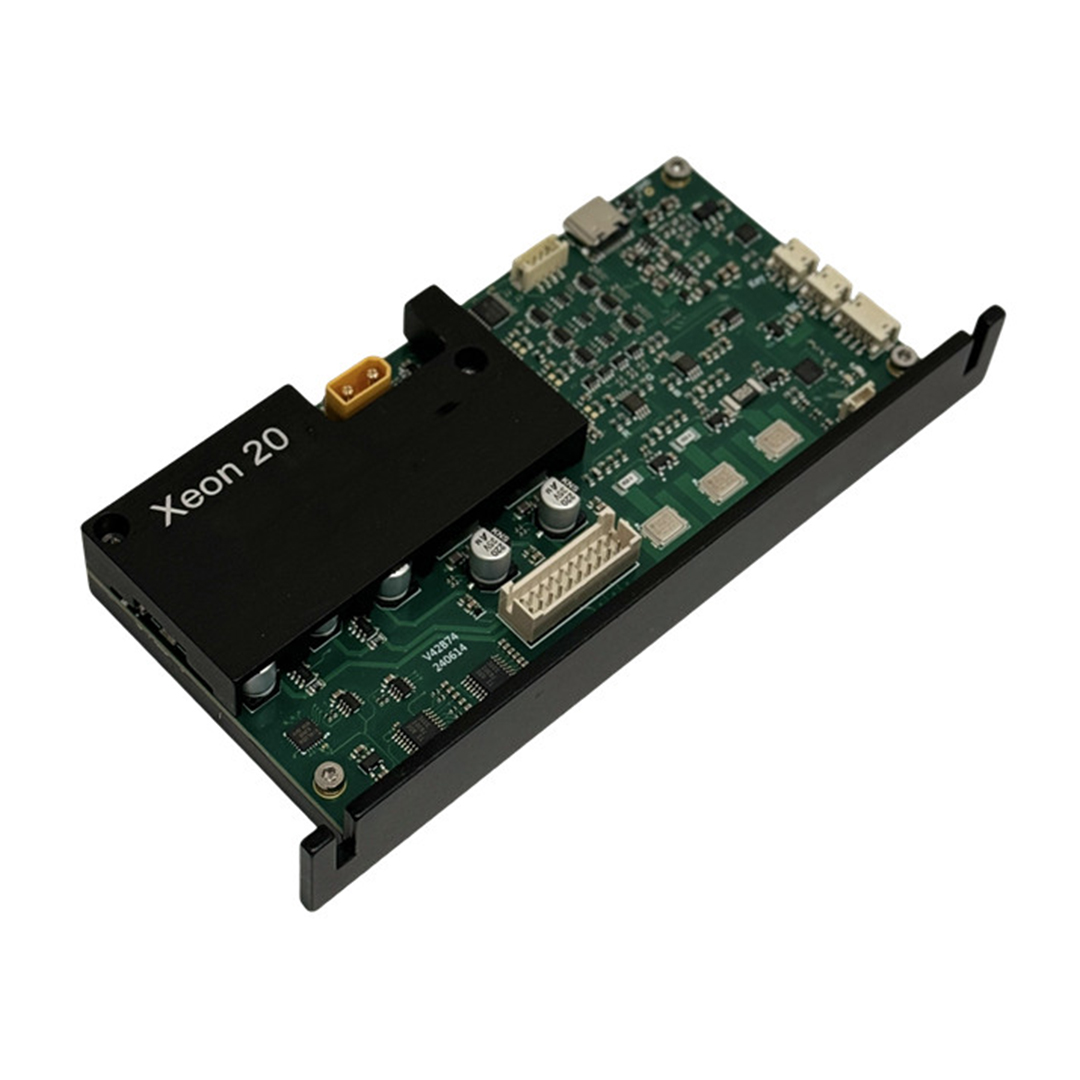

Digital drivers can be selected Half Fiber Diodes or Full Fiber Diodes can be selected

Product features

1. Premium Laser Diodes
Utilizes pure diodes, ensuring long lifespan and stable operation.
Optional full-fiber-coupled diodes are available, offering extremely small beam spot sizes and divergence angles for higher brightness and more focused beams.
2. Exceptional Performance
Provides superior brightness, color depth, and stability, making it perfect for high-end applications and sophisticated visual effects.
3. Advanced Technology and Expertise
Leveraging the latest technological advancements and our rich production experience to ensure top quality and reliability.
4. Precision Design
Features a well-engineered design for optimal performance, with excellent heat dissipation and stable beam combining
