20W RGB Laser projector with Divergence1mrad DT 50B scanner for outdoor laser shows

The laser light has a power output of 22W RGB, using brand-new original laser diodes from renowned brands: Mitsubishi for red, Nichia for green, and Osram for blue.
All diodes are fiber-coupled, producing nearly circular beam spots with small spot sizes, low divergence angles, long projection distances, high brightness, and clean, clear beams, making them ideal for users with high-quality requirements.
This product features a high-speed scanning galvanometer with 35kpps ILDA @8°, a maximum scanning angle of ±30°, input signal of ±5V, and linear distortion of less than 2%.

product details

product description

Product parameters

The laser modulation signal is analog, with a beam output diameter of 5mm and a divergence angle of less than 1mrad.

If your performance primarily involves animation laser shows, this fine-spot laser light should be your top choice.

Control modes include Auto, Master-Slave, DMX512, Art-Net, and compatibility with ILDA standard computer laser software.

The control interfaces are international ILDA DB25, universal DMX512, and Art-Net network interfaces, compatible with software such as Phoenix from Germany and Pangolin from the USA.

The rear panel of the machine features a waterproof LCD touch screen with menu functions for work mode, address code device, language settings, main settings (including X/Y inversion, horizontal movement, color, brightness, etc.), and more.

In terms of safety and intelligent protection, we have installed a mechanical shutter, remote lock, no-signal beam cutoff, and automatic switching between DMX and PC signals.

Model	TM- RGB22
Laser Power	22W In Total
	638nm	525nm	450nm
	6W	6W	8W
Beam size	6.5*6.2mm at aperture
Divergence	<1.2mrad full angle
Scanner	35kpps ILDA @8° standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%
Max scan angle	60°， ±30° on both axis
Function Panel	Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT, ILDA IN/OUT,Power ON/OFF
Laser safety features	Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail, mechanical beam shutter, Option: fast electromechanical shutter [reaction time <20ms],
Control Mode	ILDA, DMX, Auto, Sound Active, SD Card
Size	L370W340H22.5mm
Net Weight	21.2kg
Packing	Carton/Flightcase

Product features

1. Integrated Laser: Utilizes our company's integrated laser, with a rational spatial layout and meticulous duct design, providing ample cooling channels between components.

2. Vibration Resistance: Mechanical parts employ special fastening techniques, offering strong resistance to vibration and impact.

3. Optimized Circuitry: Circuit wiring is fully optimized for strong anti-interference capability and stable light paths.

4. Precision Structure Design**: Features precise and rational structural design, made with the best materials for stability and an aesthetically pleasing appearance.

5. Digital Control: Laser effects and signals are fully digital, controlled by a professional laser control system, capable of producing unique spatial beam effects and beam interference phenomena.

6. Protection Systems: Equipped with a power-off protection device, temperature control, and other effective sealing systems.

7. Long Viewing Distance: With power above 10 watts, a single beam can reach distances of over 2 kilometers.

Product details

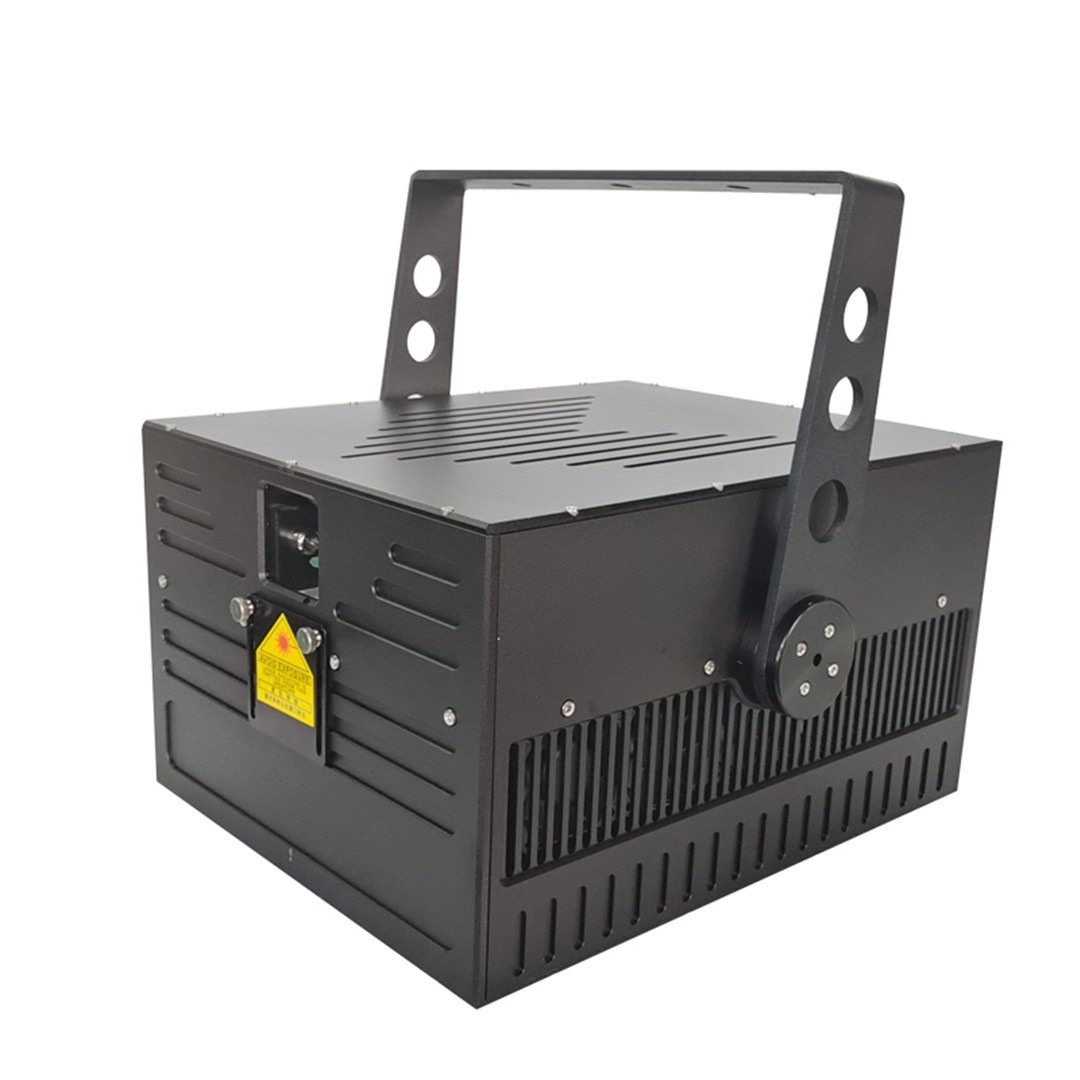

20W RGB Laser projector with Divergence1mrad DT 50B scanner for outdoor laser shows (1)q5i

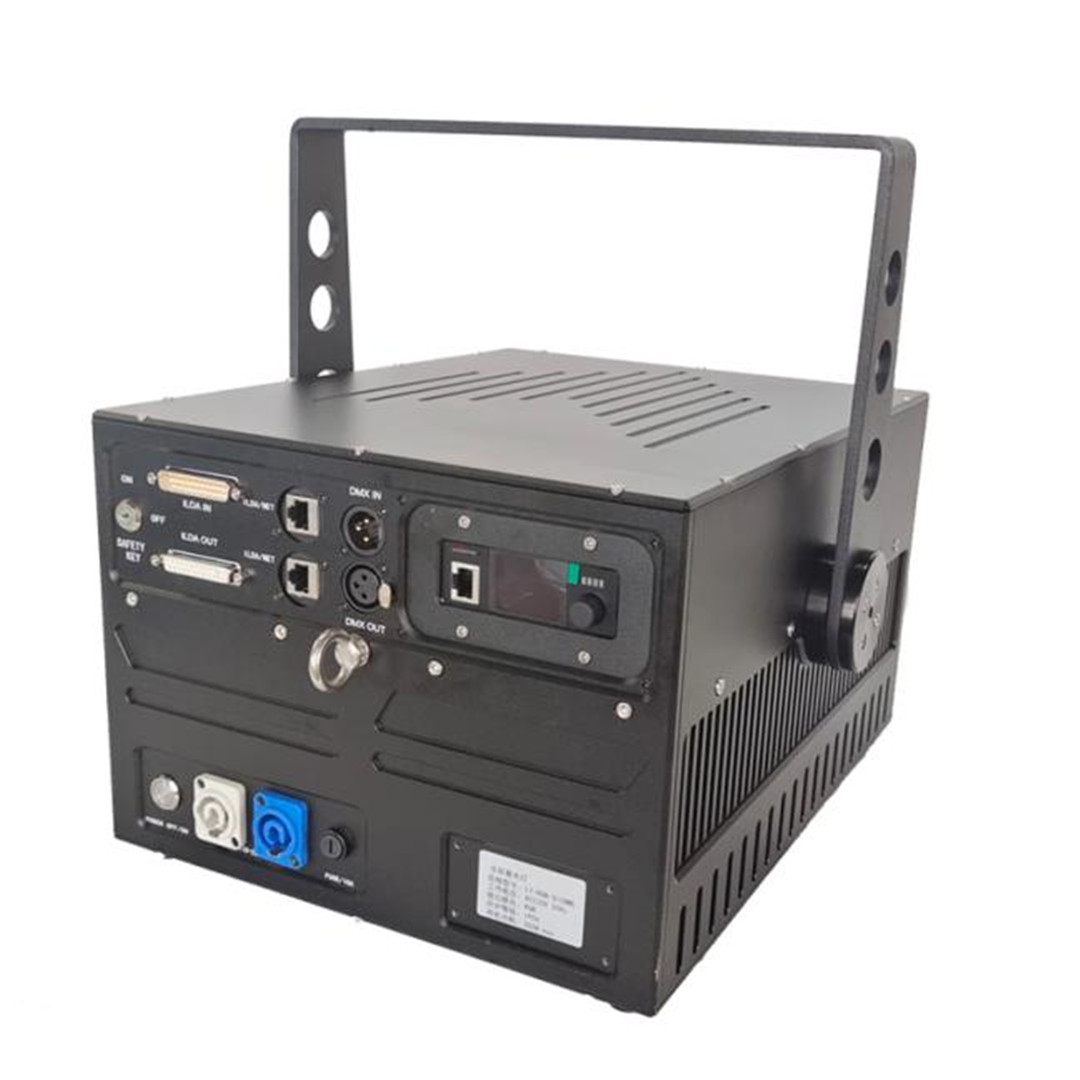

20W RGB Laser projector with Divergence1mrad DT 50B scanner for outdoor laser shows (2)8f5

application

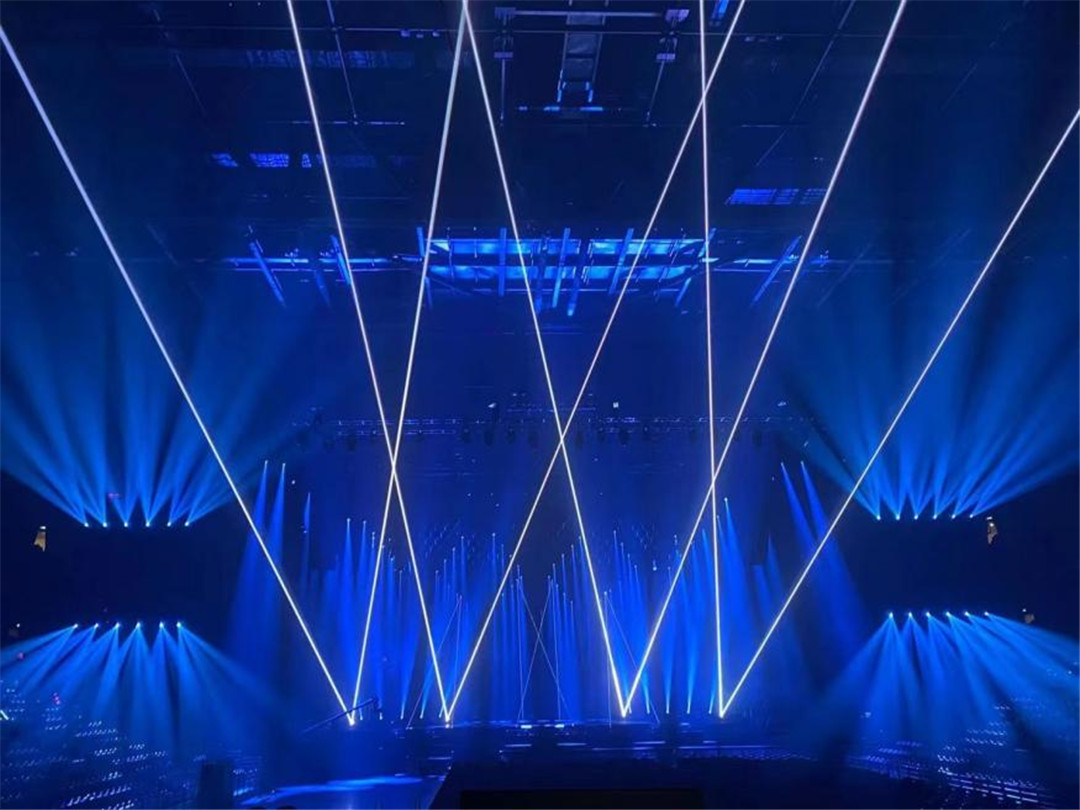

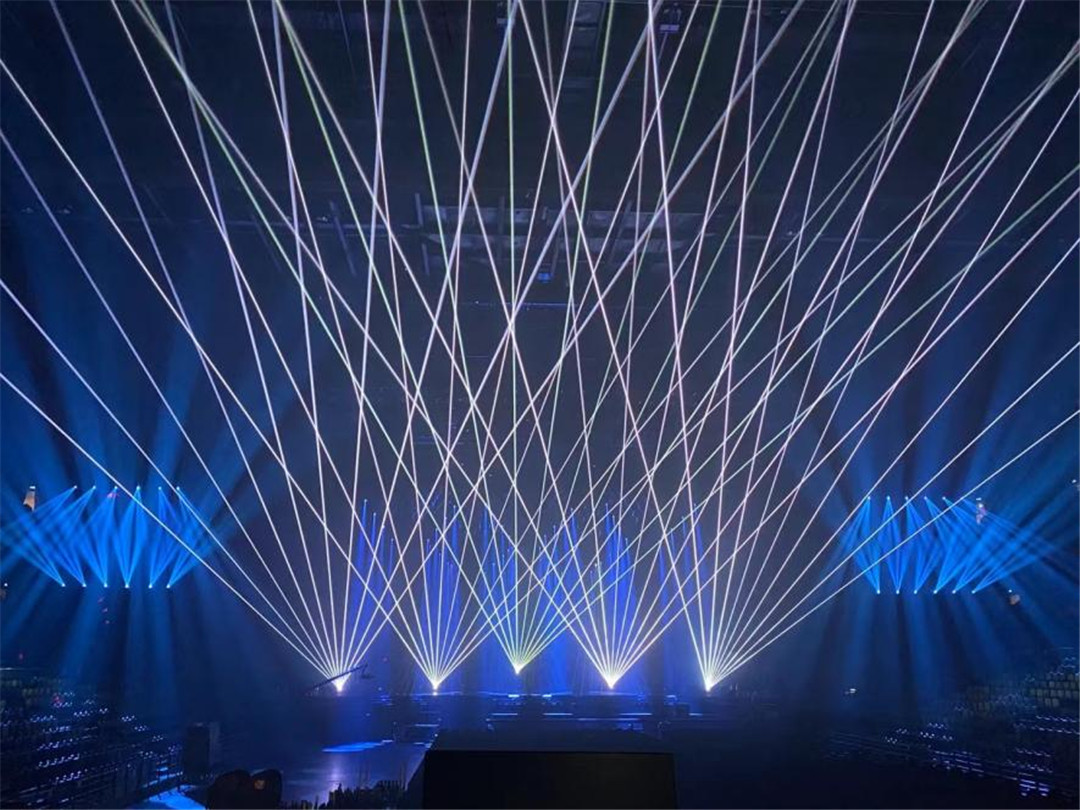

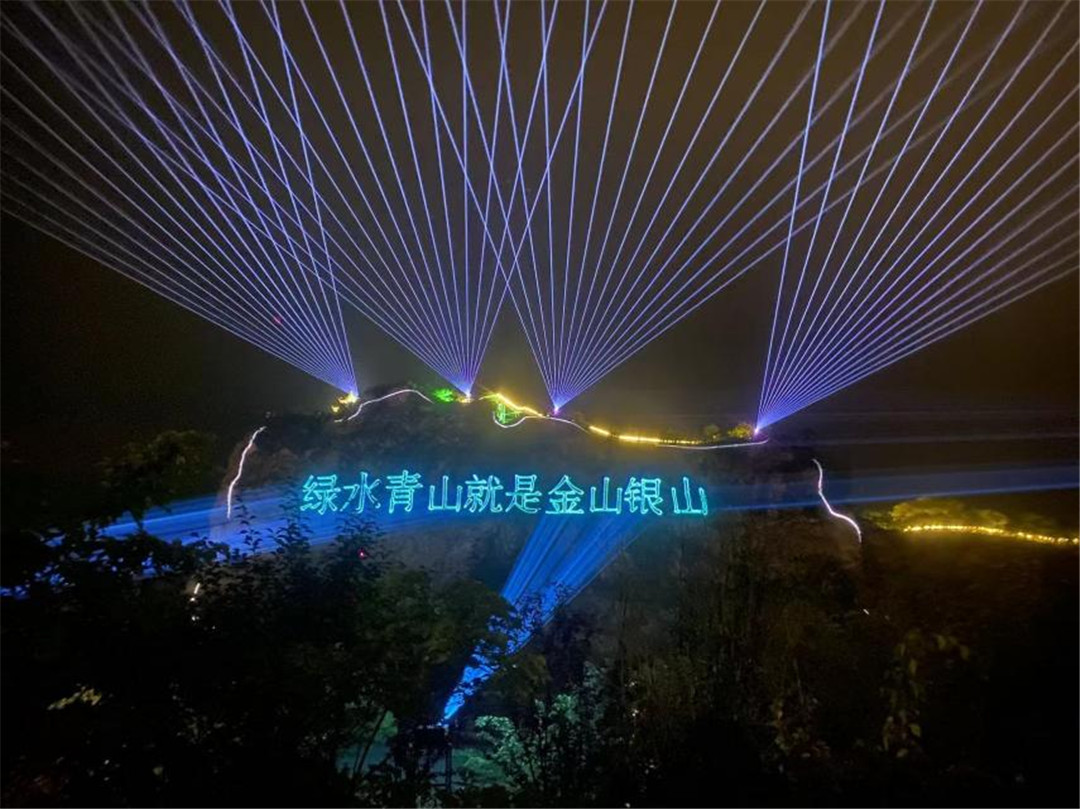

Stage performances, opening ceremonies, sports events, concerts, music halls, studios, landmark buildings, cultural tourism lighting, banquet halls, weddings and wedding banquets, landscape lighting, and various other scenes.
