RGB Laser Module

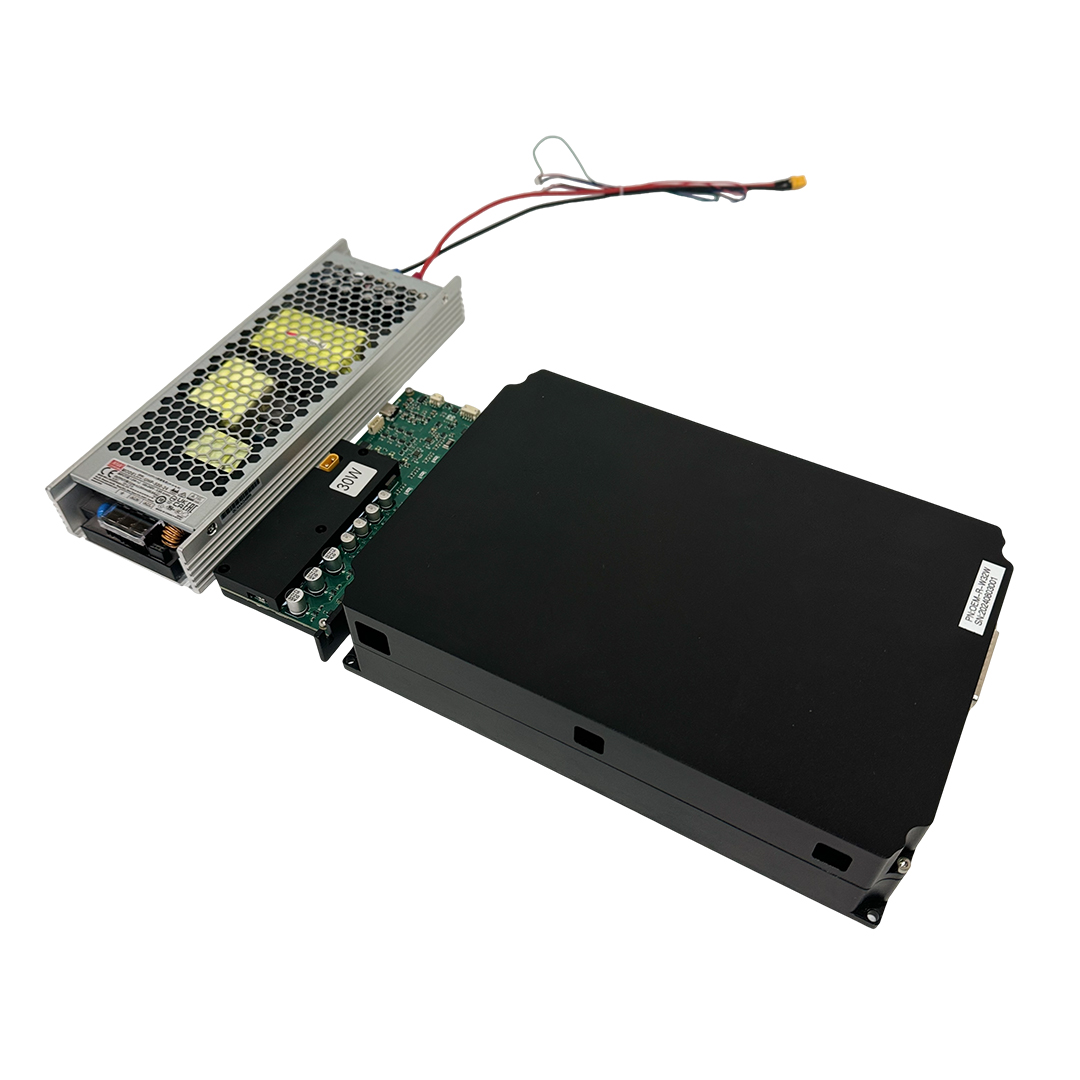

32W RGB Laser Module with Digital Driver

The Tmaxlaser 32W RGB laser, with its powerful output and advanced technology, delivers an unparalleled visual experience for stage performances and laser shows. This laser combines top-tier laser diodes, precision craftsmanship, and exceptional stability, making it an excellent choice for high-end productions and large-scale events.

Product parameters

Wavalength	638nm	525nm	450nm
Power	10w	10w	12w
Beam Size	7.5*7.6mm
Divergence	<1mrad, full angle
Modulation	0-5V Analogue Modulation
Cooling	TEC

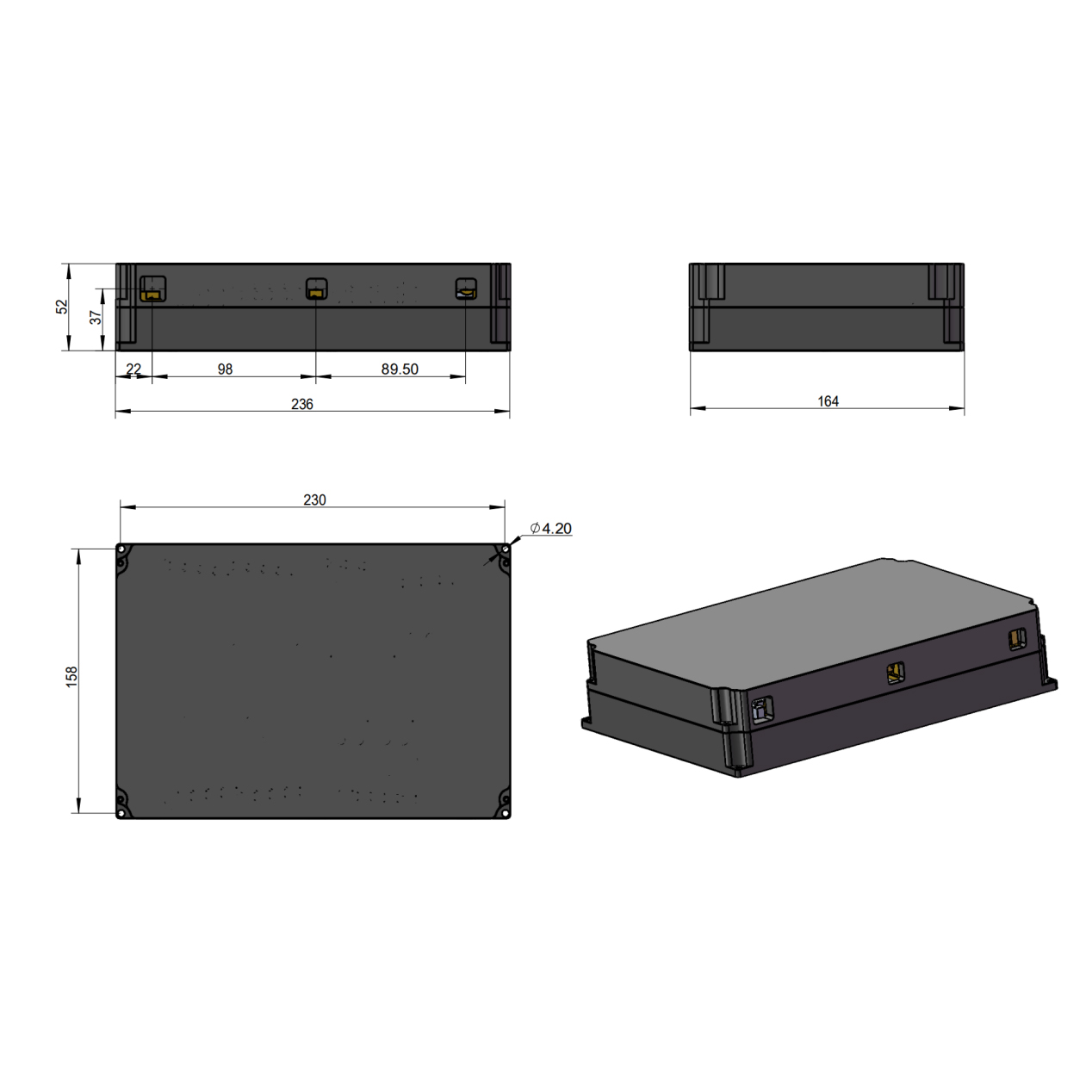

Laser Head Size （LWH) (mm)	23616452
Output Height (mm)	37
Working Temperature	-20°/ +50°
Lifespan	10000 hours
Warranty	2 years
Digital drivers can be selected Half Fiber Diodes or Full Fiber Diodes can be selected

Product features

1. Premium Laser Diodes
Utilizes pure diodes with TEC cooling, ensuring long lifespan, stable operation, and excellent color consistency.
2. Superior Performance
Balanced power ratio for pure white light and rich, delicate colors.
Optional full-fiber-coupled diodes are available, providing extremely small beam spot sizes and divergence angles for higher brightness and more focused beams.
3. Advanced Technology and Craftsmanship
Incorporates cutting-edge technology and precise manufacturing to offer exceptional performance and reliability.
4. Precision Design
Engineered with a well-balanced power distribution, optimal cooling, and stable beam combining for superior visual effects.
