RGB Laser Lights

30w Rgb Laser Projector With The Newest Digital Driver For Outdoor Laser Shows

The laser power reaches 32W RGB, utilizing original brand-new laser diodes: Mitsubishi for red light, Nichia for green light, and Osram for blue light.
All diodes are fiber-coupled. Due to our latest breakthrough in beam shaping technology, all models now achieve nearly circular beam shapes. Additionally, all beams perfectly match in shape, size, and divergence, ensuring all mixed colors are clear and clean without any halo effect,
the beam size is smaller, divergence angle is reduced, resulting in cleaner and clearer beams. This means our lasers can produce tremendous brightness and project over longer distances, especially suitable for users demanding high quality. Particularly for users focused on laser shows with animations, our lasers with fine beams should be your first choice.

This laser light comes with a standard ILDA interface, uses ILDA40K high-speed scanning mirrors, TTL and analog modulation solid-state lasers, and a powerful control system with a large-capacity program storage. Through the popular ILDA interface and Pangolin laser show software, magnificent laser performances become effortlessly controllable. The laser beam passes through high-speed mechanical scanners, transforming single beams into multiple beams. Controlled by a computer optical system, it produces a variety of output patterns, allowing for multi-beam flipping and transformations synchronized with music.
Additionally, we have equipped the latest developed digital drivers. With the latest digital drivers, you can achieve minimum 1% brightness adjustment and adjust brightness from 1% to 100% without color deviation, ensuring good linearity.

Product parameters

Model	TM- RGB32
Laser Power	32W In Total
	638nm	525nm	450nm
	10W	10W	12W
Beam size	7.5*7.6mm at aperture
Divergence	<1.2mrad full angle
Scanner	35kpps ILDA @8° standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%
Max scan angle	60°， ±30° on both axis

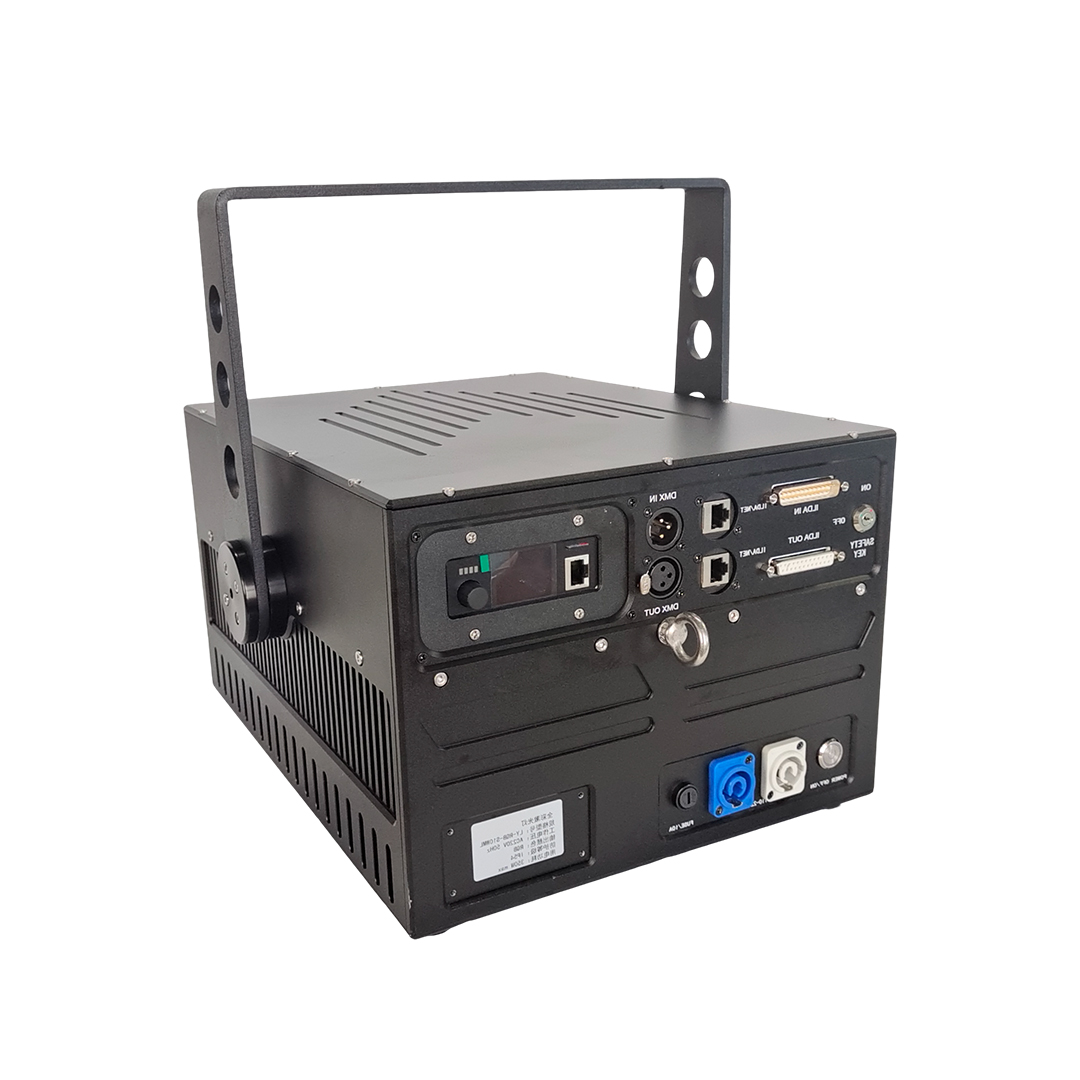

Function Panel	Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT, ILDA IN/OUT,Power ON/OFF
Laser safety features	Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail, mechanical beam shutter, Option: fast electromechanical shutter [reaction time <20ms],
Control Mode	ILDA, DMX, Auto, Sound Active, SD Card
Size	L432W336H237mm
Net Weight	25kg
Packing	Flightcase

Product features

1. **Exquisite Animations and Patterns:** We rigorously control uniformity of beams and brightness, refining details to perfection, achieving dream-like laser shadow effects.
2. **High Brightness:** Laser beams are bright, providing sufficient light sources on large stages to highlight performances.
3. **Rich Colors:** Laser beams display vivid colors, adjustable as needed to enhance visual impact on stage.
4. **Flexible Control:** Through smart control systems, precise control over light is achieved, meeting various stage scenery and performance requirements.
5. **Environmentally Friendly and Energy Efficient:** High energy efficiency and long lifespan make laser light sources more environmentally friendly and energy efficient compared to traditional lighting equipment.

Product details

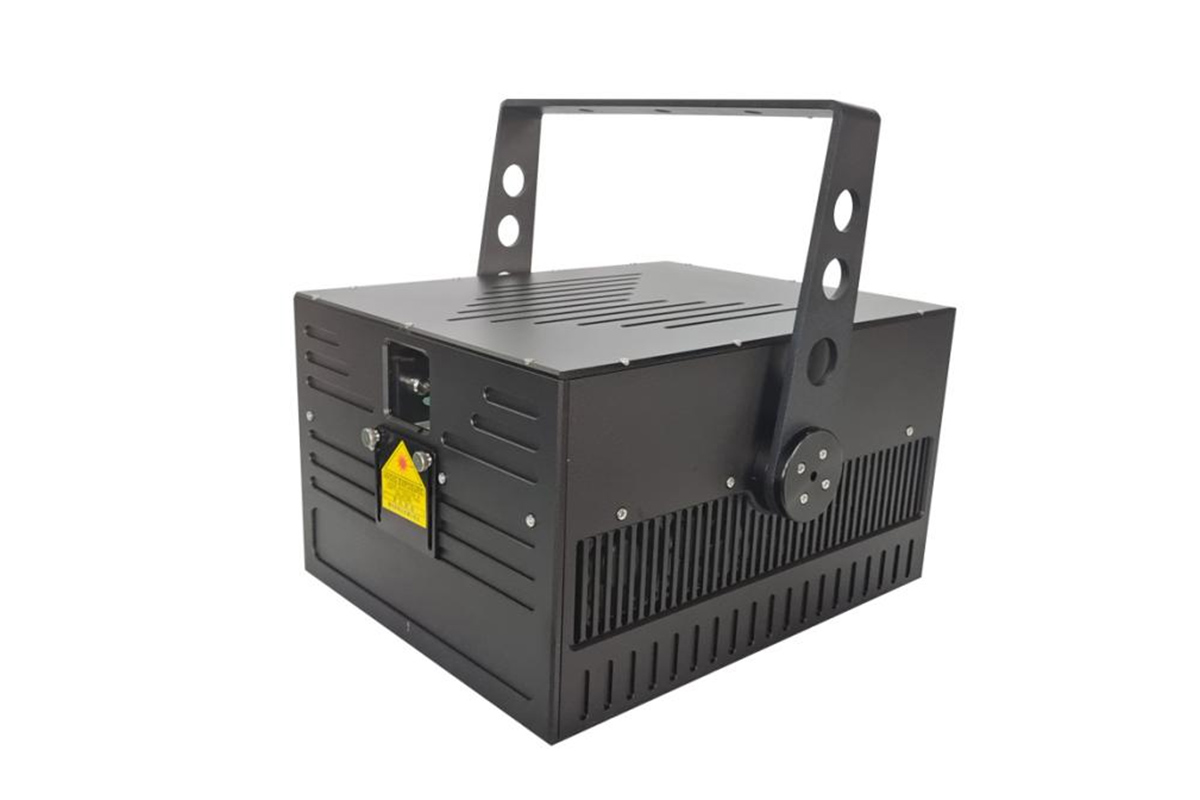

gb Laser Projector With The Newest Digital Driver For Outdoor Laser Shows (1)bvm

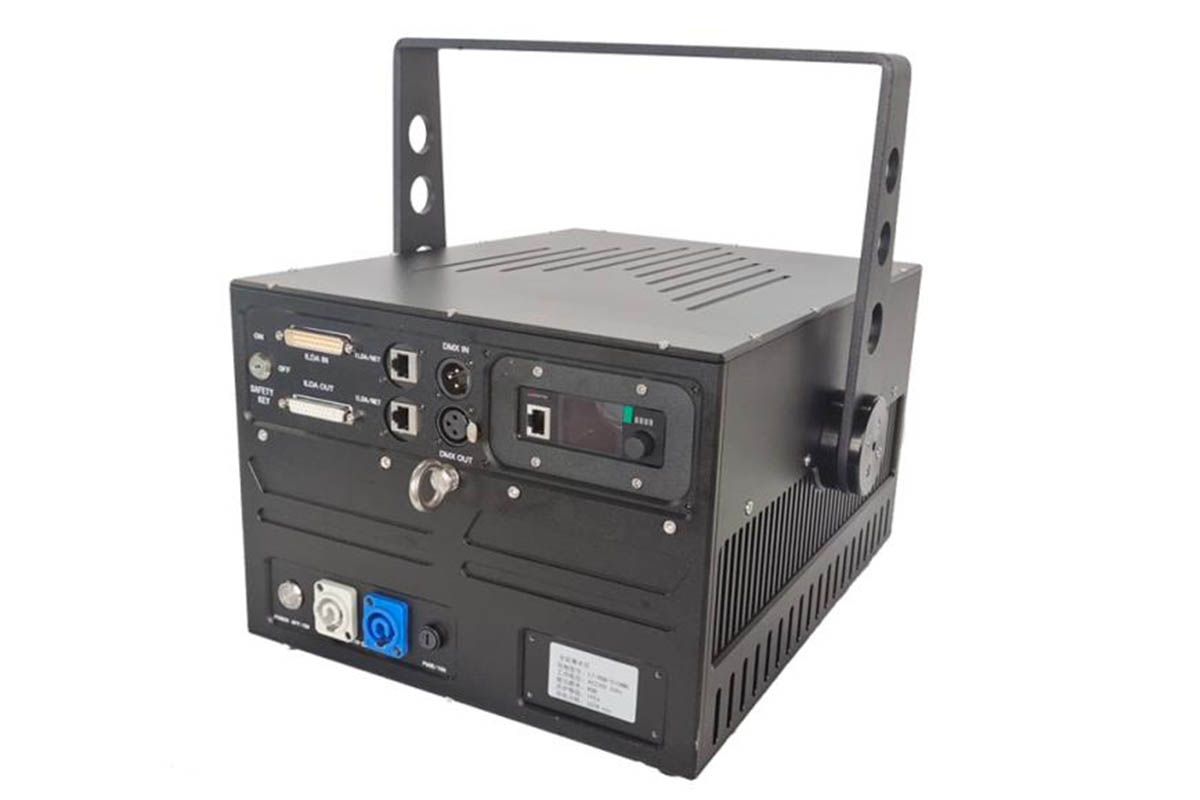

gb Laser Projector With The Newest Digital Driver For Outdoor Laser Shows (2)kah

application

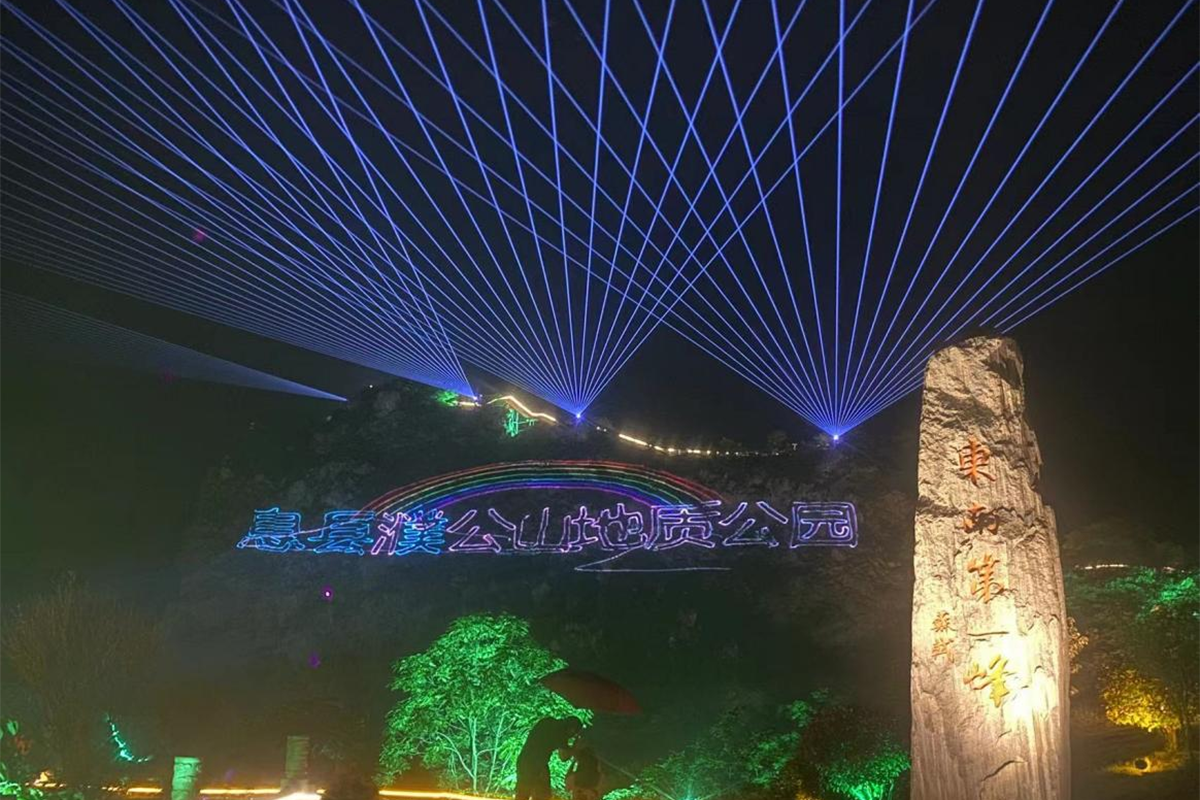

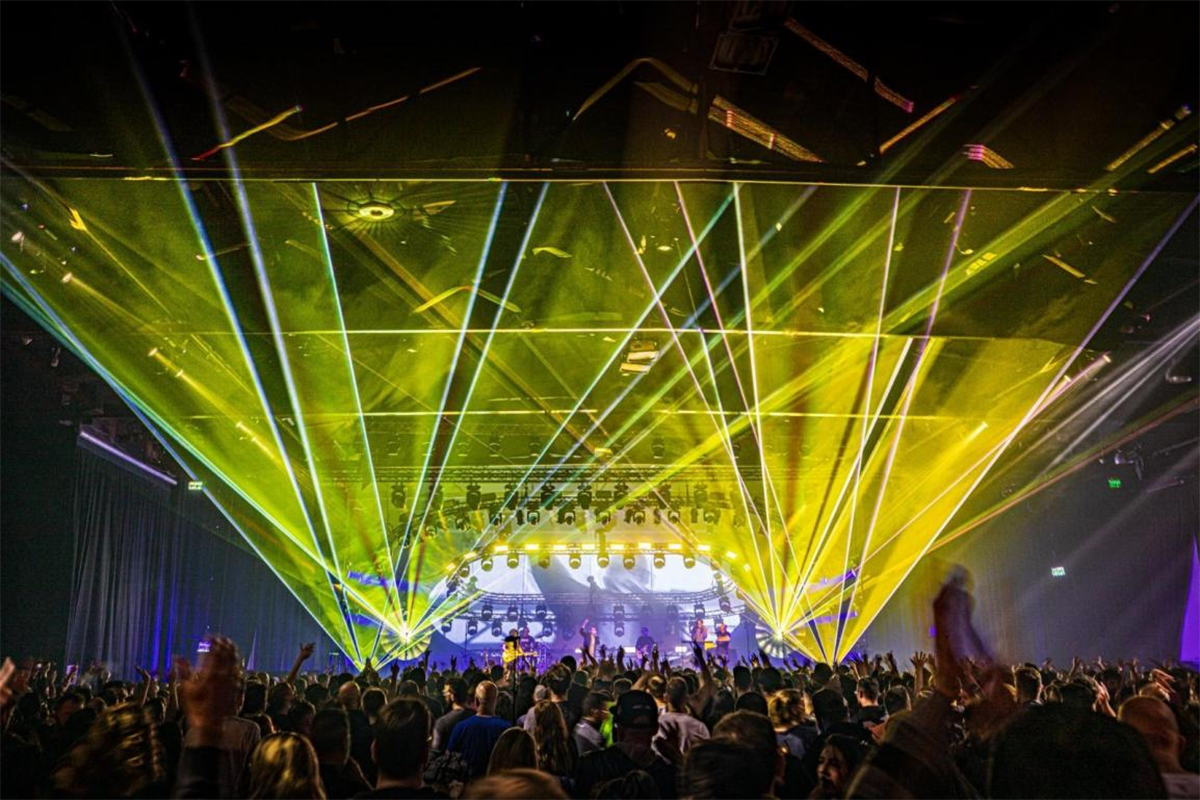

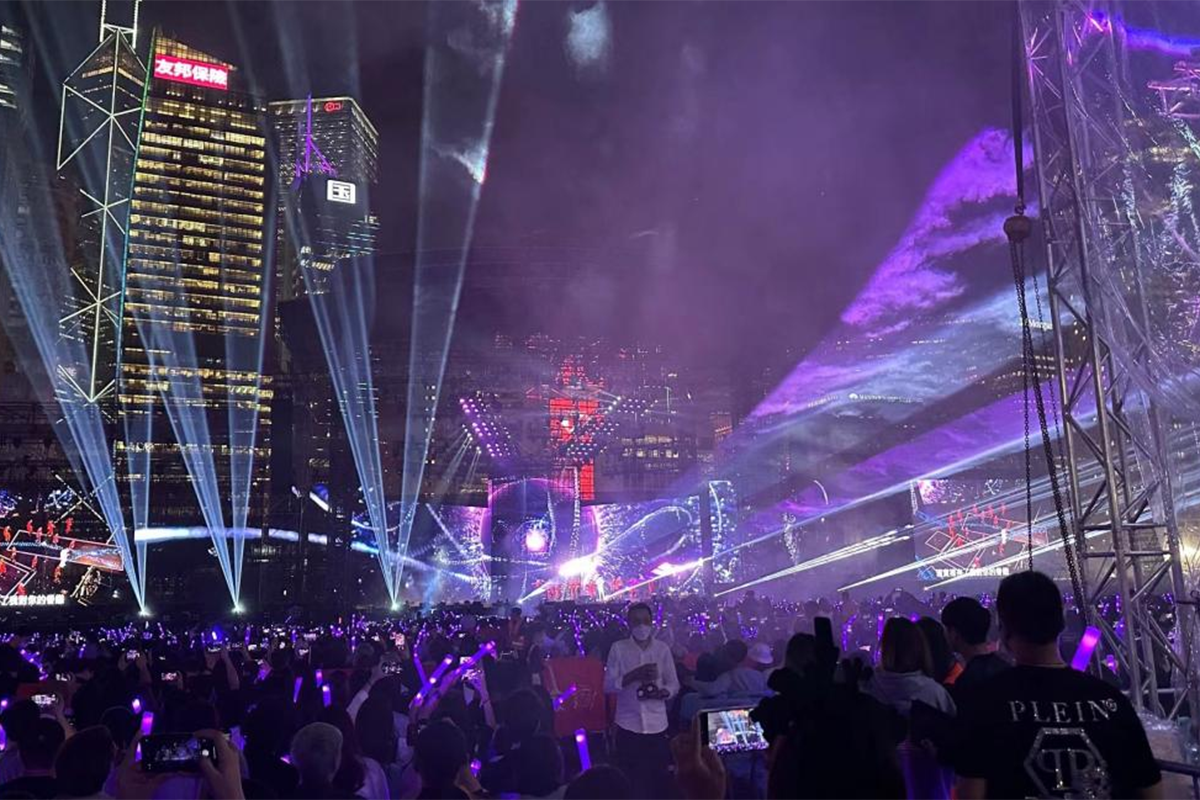

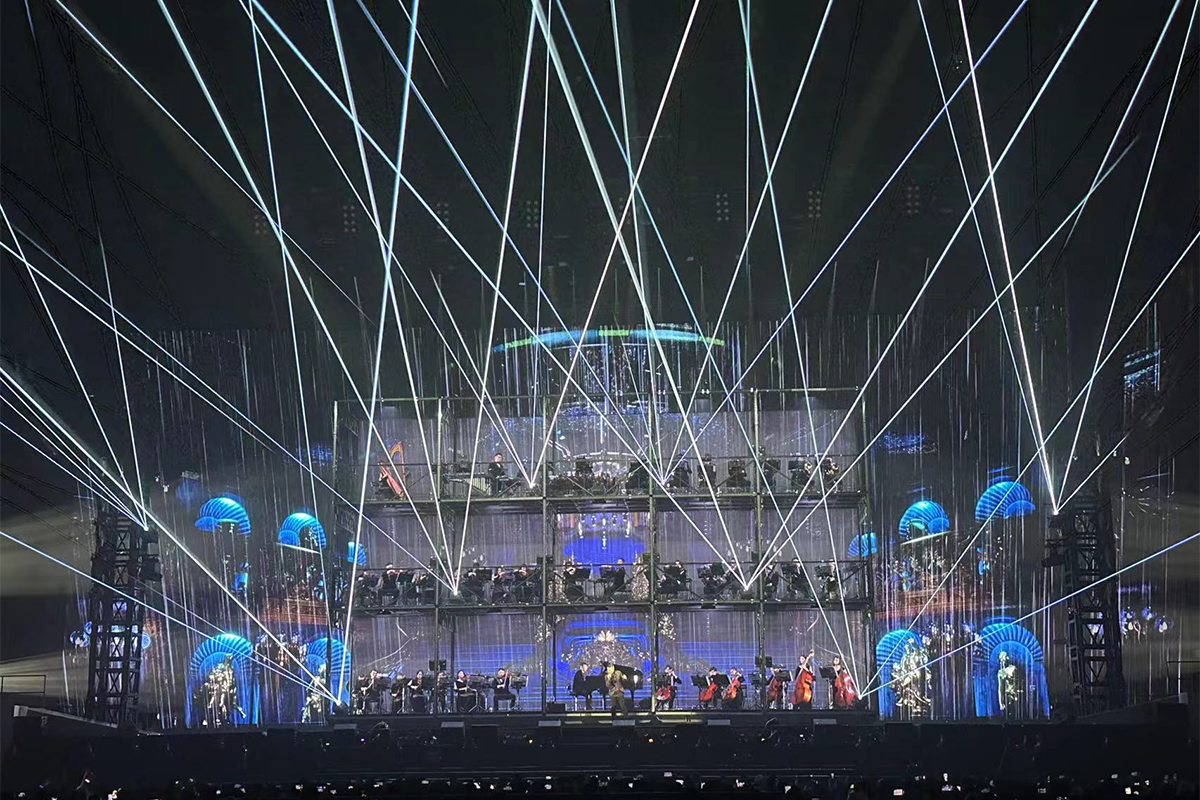

Widely applicable in stadiums, parks, landmark buildings, outdoor performances, concerts, water screen movies, opening ceremonies, and other large-scale performances and advertising promotions, laser beam show, animation laser show
