RGB Laser Lights

3W RGB Full color Animation Laser Light with 30kpps scanner for Club and Disco using

This product we use pure diodes laser source, working more stable and longer lifetime, scanner is 30kpps, the maximum scanning angle can Reach 60 ° , and linear distortion < 2% , smooth and beautiful graphics.

The machine built-in 128 beams and animation patterns, support projection of various beams, complex graphics, animation, with broken line effect, strobe, rotation, movement, tumbling, sub-map, fade, speed and other effects.

And there are a variety of playback mode options: SD Card, voice-activated mode, self-walking mode, DMX console, or ILDA works with Pangolin software and connects to a computer.

In terms of security, we have installed an intelligent protection system. When the scanner fails and stops scanning or the angle of projection pattern is too small, the laser will shut down automatically and stop working.

product details

product description

Product parameters

Model	TM- RGB03
Laser Power	3W In Total
	638nm	525nm	638nm
	600mw	900mw	1500mw
Beam size	4*2.8mm at aperture
Divergence	<1mrad full angle
Scanner	30kpps ILDA@8° standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%
Max scan angle	60°， ±30° on both axis

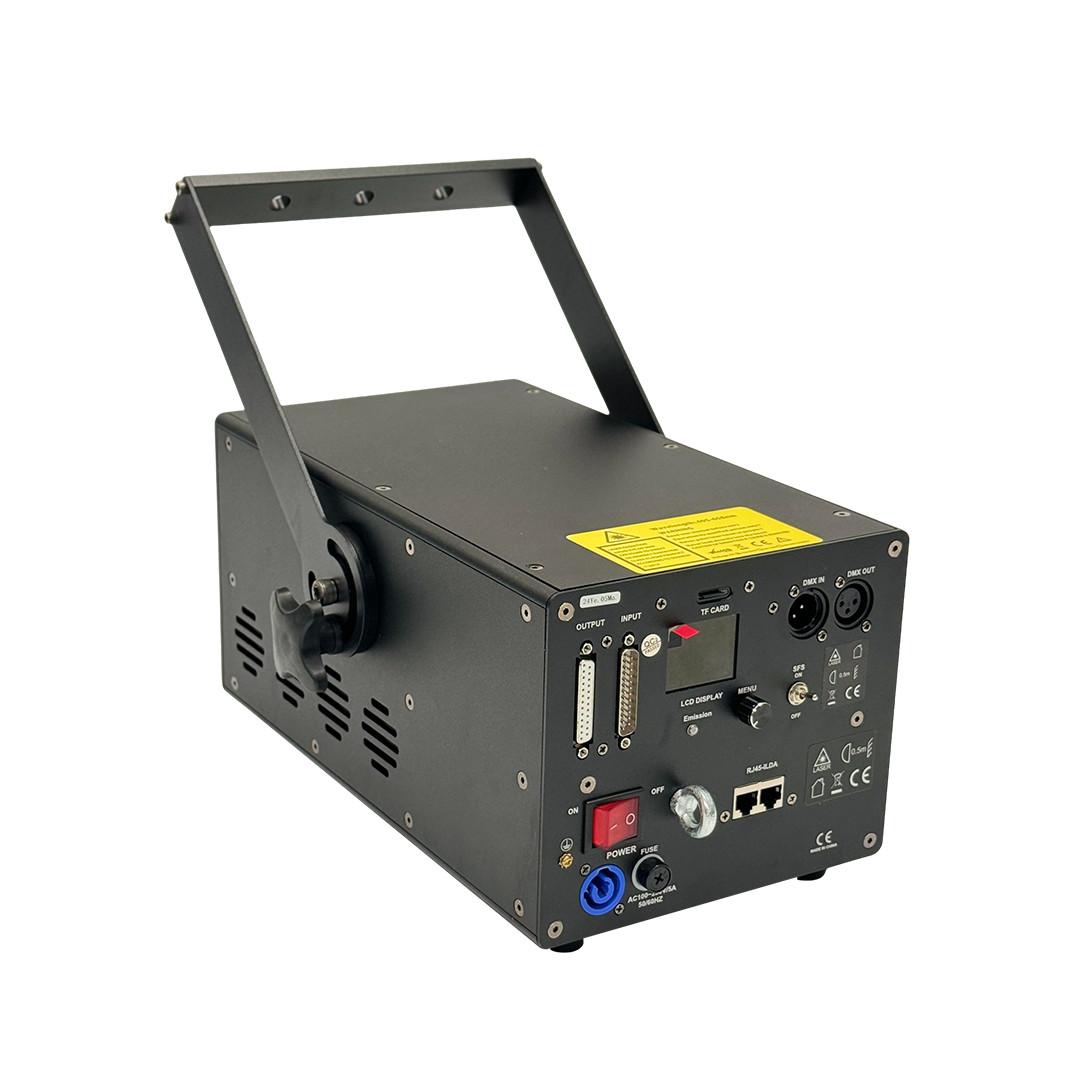

Function Panel	Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT, ILDA IN/OUT,Power ON/OFF
Laser safety features	Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail, mechanical beam shutter, Option: fast electromechanical shutter [reaction time <20ms],
Control Mode	ILDA, DMX, Auto, Sound Active
Size	L260W175H140mm
Net Weight	4.8kg
Packing	Carton/Pelicase

Product features

1. Two-layer independent design, dustproof and smokeproof.

2. Pure diode laser; stable performance, long lifespan.

3. Built-in with over 200 beam and pattern effects.

4. 100kHz analog modulation signal control, richer colors.

5. Upgradable with optional FB4 controller, or choose the standard large LCD screen.

6. Compact size, lightweight, easy to disassemble and assemble.

7. Complies with EU standards, built-in safety protection system.

Product details

This compact, lightweight Laser Light is (1)lmo

This compact, lightweight Laser Light is (2)doy

application

Nightclubs, Theme Parks And Exhibitions, Concerts And Musical Performances, Cultural Art Exhibitions Trade Shows, Animation Laser Show, Laser Beam Show, Firework Laser Show, Entertainment Bars, Nightclubs (Disco),Television Stations, Opera Houses.
