RGB Laser Module

40W RGB Laser Module with Divergence< 1mrad

The Tmaxlaser 40W RGB laser is a high-power laser combining the most advanced technology and top-quality materials. It delivers unparalleled visual impact for your stage performances, laser shows, and large-scale events. With its exceptional brightness, color performance, and stability, this laser is the perfect choice for high-end applications.

Product parameters

Wavalength	638nm	525nm	450nm
Power	12w	14w	16w
Beam Size	9*8mm
Divergence	<1mrad, full angle
Modulation	0-5V Analogue Modulation
Cooling	TEC

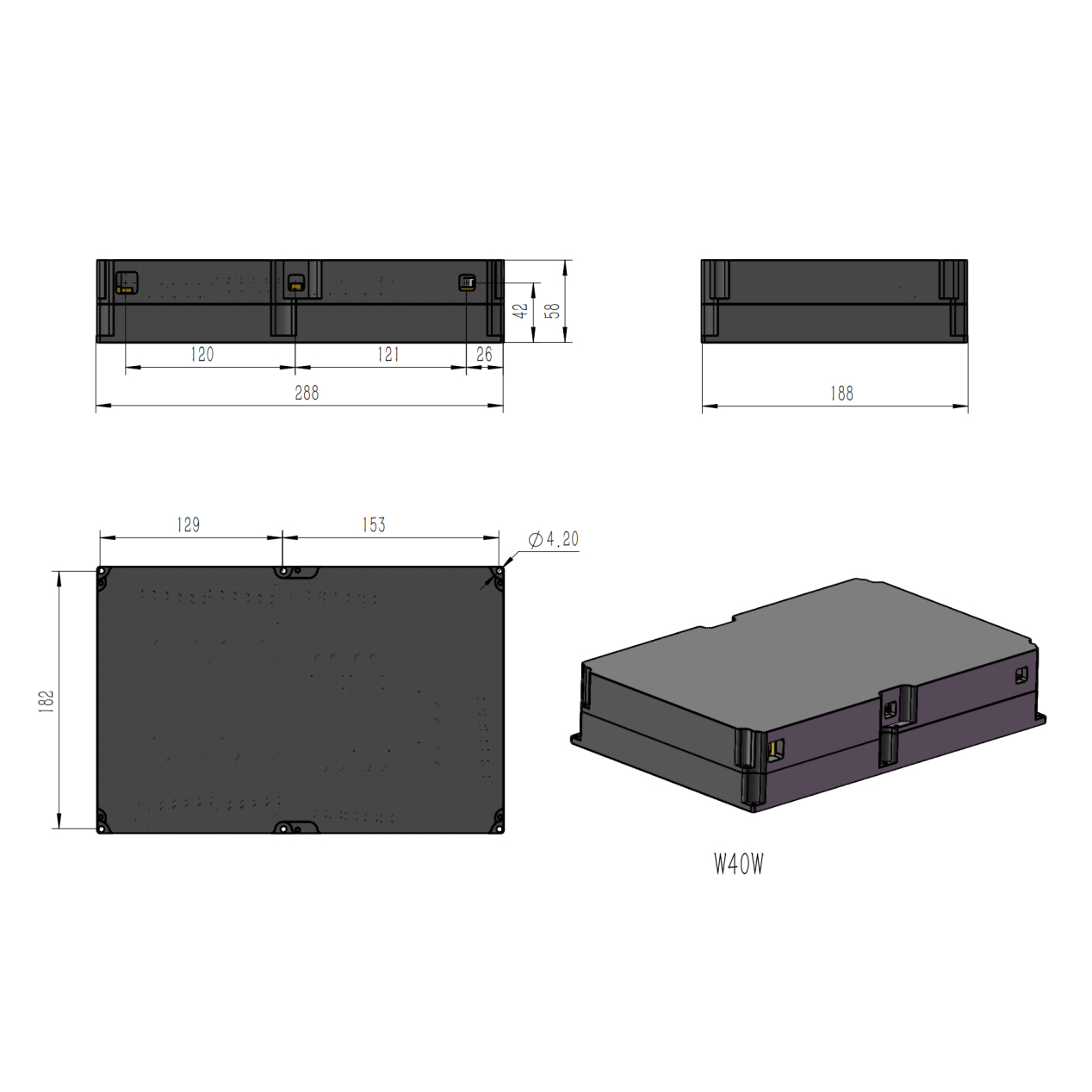

Laser Head Size （LWH) (mm)	28818858
Output Height (mm)	42
Working Temperature	-20°/ +50°
Lifespan	10000 hours
Warranty	2 years
Digital drivers can be selected Half Fiber Diodes or Full Fiber Diodes can be selected

Product features

1. Premium Laser Diodes
Utilizes brand-new Japanese-imported laser diodes from leading brands including Mitsubishi, Sharp, Nichia, and Osram.
Optional full-fiber-coupled diodes provide extremely small beam spot sizes and divergence angles, resulting in higher brightness and more focused beams.
2. Superior Performance
Delivers outstanding brightness and rich color performance, ensuring an impressive visual experience for various applications.
3. Advanced Driving Technology
Equipped with the latest digital drivers, offering higher modulation signals, excellent fade-in and fade-out effects, and real-time monitoring of the laser's operating status.
4. Precision and Reliability
Combines cutting-edge technology with precise manufacturing for exceptional performance and reliability.
