40W RGB Laser projector with Fiber Diodes and Round Beams
We offer the option to purchase models equipped with the FB4 controller from Pangolin Laser Systems, enabling LAN connectivity for all laser devices and remote control via fiber optic transmission, reaching distances of over 10 kilometers.
Furthermore, we provide the latest digitally developed drivers, featuring advanced digital adjustment capabilities for current and voltage, allowing for fast, precise modulation with high efficiency, low heat generation, and ensuring minimal 1% brightness adjustment and 1-100% brightness adjustment with excellent linearity and no color deviation.
Product parameters
Model |
TM- RGB40 |
||
Laser Power |
43W In Total |
||
638nm |
525nm |
450nm |
|
13W |
14W |
16W |
|
Beam size | 9*8mm at aperture | ||
Divergence | <1.2mrad full angle | ||
Scanner | 25kpps ILDA @8° standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98% | ||
Max scan angle | 50°, ±25° on both axis | ||

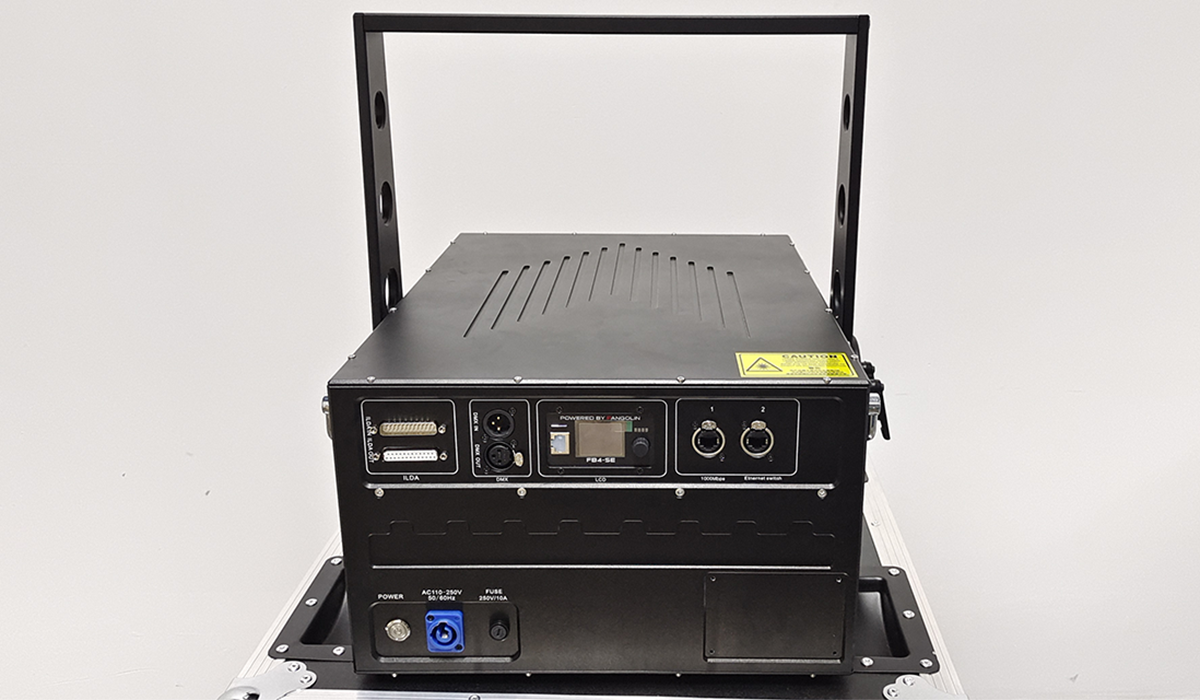

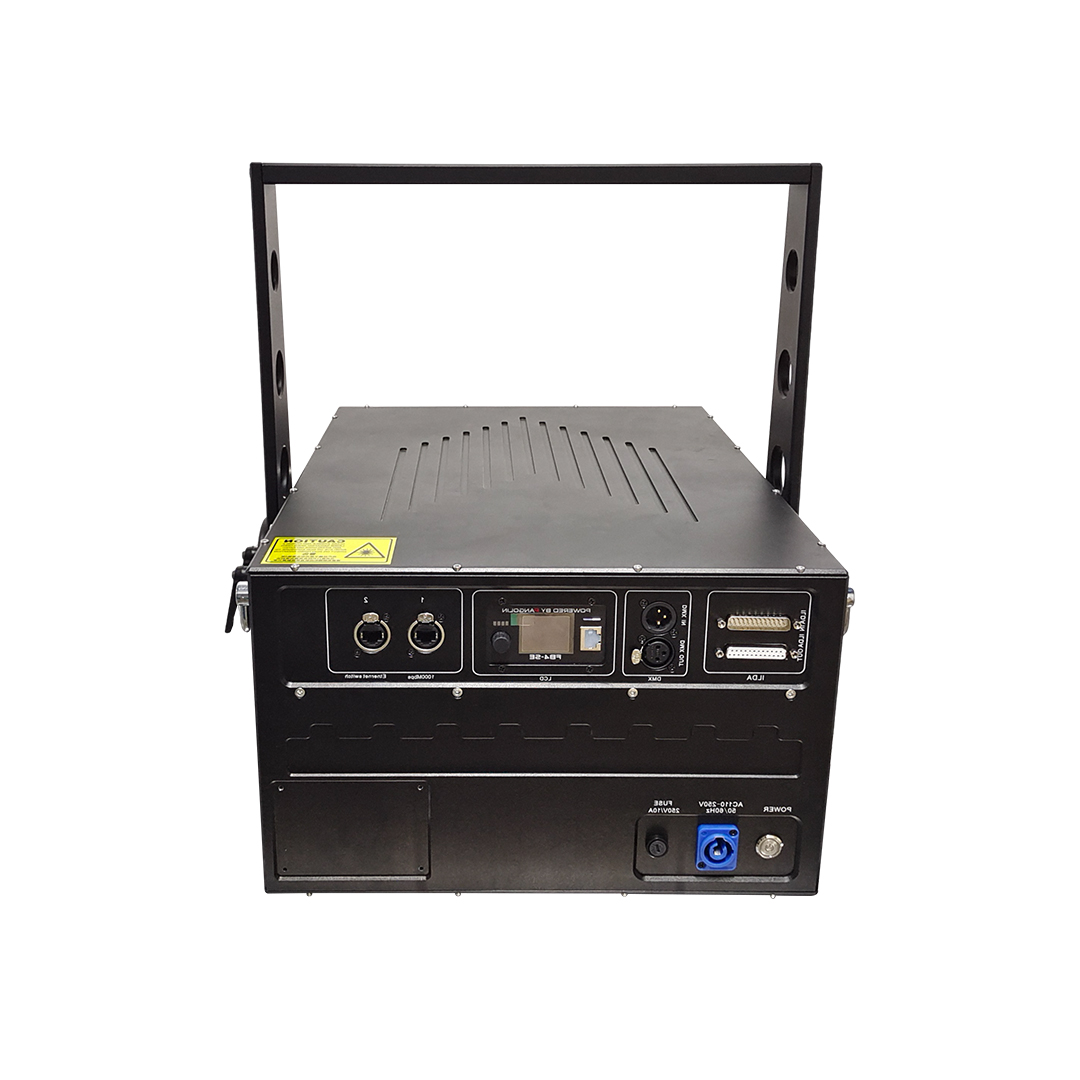

Function Panel | Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT, ILDA IN/OUT,Power ON/OFF | ||
Laser safety features | Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail, mechanical beam shutter, Option: fast electromechanical shutter [reaction time <20ms], | ||
Control Mode | ILDA, DMX, Auto, Sound Active, SD Card | ||
Size | L507*W390*H237mm | ||
Net Weight | 32kg | ||
Packing | Flightcase |
Product features
1. **Highly Concentrated Beam:** Provides a very noticeable beam effect even at long distances.
2. **High Brightness:** Produces a very prominent illumination effect in dark environments.
3. **Vivid Colors:** Generates stunning visual effects with bright and vivid colors.
4. **Temperature Control System:** Equipped with TEC cooling units to maintain optimal operating temperatures.
5. **Fiber-Coupled Pure Diode Lasers:** Stable operation and long lifespan.
6. **High Safety Standards:** Compliant with EU standards, equipped with Scan-fail safety system, remote control, and single point scanning failure protection.
Product details


application
- Mountain and building mapping
- Beam animation performances
- Advertising promotion
- Stage performances
- Wedding shows
- Museums
- Exhibitions and trade shows
- Celebrations and events
- Various performance venues
- Animation laser show
- Beam laser show

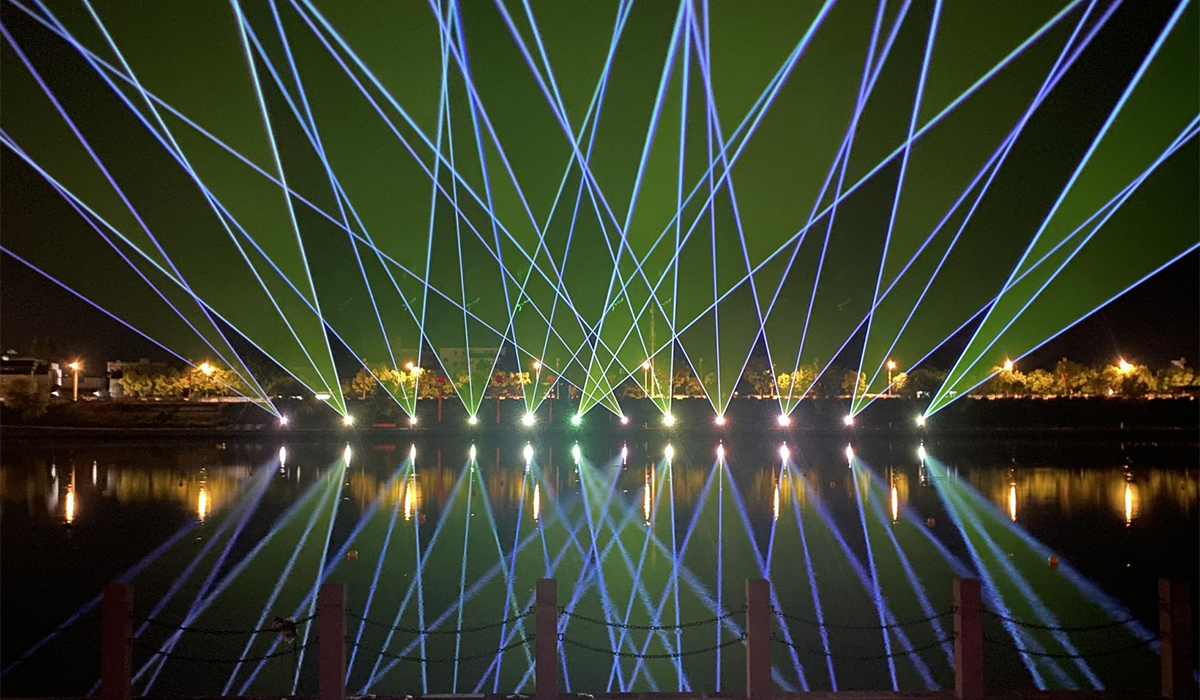

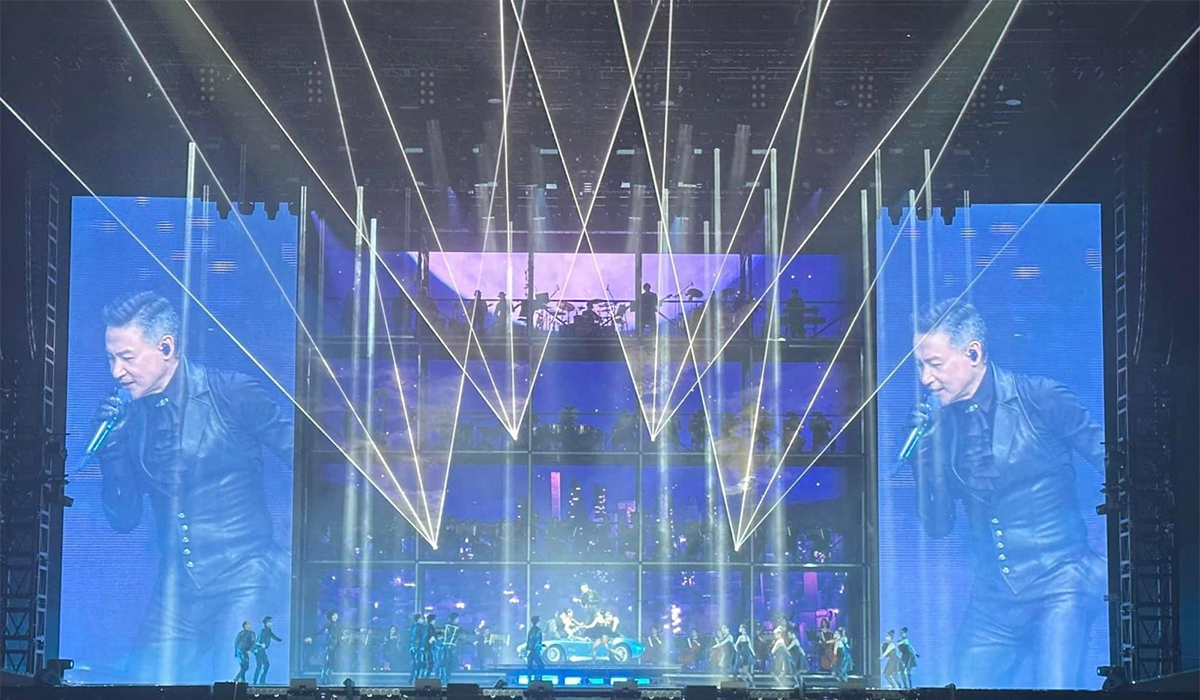

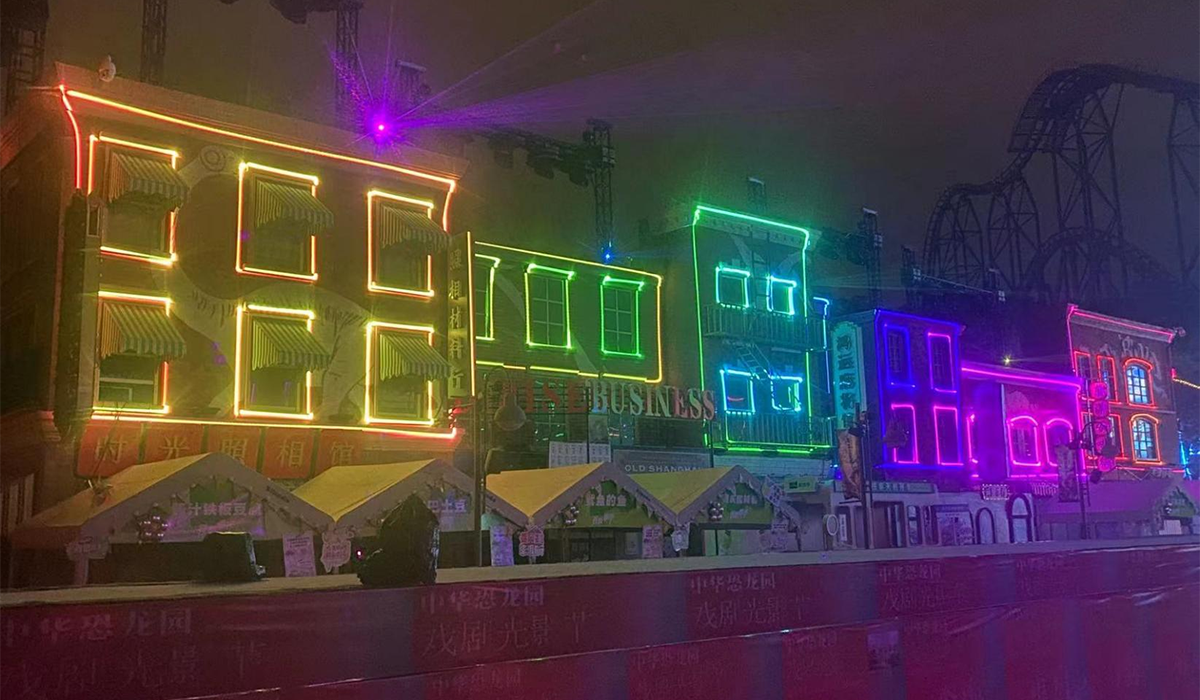

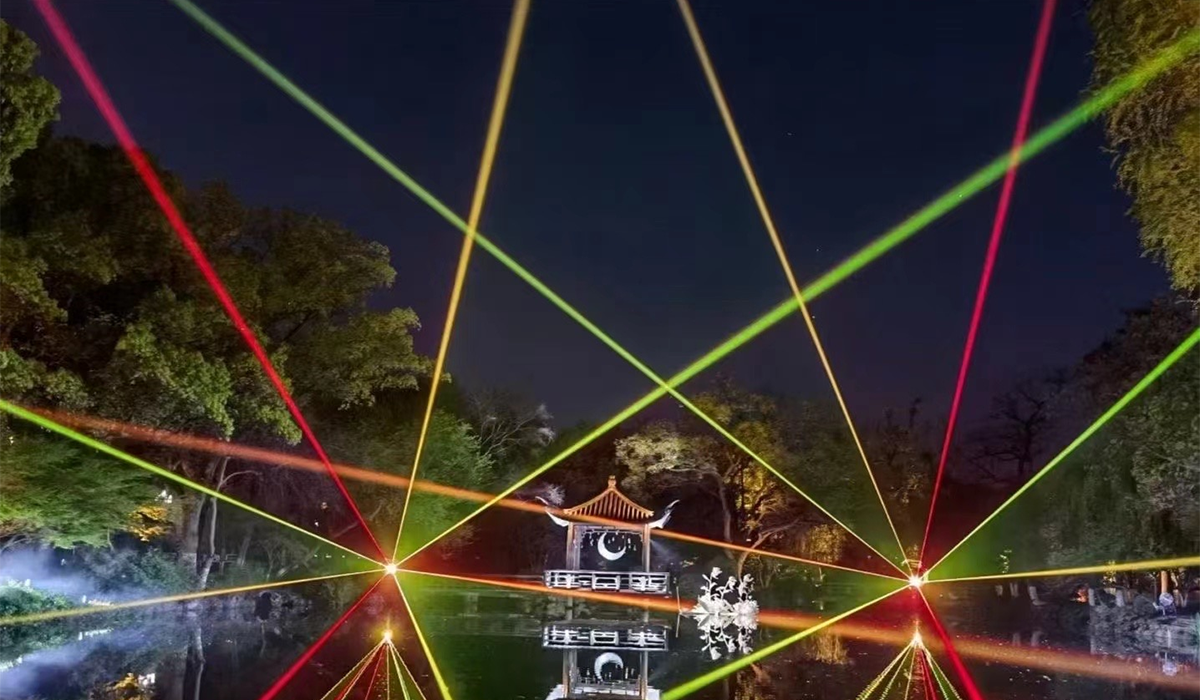

Application Effect
