Waterproof Laser Light

50W RGB Laser projector IP67 Waterproof with 2 Years Warranty

This light is designed specifically for users with outdoor performance needs. To ensure long-term outdoor use of the laser light, our casing is precision-engineered and made with robust materials. It achieves an IP66 protection rating, resistant to strong water jets, capable of withstanding high-pressure water flow. Additionally, the laser light features shock and surge protection housing, ensuring extended lifespan even in harsh environmental conditions.

All laser lights produced by our company use original, brand-new laser diodes from Mitsubishi, Sharp, Nichia, and Osram.
Utilizing fiber-coupled diodes and our latest breakthroughs in beam shaping technology, all models achieve nearly circular beam shapes with smaller spot sizes, reduced divergence angles, and cleaner, clearer beams. This capability results in high brightness, projecting over longer distances, making it ideal for users who prioritize quality.

The product is equipped with 30plus high-speed scanning mirrors for excellent animation effects, combined with highly concentrated beams for dazzling brightness and intense visual impact. It also includes a convenient feature of storing laser programs on an SD card for automatic playback, eliminating the need for manual operation. Using the latest versions of QS4.0 and beyond4.0, it allows remote switching of laser playback modes and adjustment of FB4 parameters without needing to operate FB4 directly.

Product parameters

Model	TM- RGB50
Laser Power	50W In Total
	638nm	525nm	450nm
	14W	16W	20W
Beam size	10.7*8.2mm at aperture
Divergence	<1.2mrad full angle
Scanner	25kpps ILDA @8° standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%
Max scan angle	50°， ±25° on both axis
Function Panel	Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT, ILDA IN/OUT,Power ON/OFF
Laser safety features	Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail, mechanical beam shutter, Option: fast electromechanical shutter [reaction time <20ms],
Control Mode	ILDA, DMX, Auto, Sound Active, SD Card
Size	L507W390H237mm
Net Weight	32kg
Packing	Flightcase

Product features

1. Excellent light source configuration, with superb color balance, pure white light, and dazzling colored light.
2. Option to integrate FB4 laser controller internally, with multiple control interfaces on the back panel for high compatibility.
3. Equipped with the best DT scanning mirrors domestically, ensuring guaranteed scanning speed and range,
projecting smooth and clear animated lines for vivid imagery.
4.Excellent heat dissipation, with a multi-layered independent design separating laser optics, circuit control,
5.and heat dissipation paths perfectly.
5. Precision-designed waterproof structure ensures safe and flawless performance even in rainy conditions.
6. Multiple configuration options allow customization of laser power and casing design according to your requirements.

application

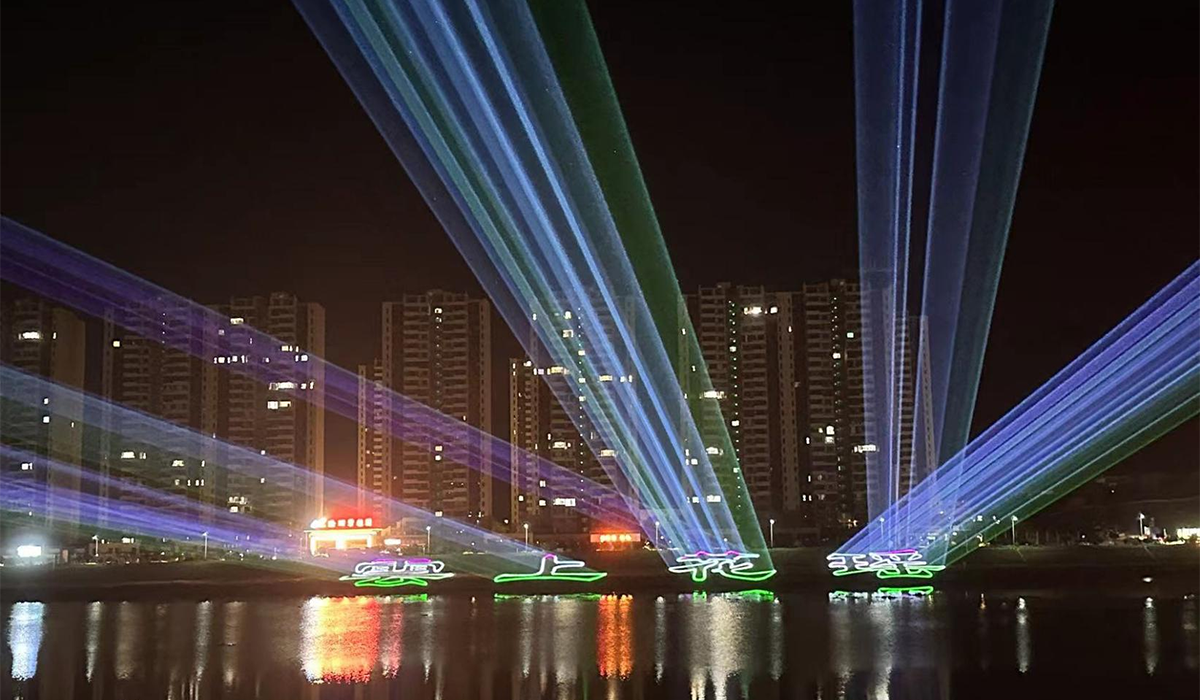

- Mountain and building mapping
- Laser engraving shows
- Landmark building projects
- Outdoor advertising projects
- Water screen fountain projects
- Outdoor illumination projects

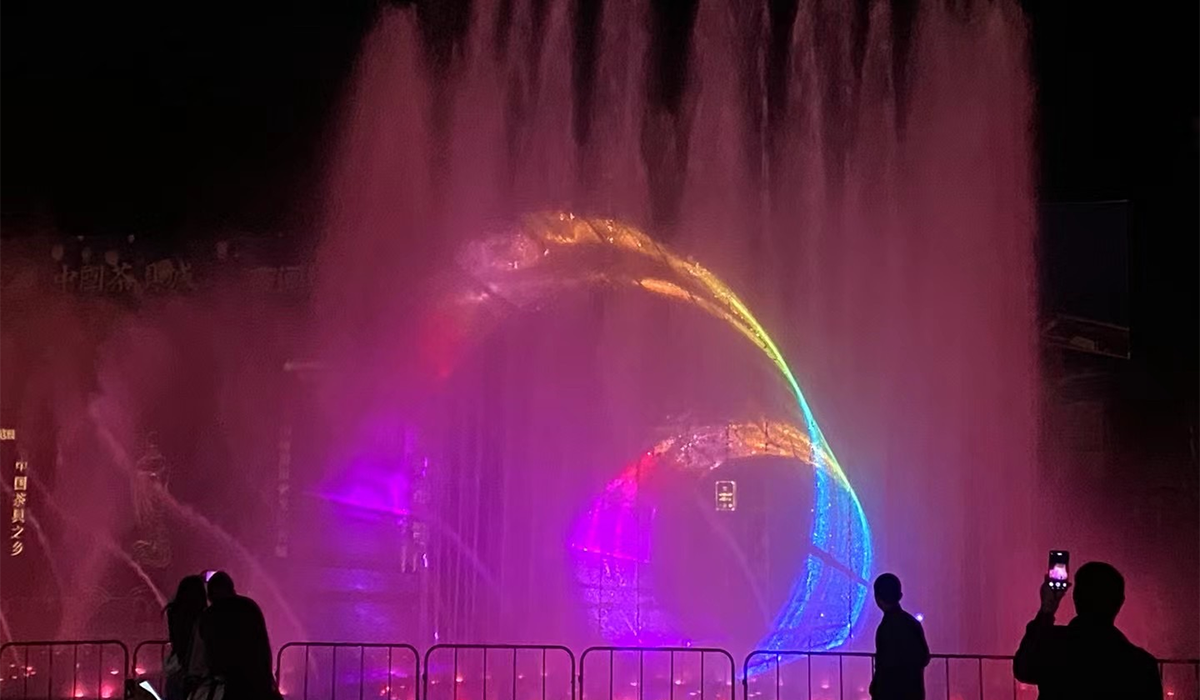

- Fountain water screen performances
- Garden landscape lighting
- Outdoor illumination projects
- Fountain water screen performances
