5W RGB Laser Light with TEC cooling and pure diodes

RGB Laser Lights

5W RGB Laser Light with TEC cooling and pure diodes

This laser light is specifically designed for small to medium-sized performances in bars, discos, parties, and similar venues.
Our product features a compact structure and lightweight design, making it easy to disassemble and install.
The laser light's structural components and housing are crafted from aluminum alloy, providing an optimal balance between heat dissipation, structural strength, and lightweight requirements. The laser module is fully sealed, offering protection against moisture, oil, and dust.
Using pure diode lasers source with TEC cooling plates, this product boasts a long lifespan, high stability, and excellent color consistency. When multiple units are used simultaneously, there is no issue of color inconsistency due to high temperatures.
The scanner adopts a 30kpps high-speed galvanometer, with a maximum scanning angle of 60° and a linear distortion of less than 2%, ensuring smooth and aesthetically pleasing graphics.
The laser modulation signal is analog, with a beam aperture diameter of 5mm and a divergence angle of less than 1mrad. By using the popular ILDA interface and Pangolin laser show software, it can achieve integrated advertising content such as animations, text, graphics, and beams, providing high entertainment and visual appeal.
The control modes include Auto/Sound, Master-Slave, DMX512, Art-Net, and compatibility with ILDA standard computer laser software.

    Product parameters

    Model

    TM- RGB05

    Laser Power

    5W In Total



    638nm

    525nm

    450nm



    1.2W

    1.5W

    2.5W

    Beam size

    5.3*3mm at aperture

    Divergence

    <1mrad full angle

    Scanner

    30K ILDA@8°

    standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%

    Max scan angle

    60°, ±30° on both axis

    Function Panel

    Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT,

    ILDA IN/OUT,Power ON/OFF

    Laser safety features

    Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail,  mechanical beam shutter,

    Option: fast electromechanical shutter [reaction time <20ms],

    Control Mode

    ILDA, DMX, Auto, Sound Active

    Size

    L280*W195*H165mm

    Net Weight

    7kg

    Packing

    Carton/Pelicase

    Product features

    1. Exquisite and aesthetically pleasing structural design, ensuring the smallest size and lightest weight while maintaining optimal performance.
    2. Excellent light source configuration, providing an exceptional color ratio with pure white light and vibrant colored lights.
    3. More focused, brighter, and clearer beams with longer projection distance.
    4. Optional built-in FB4 laser controller, with a rear panel featuring multiple control interfaces for high compatibility.
    5. Unique effects, high flexibility, energy-efficient, and environmentally friendly with low power consumption and no harmful gas emissions.
    6. We also offer personalized customization of products, including custom power ratios, exterior design, and functionality adjustments.

    Product details

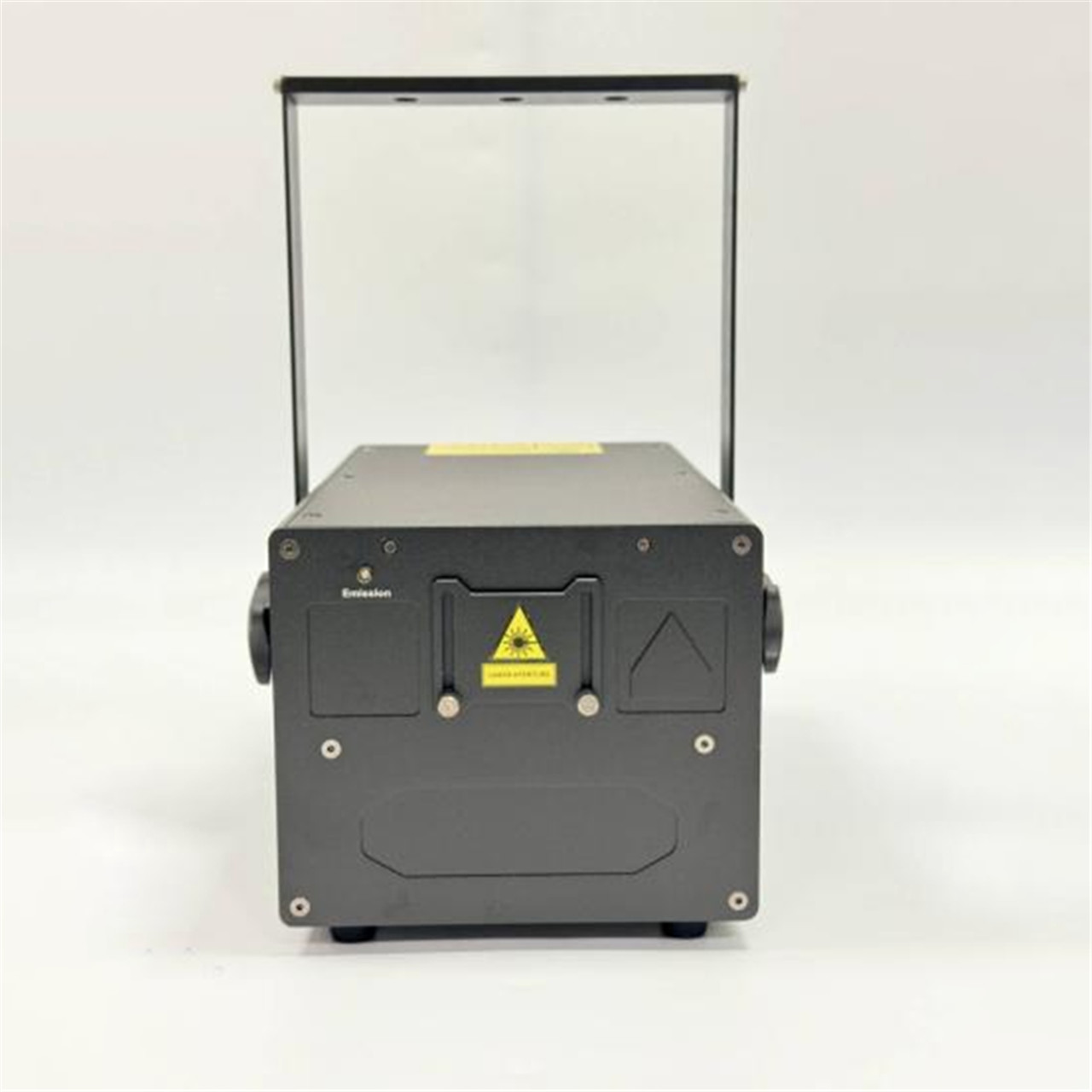

    This compact, lightweight Laser Light is  (1)lmo

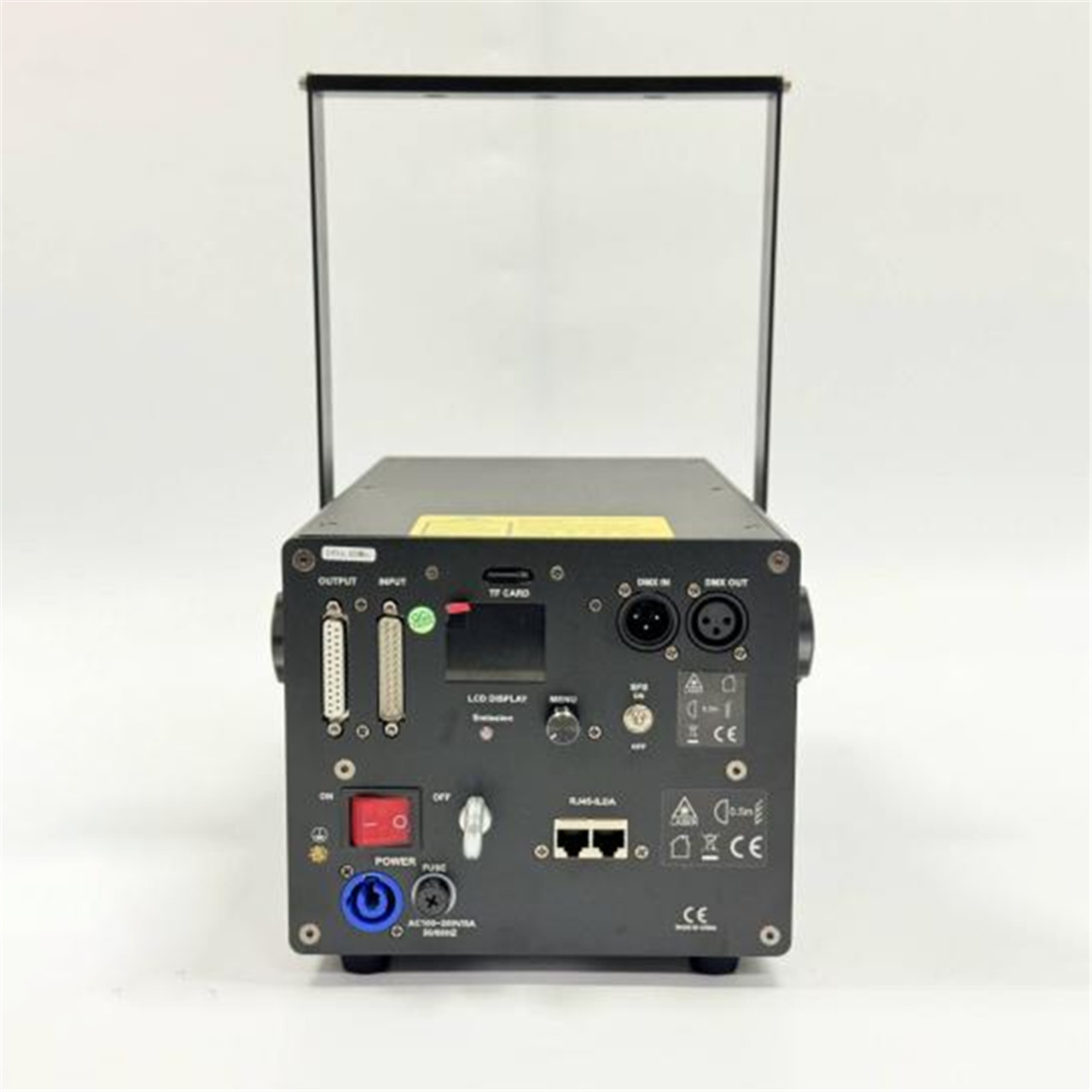

    This compact, lightweight Laser Light is  (2)doy

    application

    Stage performances and shows, opening ceremonies and celebratory events, concert halls and broadcasting studios, banquet halls and wedding venues, nightclubs,theme parks and exhibitions, concerts and musical performances cultural art exhibitions trade shows Animation laser show Laser beam show Firework laser show

    Application Effect

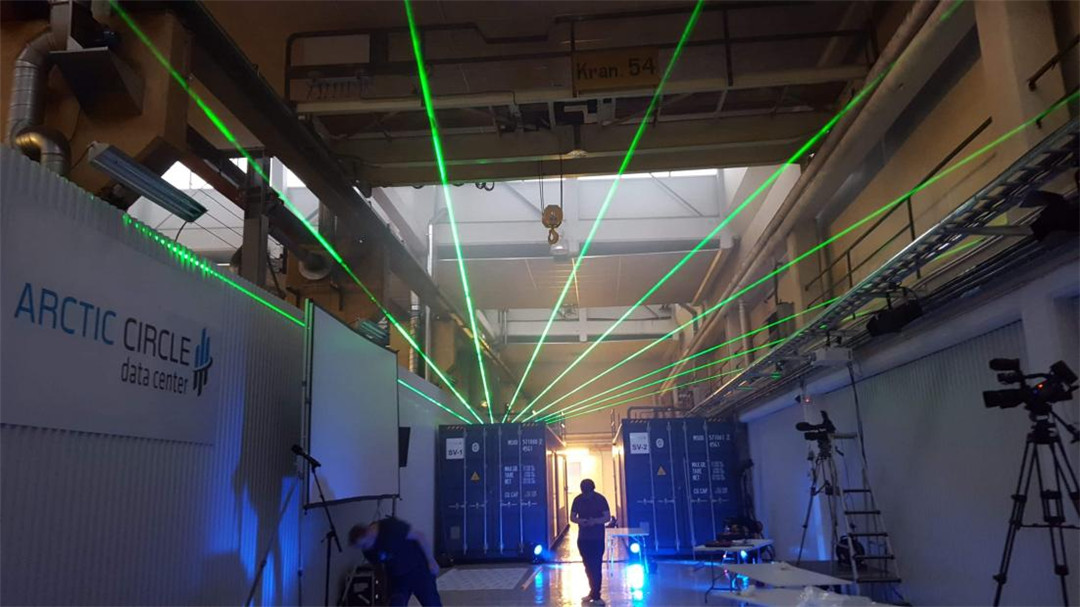

    asd (1)ypr

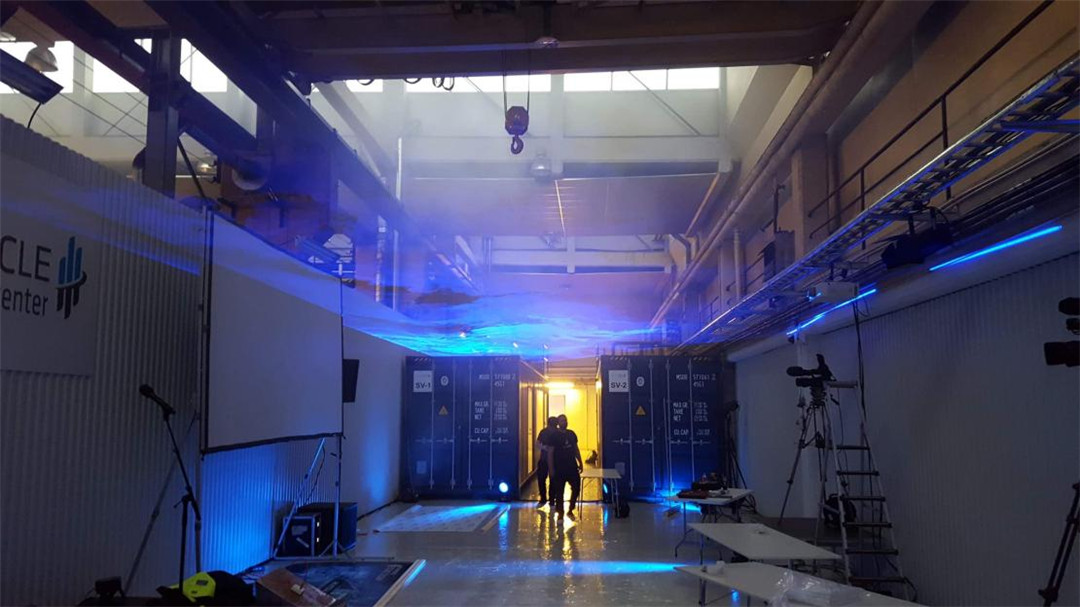

    asd (2)0m7

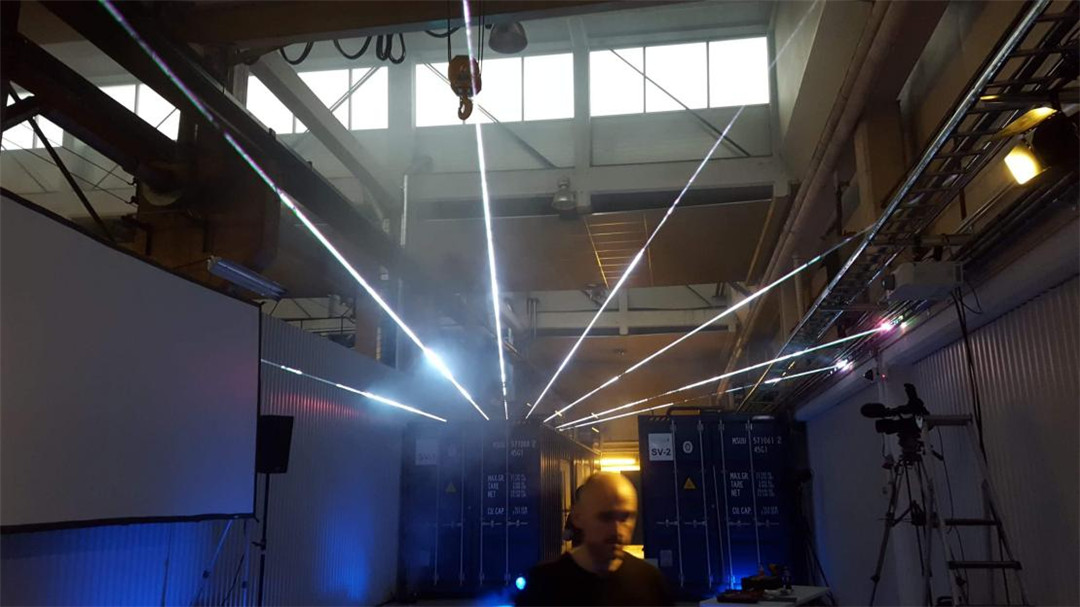

    asd (3)8ku

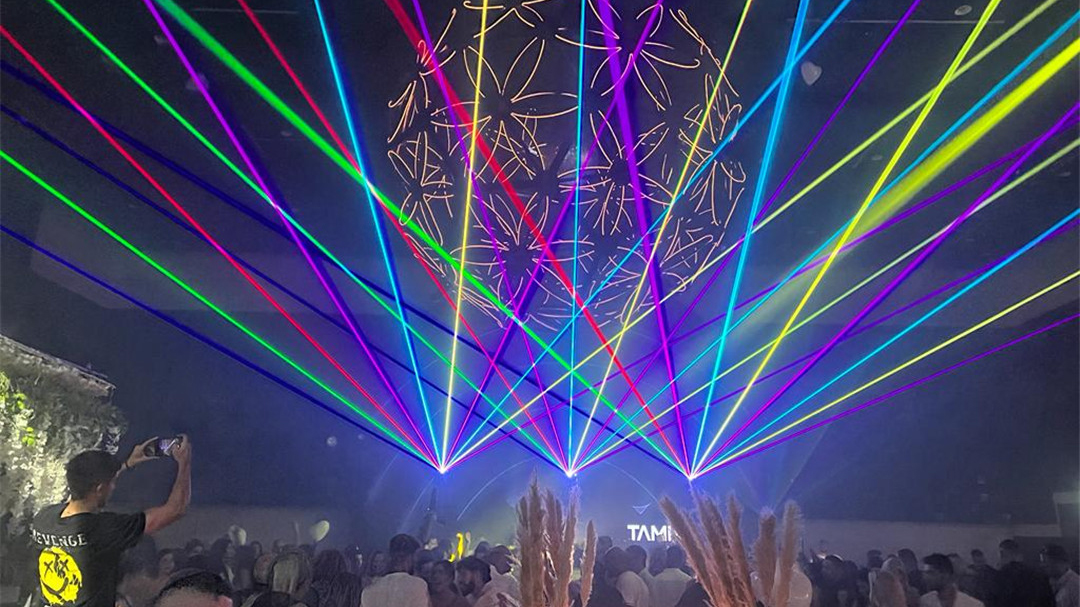

    sadll3
