RGB Laser Module

60W RGB Laser Module with Full Fiber Diodes

The Tmaxlaser 60W RGB laser represents the most advanced laser technology and exceptional craftsmanship in the industry. With its ultra-high power and top-tier performance, this laser delivers stunning visual effects for large-scale stage performances, laser shows, and various high-end events. Its powerful brightness, rich color palette, and stability make it the ideal choice for achieving flawless light and shadow effects.

Product parameters

Wavalength	638nm	525nm	450nm
Power	16w	20w	24w
Beam Size	11*9mm
Divergence	<1.1mrad, full angle
Modulation	0-5V Analogue Modulation
Cooling	TEC

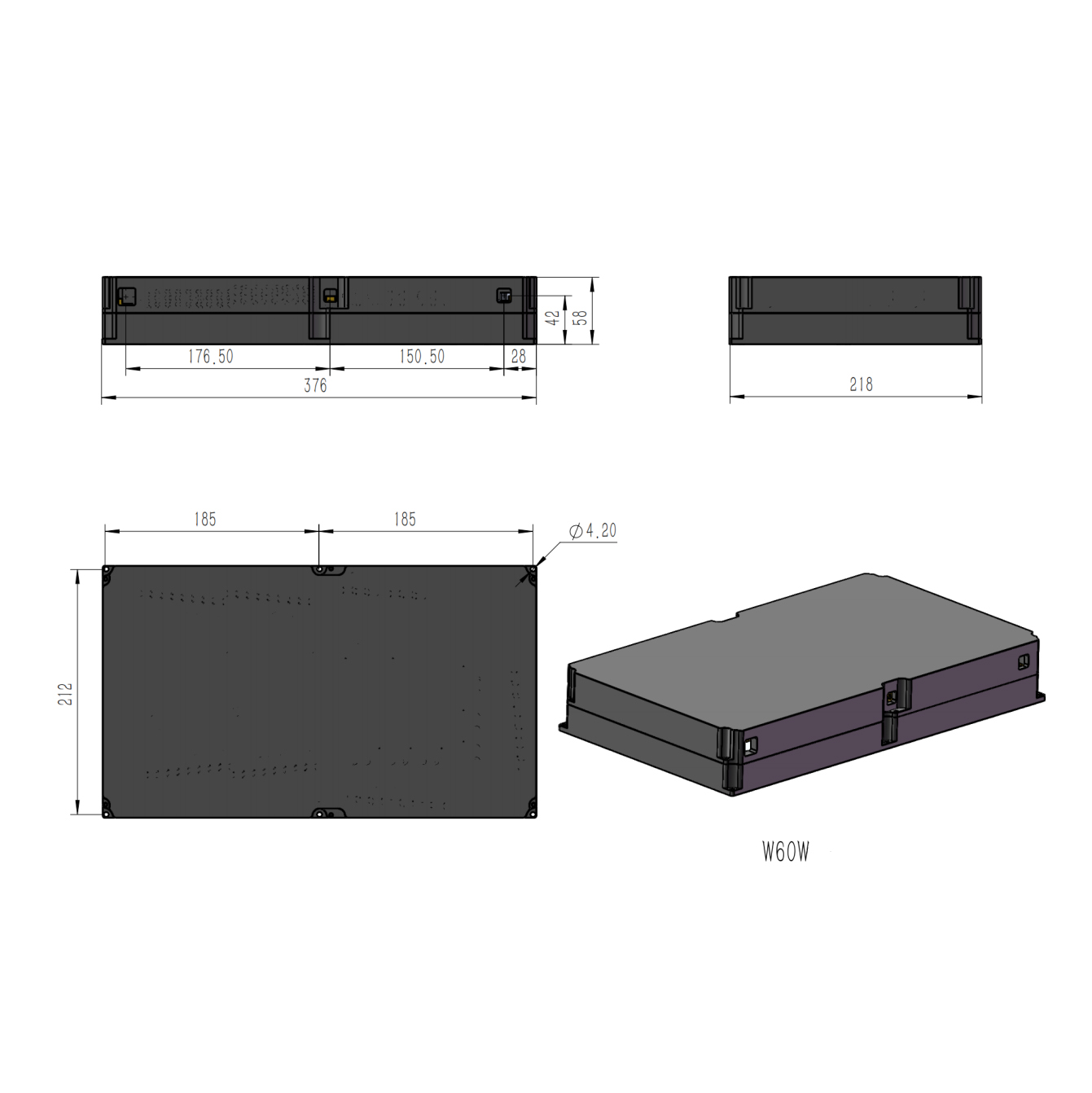

Laser Head Size （LWH) (mm)	37621858
Output Height (mm)	42
Working Temperature	-20°/ +50°
Lifespan	10000 hours
Warranty	2 years
Digital drivers can be selected Half Fiber Diodes or Full Fiber Diodes can be selected

Product features

1. Cutting-Edge Laser Diodes
Utilizes brand-new Japanese-imported laser diodes from leading brands including Mitsubishi, Sharp, Nichia, and Osram.
Features pure diodes with TEC cooling for long lifespan, stable operation, and excellent color consistency.
2. Superior Visual Performance
Well-balanced power ratio ensures pure white light and a rich, delicate color spectrum for an impressive visual experience.
Optional full-fiber-coupled diodes available, providing extremely small beam spot sizes and divergence angles for higher brightness and more focused beams.
3. Precision Engineering
Engineered with a well-structured design for optimal heat dissipation, stable beam combining, and minimal beam deviation.
Fully enclosed design provides protection against dust, smoke, and moisture.
