RGB Laser Module

70W RGB Laser Module with super brightness beam

The Tmaxlaser 70W RGB laser is one of the most advanced laser devices in the industry, designed for high-end users seeking the ultimate visual effects. With its ultra-high power and exquisite craftsmanship, this laser delivers unparalleled brightness and color performance, providing stunning visual impact for large-scale stage performances, laser shows, and significant events.

Product parameters

Wavalength	638nm	525nm	450nm
Power	20w	20w	30w
Beam Size	11.3*9.4mm
Divergence	<1.1mrad, full angle
Modulation	0-5V Analogue Modulation
Cooling	TEC

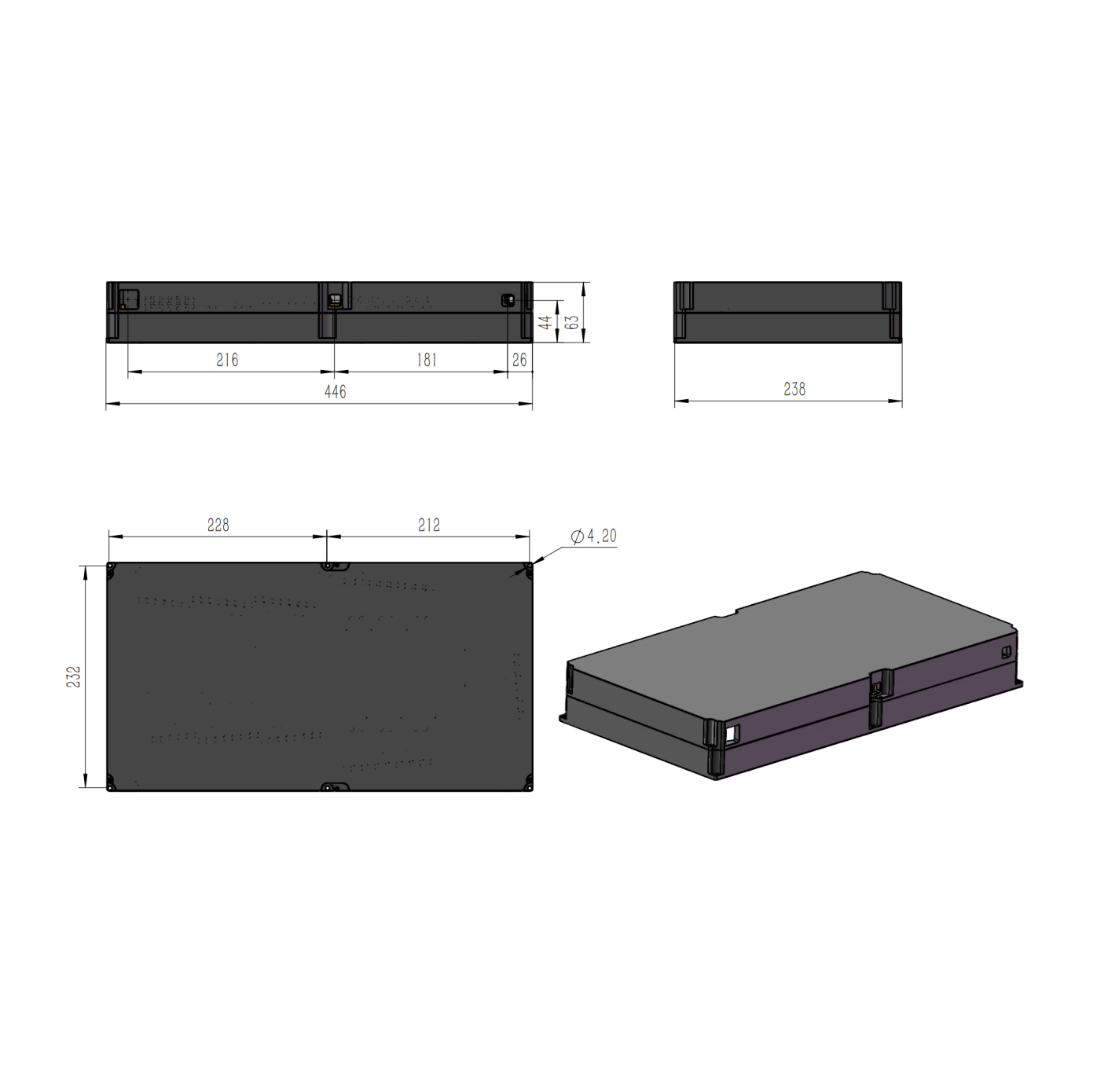

Laser Head Size （LWH) (mm)	44623863
Output Height (mm)	44
Working Temperature	-20°/ +50°
Lifespan	10000 hours
Warranty	2 years
Digital drivers can be selected Half Fiber Diodes or Full Fiber Diodes can be selected

Product features

1. Top-Tier Laser Diodes
Uses pure diodes with TEC cooling, ensuring long lifespan, stable operation, and excellent color consistency.
Includes brand-new Japanese-imported laser diodes from leading brands such as Mitsubishi, Sharp, Nichia, and Osram.
2. Superior Visual Performance
Features a well-balanced power ratio for pure white light and rich, delicate colors.
Optional full-fiber-coupled diodes available, offering extremely small beam spot sizes and divergence angles for higher brightness and more focused beams.
3. Precision Engineering
Designed with optimal heat dissipation, stable beam combining, and minimal beam deviation.
Fully enclosed design ensures dust-proof, smoke-proof, and moisture-proof protection.
4. Advanced Driving Technology
Equipped with the latest digital drivers, providing higher modulation signals, excellent fade-in and fade-out effects, and real-time monitoring of the laser's operating status.
