IP65 32W RGB Laser Light with the latest DT Xeon digital driver

Waterproof Laser Light

IP65 32W RGB Laser Light with the latest DT Xeon digital driver

The laser power reaches 32W RGB, utilizing original brand-new laser diodes: Mitsubishi for red light, Nichia for green light, and Osram for blue light.
 All diodes are fiber-coupled. Due to our latest breakthrough in beam shaping technology, all models now achieve nearly circular beam shapes. Additionally, all beams perfectly match in shape, size, and divergence, ensuring all mixed colors are clear and clean without any halo effect,
the beam size is smaller, divergence angle is reduced, resulting in cleaner and clearer beams. This means our lasers can produce tremendous brightness and project over longer distances, especially suitable for users demanding high quality. Particularly for users focused on laser shows with animations, our lasers with fine beams should be your first choice.
This laser light comes with a standard ILDA interface, uses ILDA40K high-speed scanning mirrors, TTL and analog modulation solid-state lasers, and a powerful control system with a large-capacity program storage. Through the popular ILDA interface and Pangolin laser show software, magnificent laser performances become effortlessly controllable. The laser beam passes through high-speed mechanical scanners, transforming single beams into multiple beams. Controlled by a computer optical system, it produces a variety of output patterns, allowing for multi-beam flipping and transformations synchronized with music.
Additionally, we have equipped the latest developed digital drivers. With the latest digital drivers, you can achieve minimum 1% brightness adjustment and adjust brightness from 1% to 100% without color deviation, ensuring good linearity.

    Product parameters

    Model

    TM- RGB32

    Laser Power

    32W In Total

    638nm

    525nm

    450nm

    10W

    10W

    12W

    Beam size

    7.5*7.6mm at aperture

    Divergence

    <1.2mrad full angle

    Scanner

    35kpps ILDA @8°

    standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%

    Max scan angle

    60°, ±30° on both axis

    Function Panel

    Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT,

    ILDA IN/OUT,Power ON/OFF

    Laser safety features

    Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail,  mechanical beam shutter,

    Option: fast electromechanical shutter [reaction time <20ms],

    Control Mode

    ILDA, DMX, Auto, Sound Active, SD Card

    Size

    L407.5*W308*H228mm

    Net Weight

    24kg

    Packing

    Flightcase

    Product features

    1. Exquisite Animations and Patterns: We rigorously control uniformity of beams and brightness, refining details to perfection, achieving dream-like laser shadow effects.
    2. High Brightness: Laser beams are bright, providing sufficient light sources on large stages to highlight performances.
    3. Rich Colors: Laser beams display vivid colors, adjustable as needed to enhance visual impact on stage.
    4. Flexible Control: Through smart control systems, precise control over light is achieved, meeting various stage scenery and performance requirements.
    5. Environmentally Friendly and Energy Efficient: High energy efficiency and long lifespan make laser light sources more environmentally friendly and energy efficient compared to traditional lighting equipment.

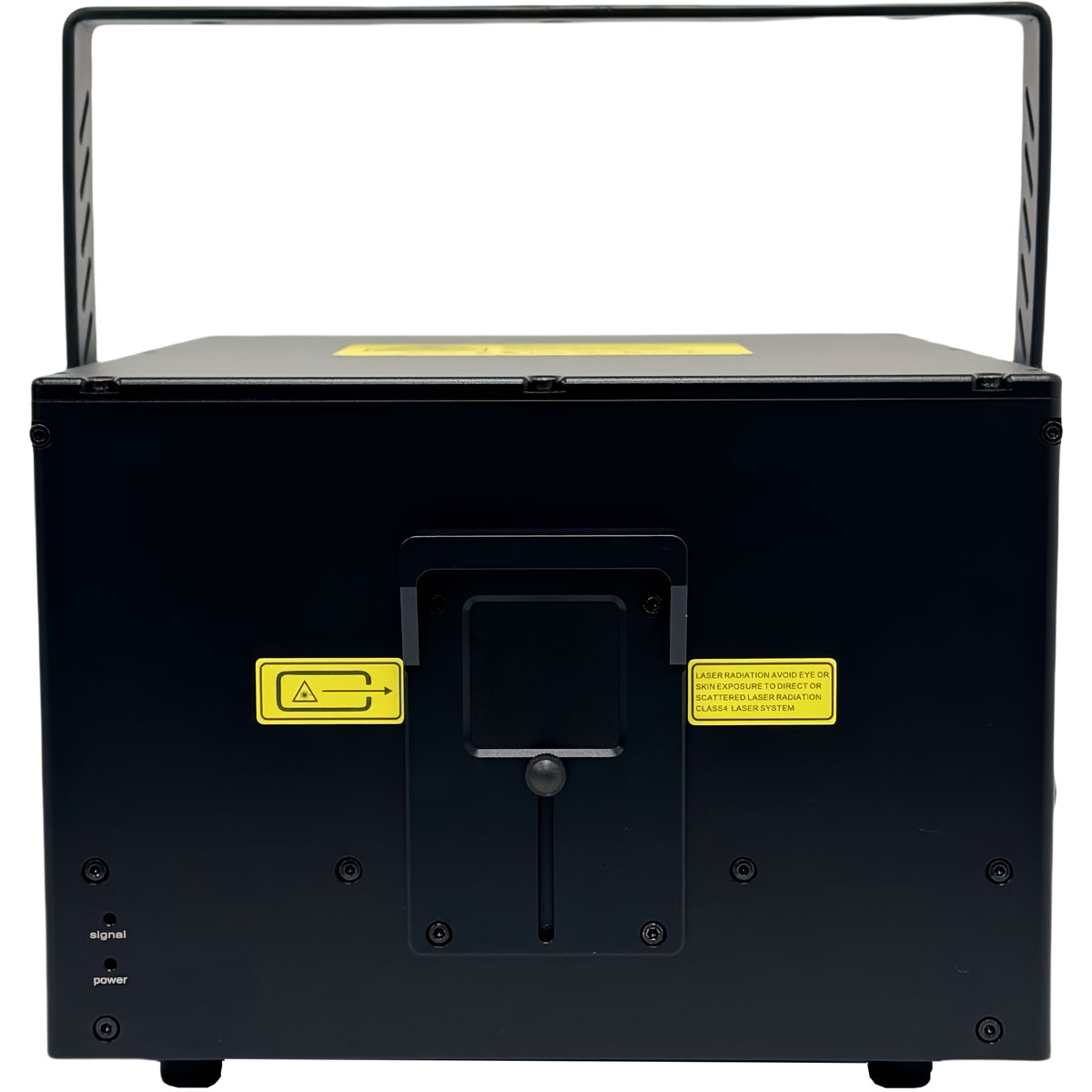

    Product details

    9186ba83-a217-4a52-a0c3-b276f4d4d719
    61c8b82f-06eb-4ba7-989f-8a265e915c94

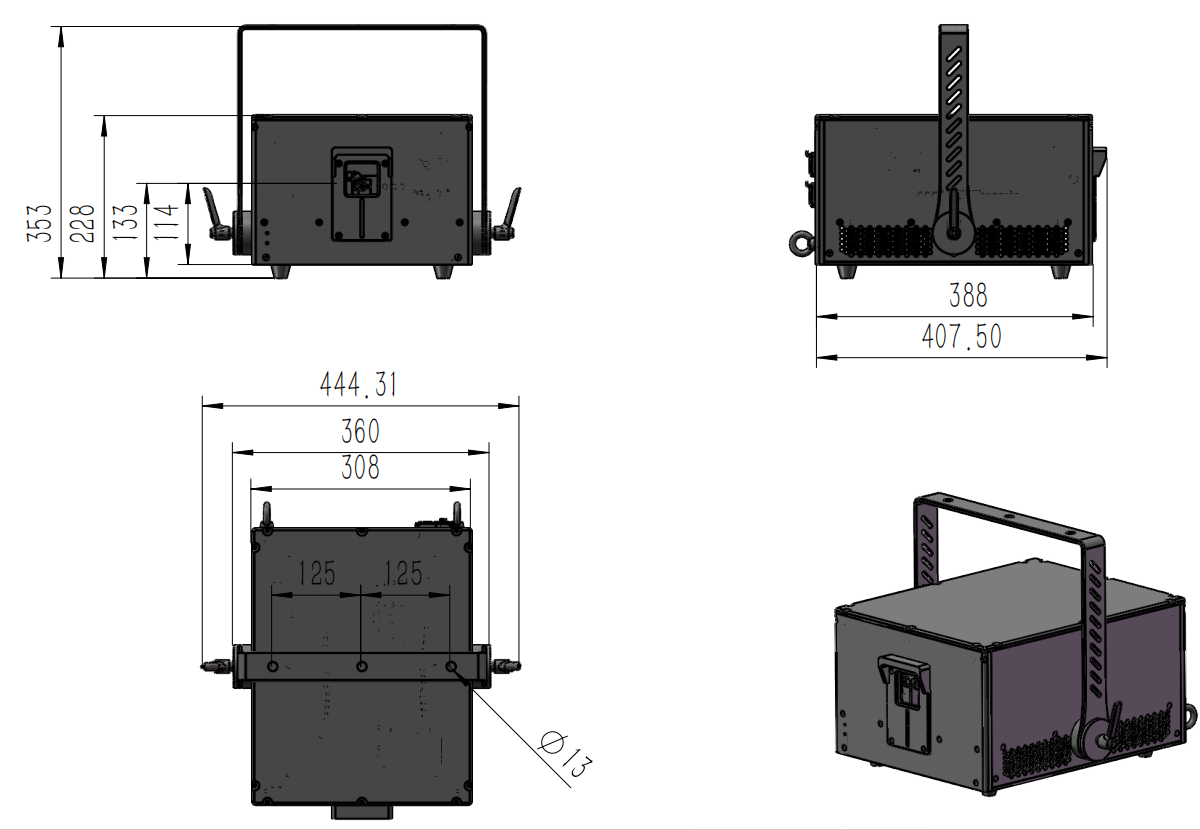

    gfhtr

    application

    Widely applicable in stadiums, parks, landmark buildings, outdoor performances, concerts, water screen movies, opening ceremonies, and other large-scale performances and advertising promotions, laser beam show, animation laser show

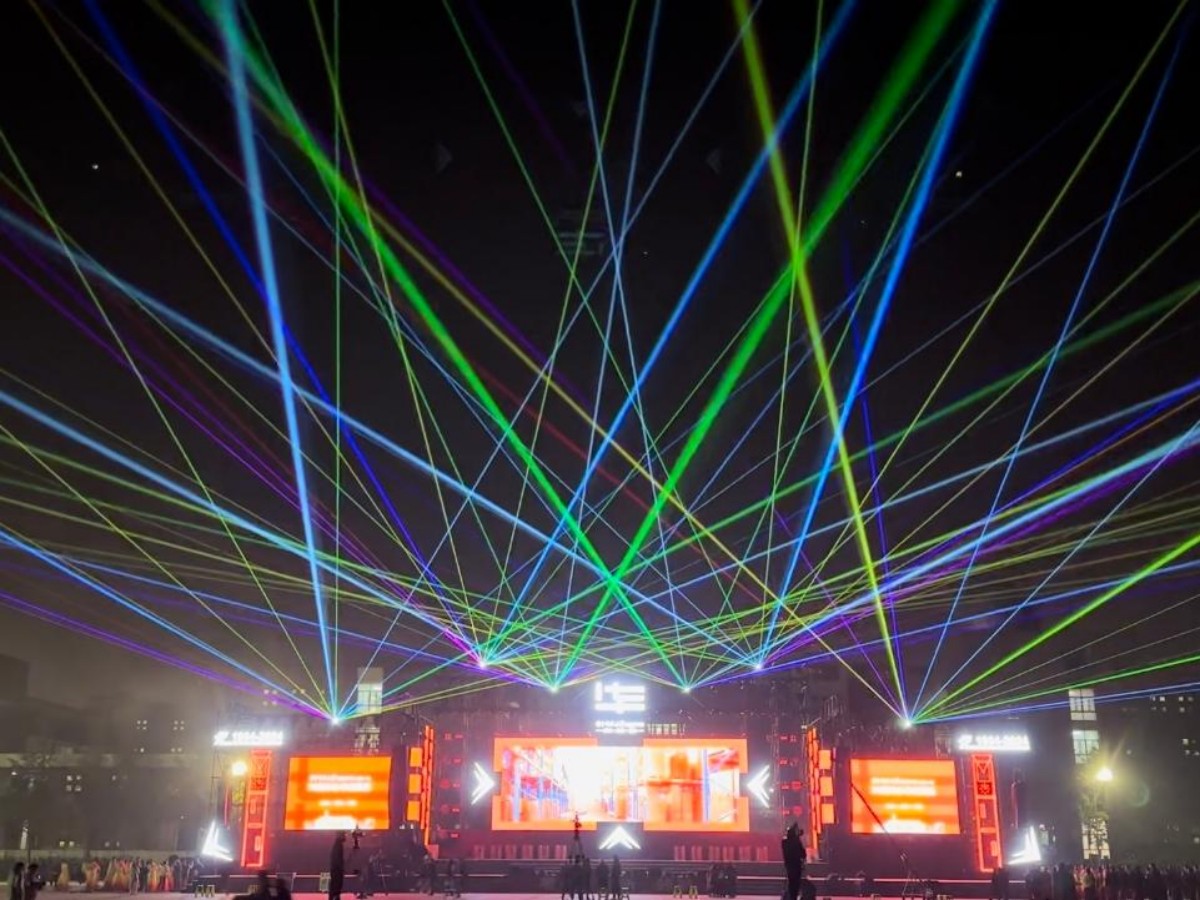

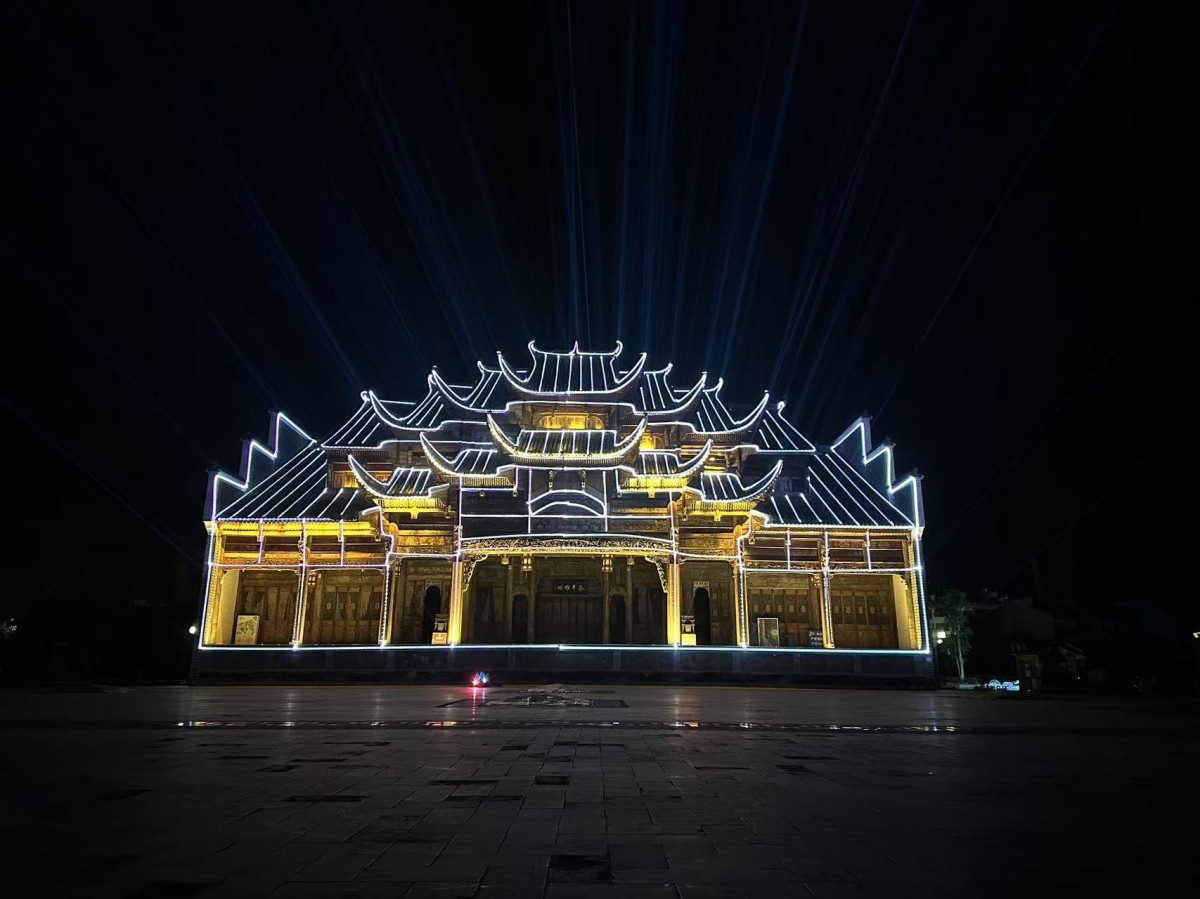

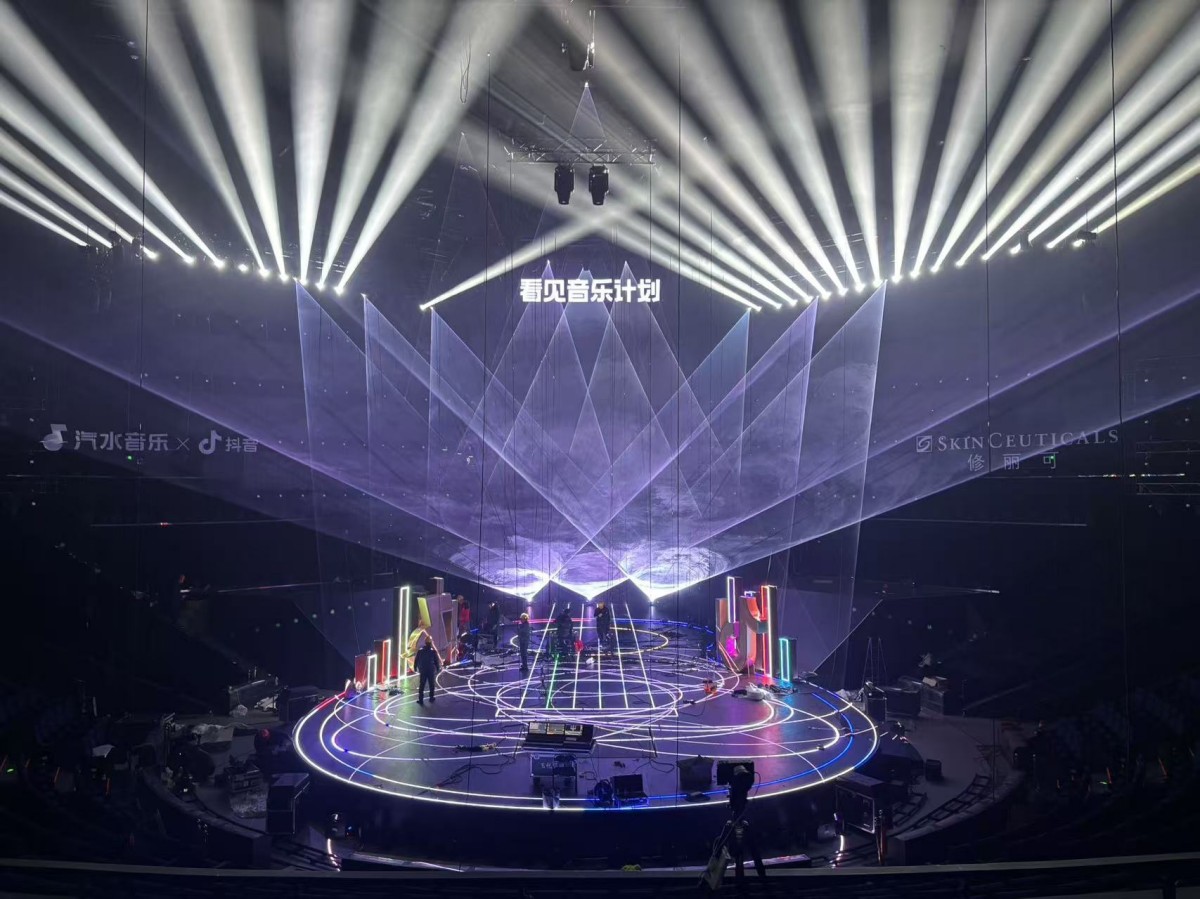

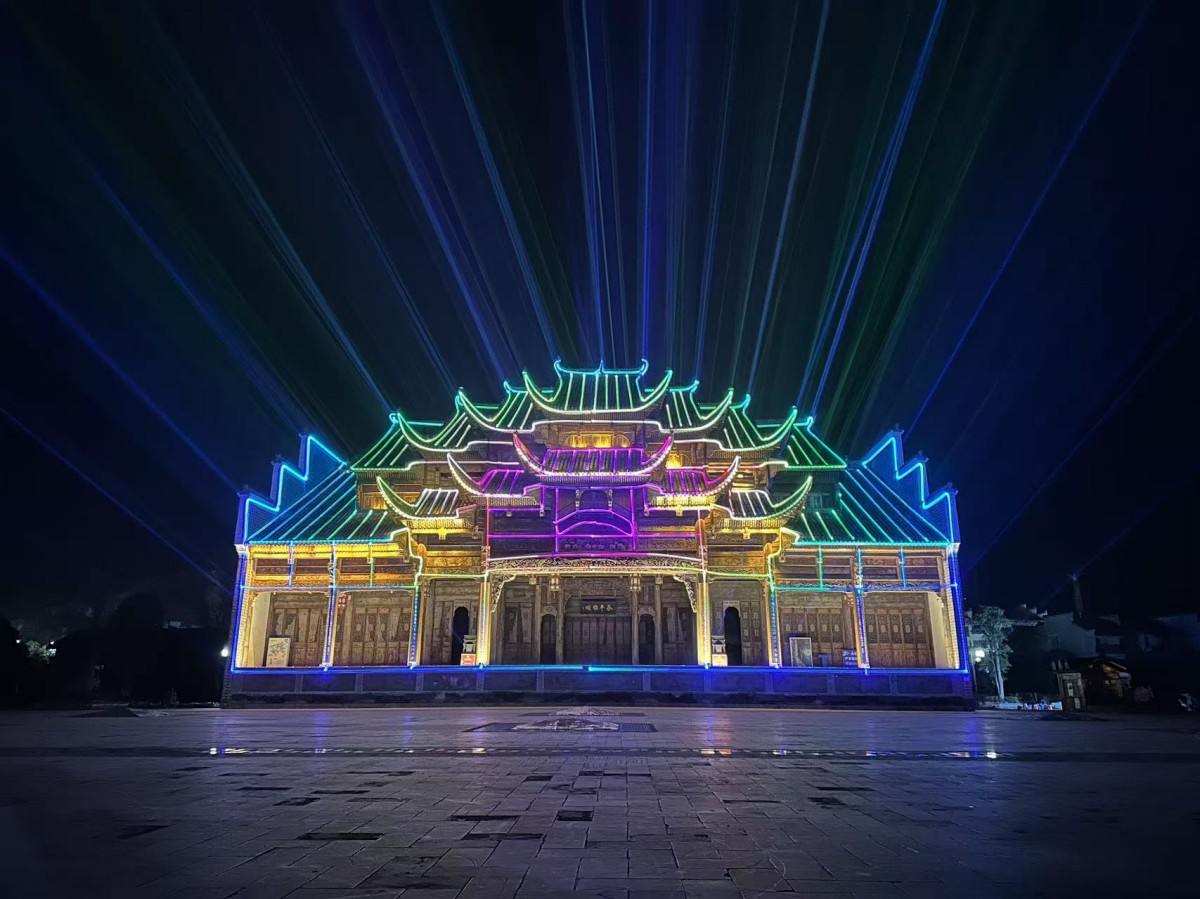

    Application Effect

    97aaac1b-7337-412b-b976-47a46d60e1bf
    1542d31f-2429-454e-8506-3aed68b22abc
    7776269f-1ee1-4c13-985a-410519abf3d5
    d390a079-f55f-4a96-8c89-cdd5b86c7314
