Moving Head Laser Light
IP65 waterproof Moving Head Laser Light with 40kpps scanner and ILDA/ DMX control
Compared to conventional laser lights, these lights feature an added moving head function. Equipped with precision servo motors and advanced control systems, they can perform high-speed and precise pan and tilt movements horizontally and vertically, thereby achieving richer and more colorful lighting effects.
They are housed in a waterproof casing with an IP65 protection rating, safeguarding against water and moisture. This protection effectively prevents significant damage to electronic and optical components from airborne salts, ensuring long-term operational safety.
These lights utilize high-power laser diodes such as Mitsubishi, Nichia, and Osram, delivering exceptionally high light output to ensure clear and bright beam effects in various environments.
Equipped with 40kpps high-speed scanning mirrors, they support rapid and precise beam movement and pattern drawing, making them suitable for complex animations and beam shows.
They support the ILDA standard interface for sophisticated laser pattern and animation control via computer or other control devices.
Multiple control modes are available, including DMX512, automatic mode, sound control mode, and master-slave mode, catering to diverse operational needs.
With TTL and analog modulation capabilities, these lights enable precise brightness adjustments, ensuring optimal light effects in any scenario.
Product parameters
| Model |
TM-RGB15-WMH |
TM-RGB20-WMH |
TM-RGB30-WMH |
| Laser Power |
15W RGB |
20W RGB |
30W RGB |
| Red 638nm |
4.5w |
5w |
10w |
| Green 520nm |
5w |
6w |
10w |
| Blue 450nm |
6.5w |
9w |
12w |
| Beam Size | 7*6.5mm at aperture | ||
| Divergence | <5mm | ||
| Scanner | 40kpps, Max scan angle 60°， ±30° | ||
| Control Mode | Automatic, DMX512(6CH/33CH),master-slave | ||
| Moving Style | X: axis 540°, Y: axis 270° | ||
| Net Weight | 28.5kg | ||
| Packing | Flightcase | ||
Product features
- Uses efficient laser diodes, offering low power consumption and long lifespan, reducing maintenance costs while adapting well to various environments.
- Excellent light source configuration with outstanding color ratios, providing pure white light and vibrant colored light effects.
- Option for built-in FB4 laser controller, with multiple control interfaces on the back panel for high compatibility.
- Produces more concentrated, brighter, and clearer beams capable of projecting over longer distances.
- Integrates multiple advanced technologies for excellent light efficiency and flexible control, suitable for various professional and entertainment venues' lighting needs.
- Comprehensive safety features including lightning protection, over-current and over-voltage protection, leakage protection, moisture resistance, interference-resistant optical path sealing, and fully sealed optical layers.

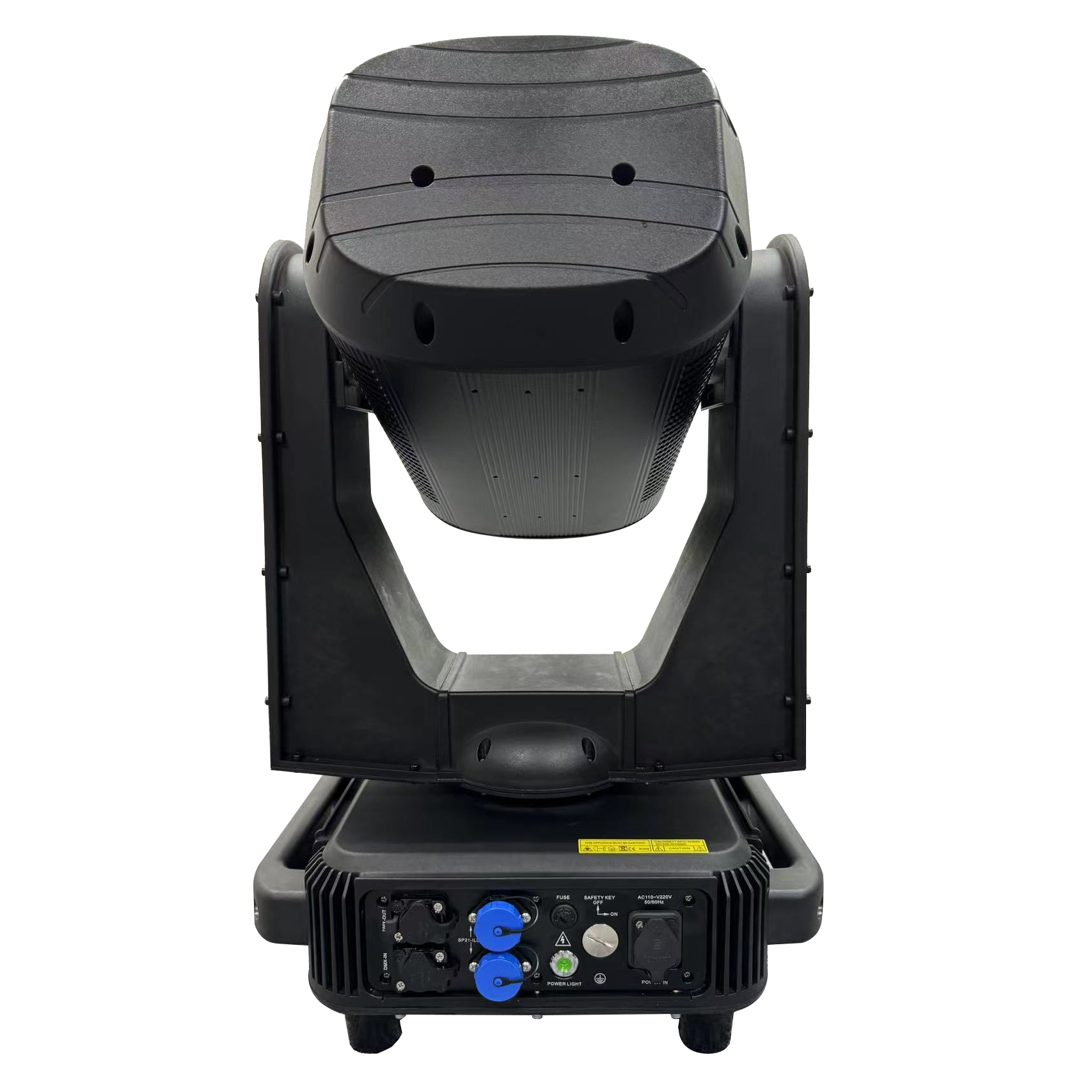

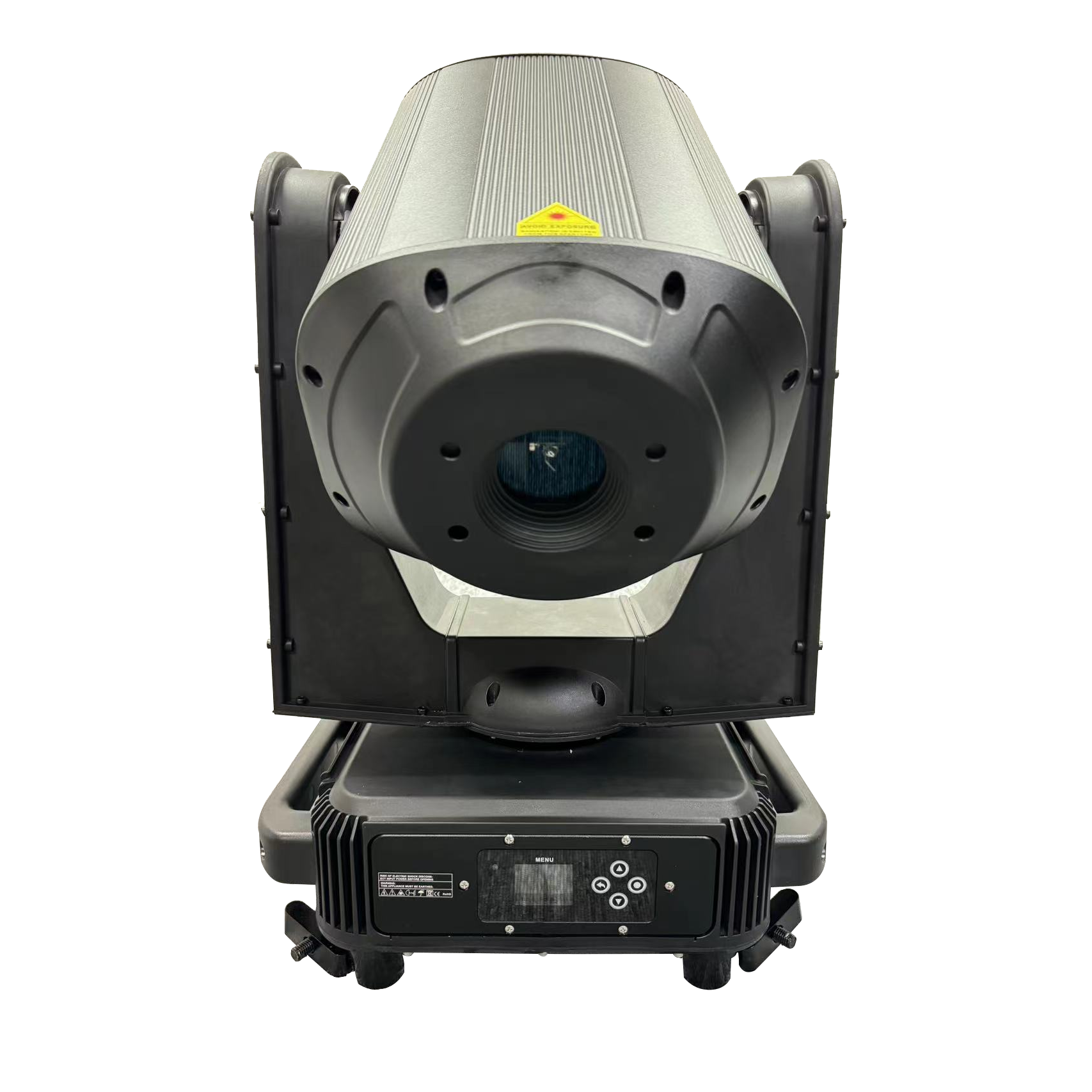

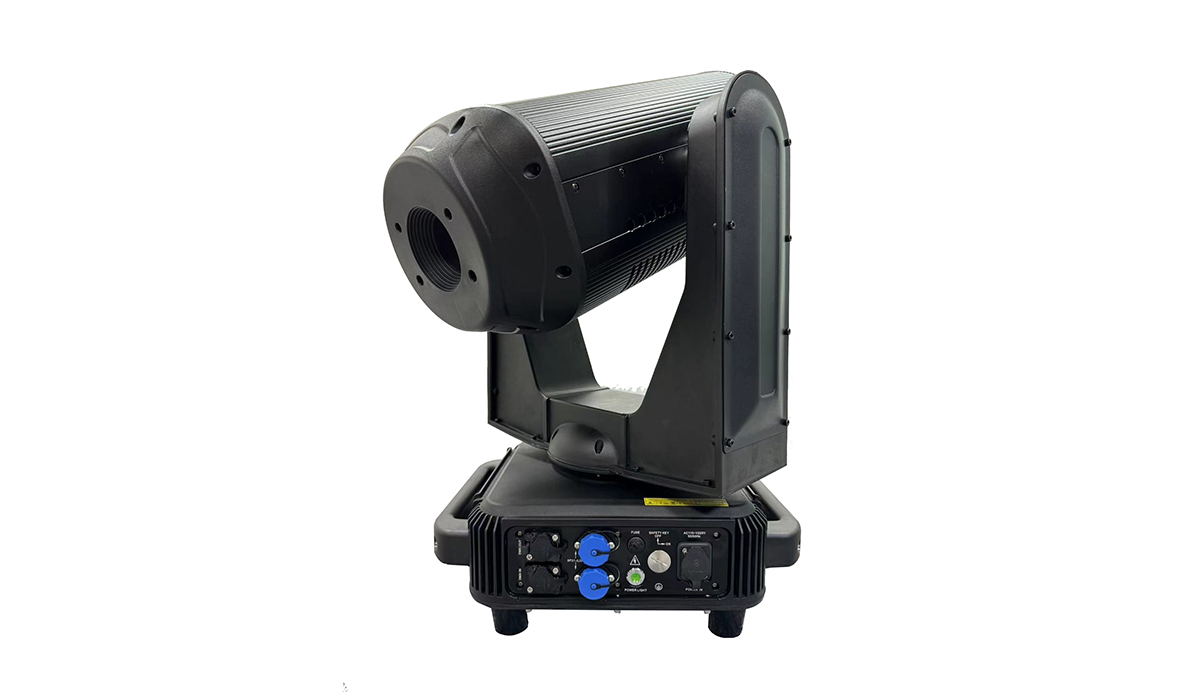

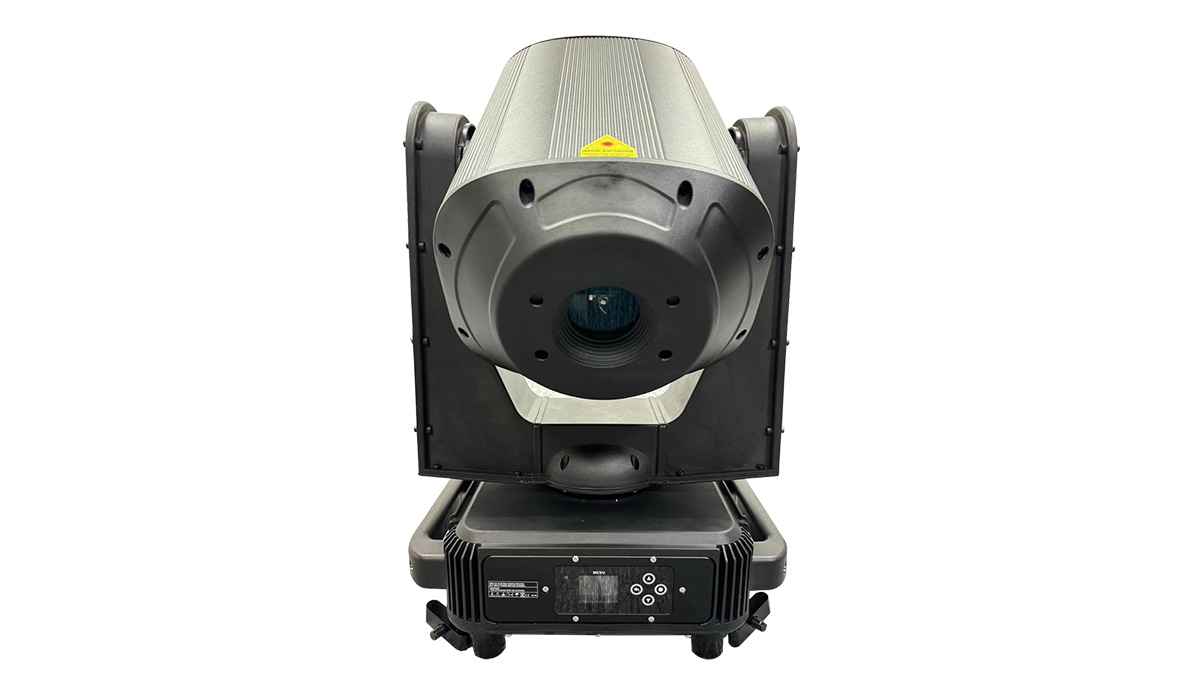

Product details
Application Effect
