Laser Beam Bar

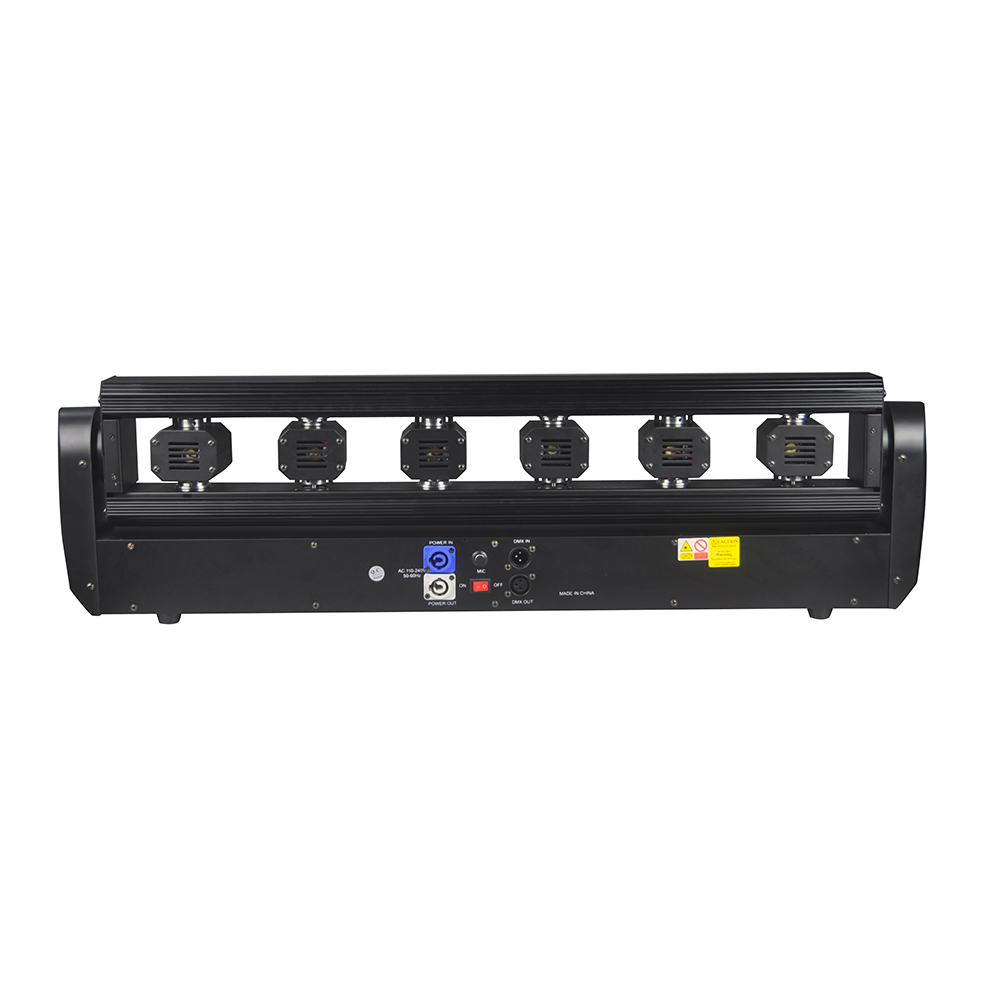

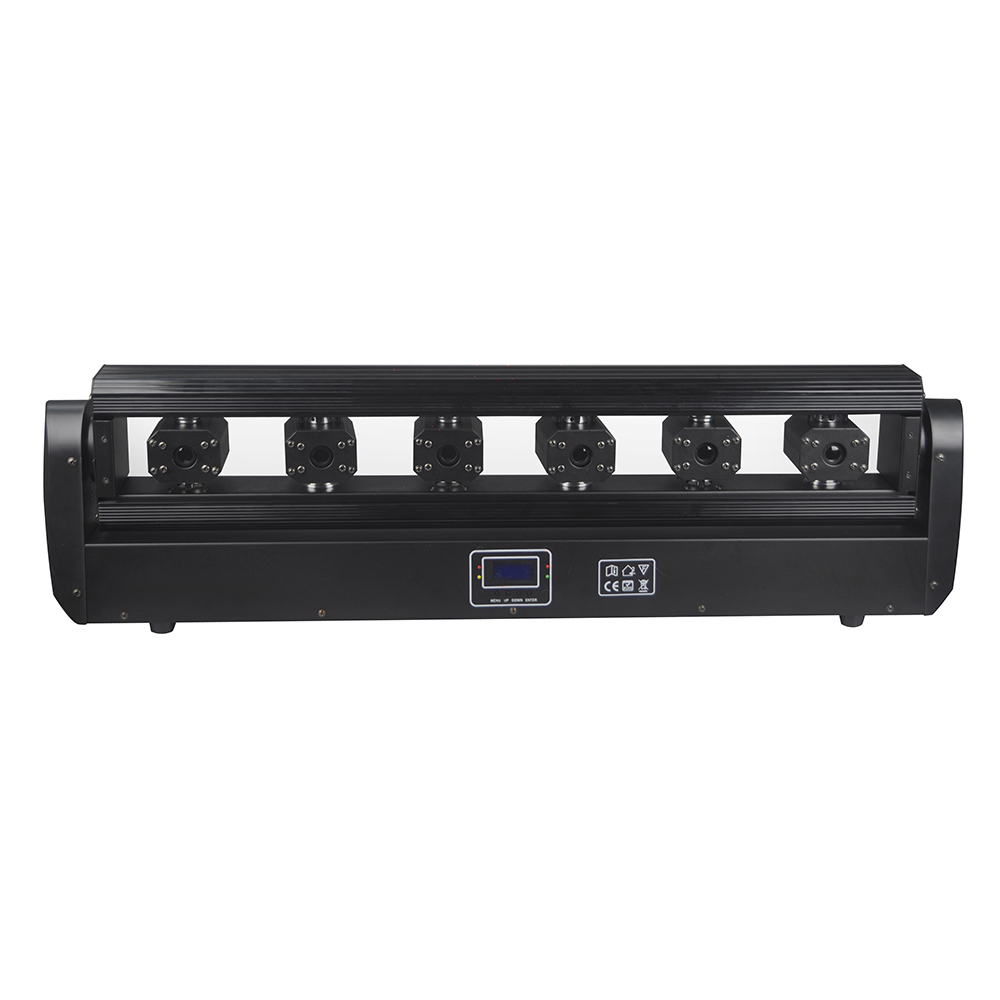

Moving Rgb Laser Beam Bar

- **Laser Configuration**: Equipped with 6 full-color lasers capable of simultaneously emitting multiple beams for multi-point beam effects.

- **Precision Stepper Motor Scanning System**: Includes a precise stepper motor scanning system that allows for high-speed and accurate pan and tilt movements. The Y-axis for the 6 laser heads swings collectively up to 240 degrees, while each X-axis laser head can swing left and right individually.

- **Modulation Signal and Control Modes**: Uses TTL modulation signal. Supports various control modes including sound activation, autonomous operation, DMX512, and master-slave DMX channels. Offers a selection of 15 channels.
- **Laser Effects**: Offers a range of laser effects such as laser grid beam performances, laser flowing line effects, laser strobe effects, flowing strobe effects, and more.
- **Safety Features**: Includes a laser signal key switch for safety, a remote control interface, and suspension bolt for secure installation.

Product parameters

Model	TM-RGB03-LAM
Laser Power	3W RGB In Total
	638nm	525nm	450nm
	200mw*6pcs	100mw*6pcs	200mw*6pcs
Control Mode	sound control,self-walking,DMX512, master-slave effect
Size	L1020W230H290mm
Weight	12kg
Packing	Carton/Flightcase
Moving Style	Yaxis swing 240 degrees,X axis laser head can swing
Lsaer Effect	laser Skynet beam performance,laser Ipw line effect,laserstroboscopic effect,waterstroboscopic effect,etc.

Product features

- **Efficient Laser Diode**: Utilizes efficient laser diodes with low power consumption and long lifespan, reducing maintenance costs.
- **High Brightness, Pure Color Output**: Provides high brightness and pure color output to ensure clear and bright beam effects.
- **Horizontal and Vertical Movement**: Capable of moving horizontally and vertically to achieve dynamic and flexible beam effects.
- **Robust Housing Design**: Designed with a sturdy casing for excellent protection, suitable for various environments.
- **Comprehensive Safety Features**: Equipped with comprehensive safety measures including lightning protection, moisture resistance, dustproofing, and anti-interference to ensure long-term stable operation.
- **Multiple Control Modes**: Supports various control modes including DMX512, sound activation, automatic mode, and master-slave mode for convenient operation.
- **Linear and Modular Design**: Designed to be linear and modular, facilitating easy installation and arrangement.
