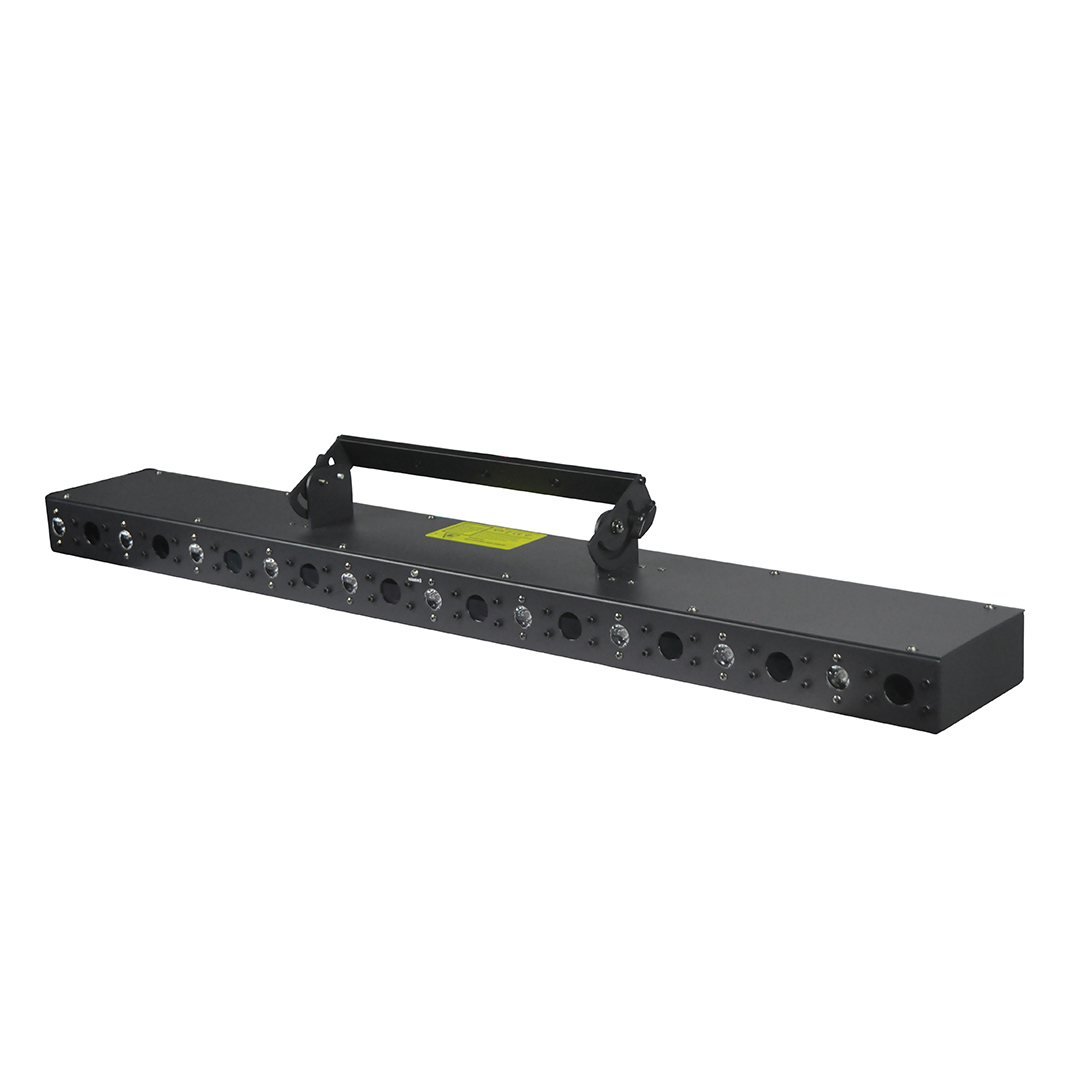

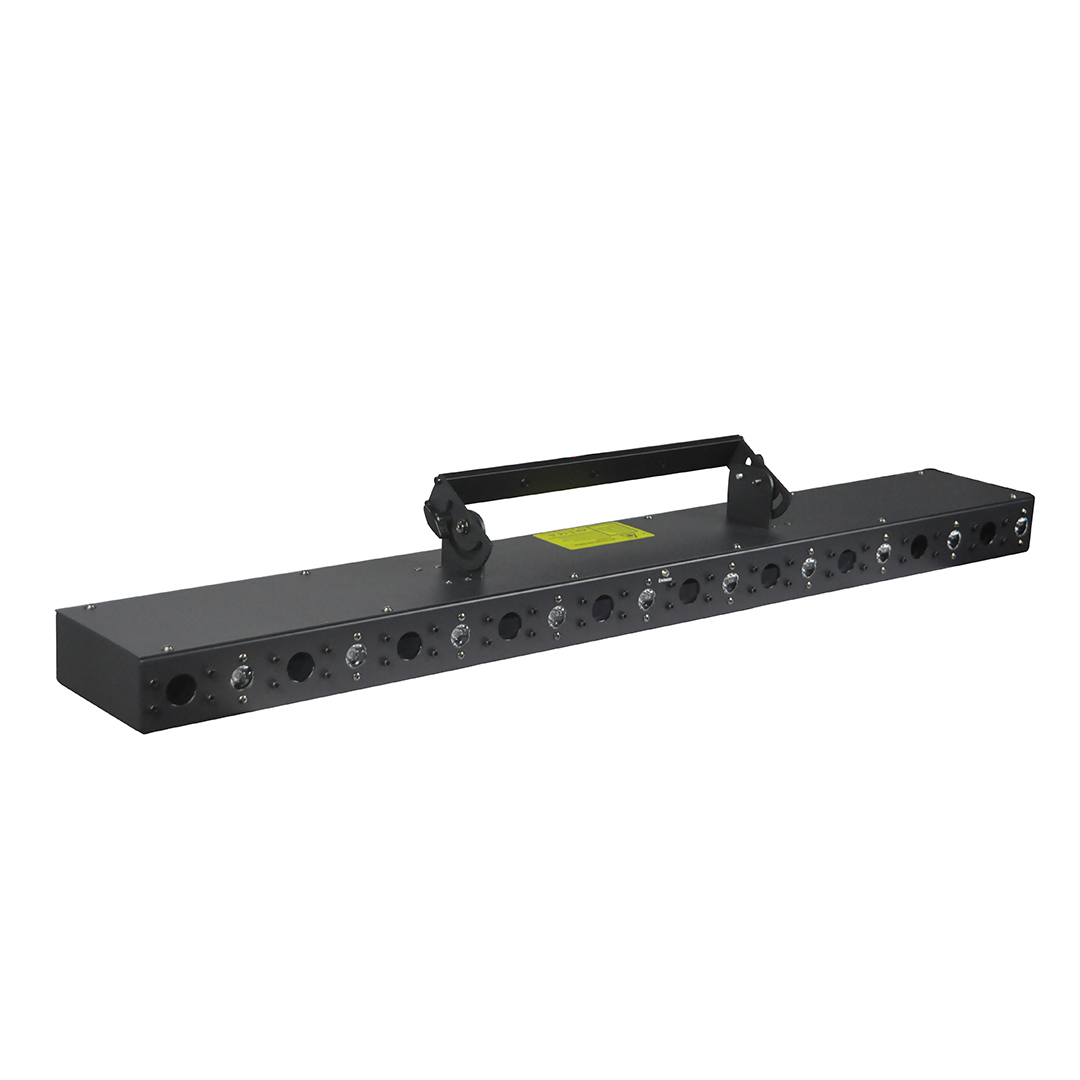

Laser Beam Bar
Red laser beam bar with Golden LEDS
- **Matrix Combination Effect**: Features 10 parallel laser beams and 10 LED beams with a divergence angle of 8 degrees, spaced 10cm apart. Each beam can be adjusted in XY direction on the front panel to achieve ideal spacing and alignment. Multiple laser emitters allow simultaneous emission of multiple beams, creating a multi-point beam effect.
- **LED**: 10 pieces of 3W golden yellow LEDs, wavelength 580-590nm (color optional).
- **Two Mounting Options**: Can be mounted with handles on either the top panel or rear panel, facilitating installation at different angles for customers.
- **Control Modes**: Supports sound activation, automatic mode, manual mode (select single effect), DMX512, and master-slave synchronization mode. In DMX512 mode, each laser beam's on/off can be controlled. Includes built-in dozens of effects such as constant on, strobe, bi-directional flow, open/close, and chase effects.
Product parameters
| Model |
TM-R01-LAS |
TM-B01-LAS |
TM-G005-LAS |
| Laser Power |
1W |
1W |
500mw |
| Red 638nm |
100mw*10pcs |
/ |
/ |
| Green 520nm |
/ |
/ |
50mw*10pcs |
| Blue 450nm |
/ |
100mw*10pcs |
/ |
| Golden LED |
3W*10pcs |
||
| Control Mode |
DMX512, Sound Active AUTO, Manual , Master-Slave |
||
| Size |
L1105*W245*H399 |
||
| Net Weight |
10kg |
||
| Packing |
Carton/Flightcase |
||
Product features
- **Laser Diode Efficiency**: Utilizes efficient laser diodes, offering low power consumption and long lifespan, reducing maintenance costs.
- **High Brightness, Pure Color Output**: Ensures clear and bright beam effects with high brightness and pure color output.
- **Robust Housing Design**: Designed with a sturdy housing for excellent protection, suitable for various environments.
- **Rich and Colorful Lighting Effects**: Capable of producing rich and colorful lighting effects, enhancing stage visual impact.
- **Linear Structure**: Suitable for installation on stage edges, ceilings, or specific linear arrangements.

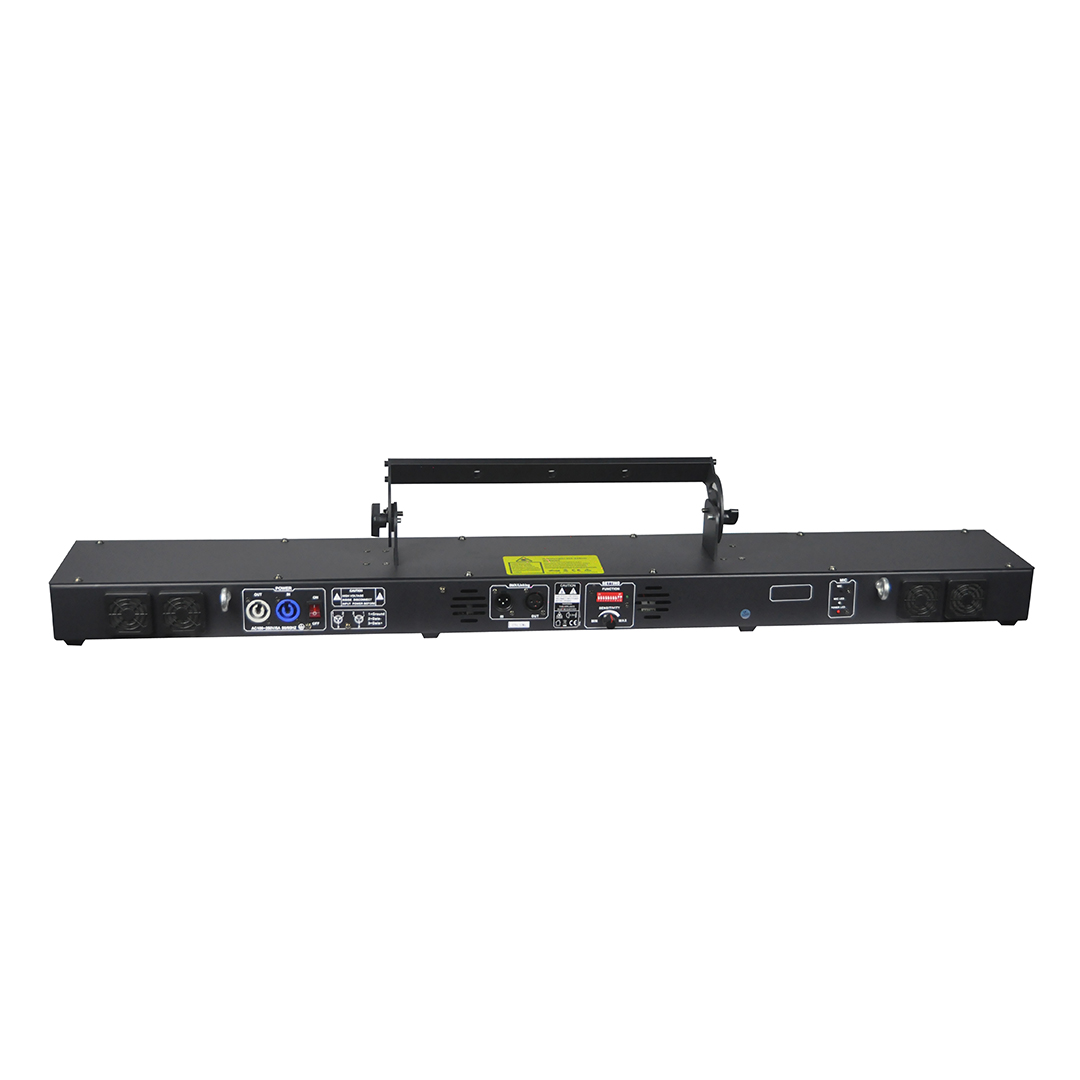

Product details

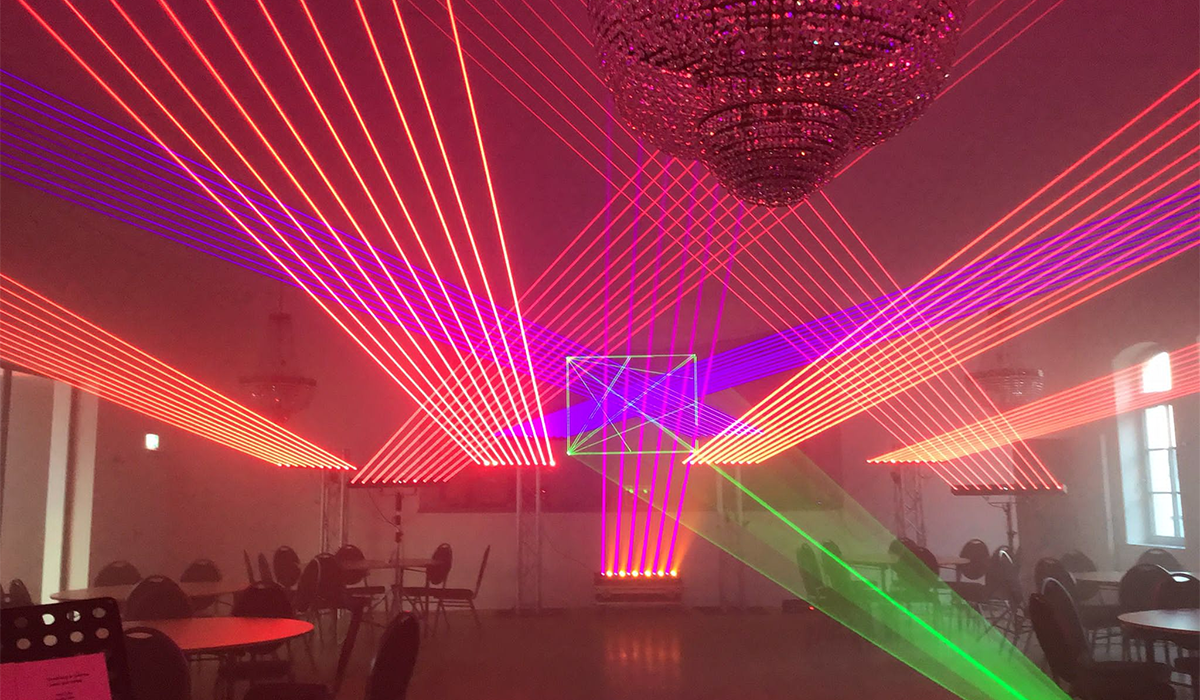

Application Effect
