Laser Beam Bar
Red laser beam bar with static beams
- **Matrix Combination Effect**: Features 10 parallel laser beams with a spacing of 10cm. Each beam can be adjusted in XY direction on the front panel to achieve ideal height and spacing effects. Multiple laser emitters allow simultaneous emission of multiple beams, creating a multi-point beam effect.
- **Two Mounting Options**: Can be mounted with handles on either the top panel or rear panel, facilitating installation at different angles for customers.
- **Control Modes**: Supports sound activation, automatic mode, manual mode (select single effect), DMX512, and master-slave synchronization mode. In DMX512 mode, each laser beam's on/off can be controlled. Includes built-in dozens of effects such as constant on, strobe, bi-directional flow, open/close, and chase effects.
Product parameters
| Model |
TM-R01-LAS |
TM-B01-LAS |
TM-G005-LAS |
| Laser Power |
1W |
1W |
500mw |
| Red 638nm |
100mw*10pcs |
/ |
/ |
| Green 520nm |
/ |
/ |
50mw*10pcs |
| Blue 450nm |
/ |
100mw*10pcs |
/ |
| Control Mode |
DMX512, Sound Active AUTO, Manual , Master-Slave |
||
| Size |
L1105*W245*H399 |
||
| Net Weight |
10kg |
||
| Packing |
Carton/Flightcase |
||
Product features
- Laser uses analog modulation technology for linear brightness control, ensuring vibrant colors.
- Equipped with multiple laser emitters, capable of simultaneous emission of multiple laser beams for multi-point beam effects.
- Concentrated beams capable of long-distance projection while maintaining high brightness and clarity.
- Multiple control modes including DMX512, ILDA interface, Sound Active mode, Auto mode, etc., catering to various control needs.
- Includes laser signal key switch, remote control interface, and suspension bolt for installation flexibility.
- Dustproof design with IP61 protection rating effectively prevents dust and oil smoke from entering the machine, ensuring longevity and reducing maintenance costs.
Product details

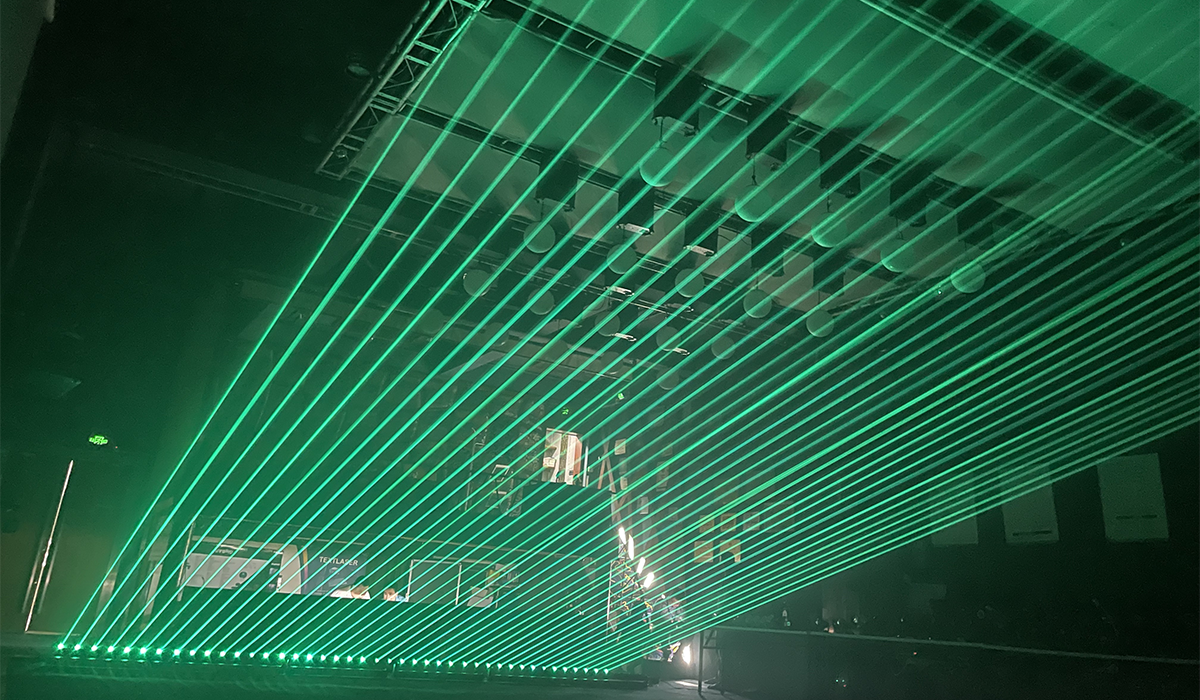

Application Effect
