Laser Beam Bar

Moving Red Laser Beam Bar With Single Red 638nm 4w (1).JPG

Rgb Laser Beam Bar With 20kpps Scanner*6pcs

- 9W RGB Laser Beam Bar
- 12W RGB Laser Beam Bar
- 18W RGB Laser Beam Bar

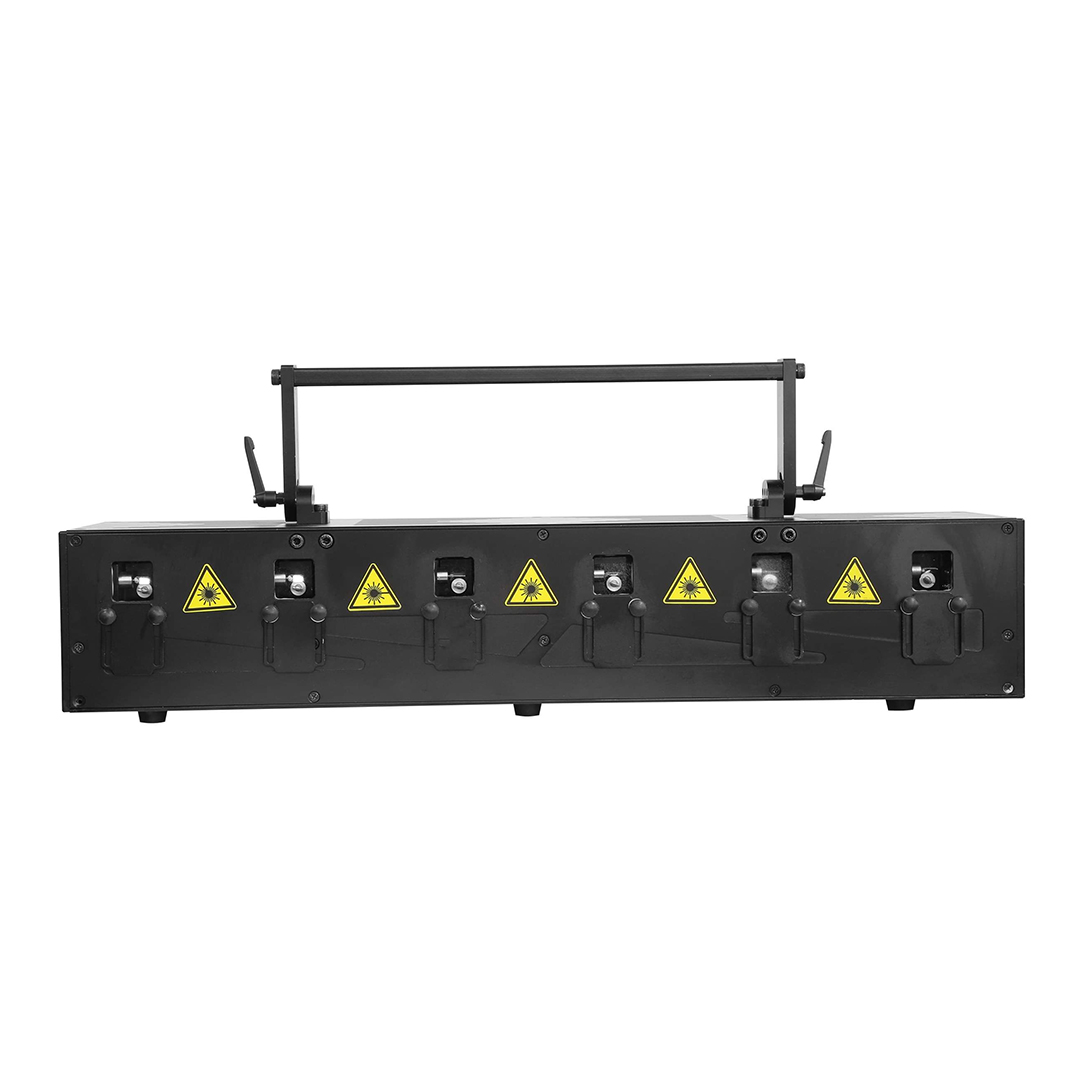

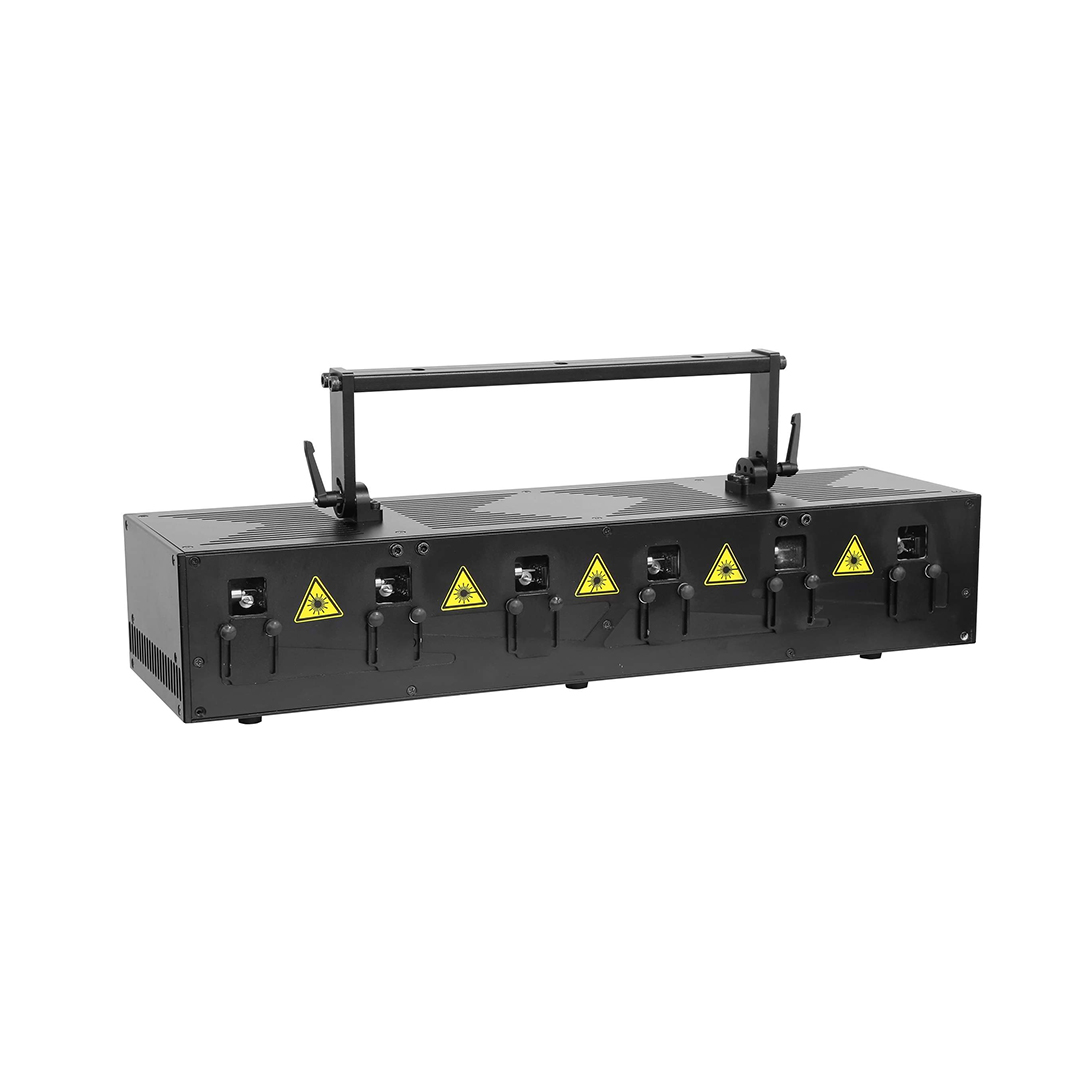

Compared to conventional laser lights, this RGB Laser Beam Bar is equipped with 6 laser diodes, each capable of independently controlling the direction and patterns of the beams. Each laser head is paired with a set of 20kpps scanners for fast and precise beam control.

**Control Modes:** Supports ILDA, DMX, Auto, Soundactive. Customers can use a control console to independently control each head for patterns, effects, colors, brightness, and positioning, allowing for combinations of uniform or varied spectacular effects.
**RGB Lasers:** Utilizes high stability, long-life semiconductor green lasers (Diode Solid-State Laser), with laser diodes directly emitting lasers. Operating environment ranges from -30°C to 40°C.
**LCD Graphic Display:** Displays graphic information such as pattern size, sound sensitivity, color settings, scanner speed, and pattern mirroring.
**Control Modes:** DMX512 Standard Version (12CH), Professional Version (62CH), Sound Active, Auto, Master-Slave Sync, and other functions.

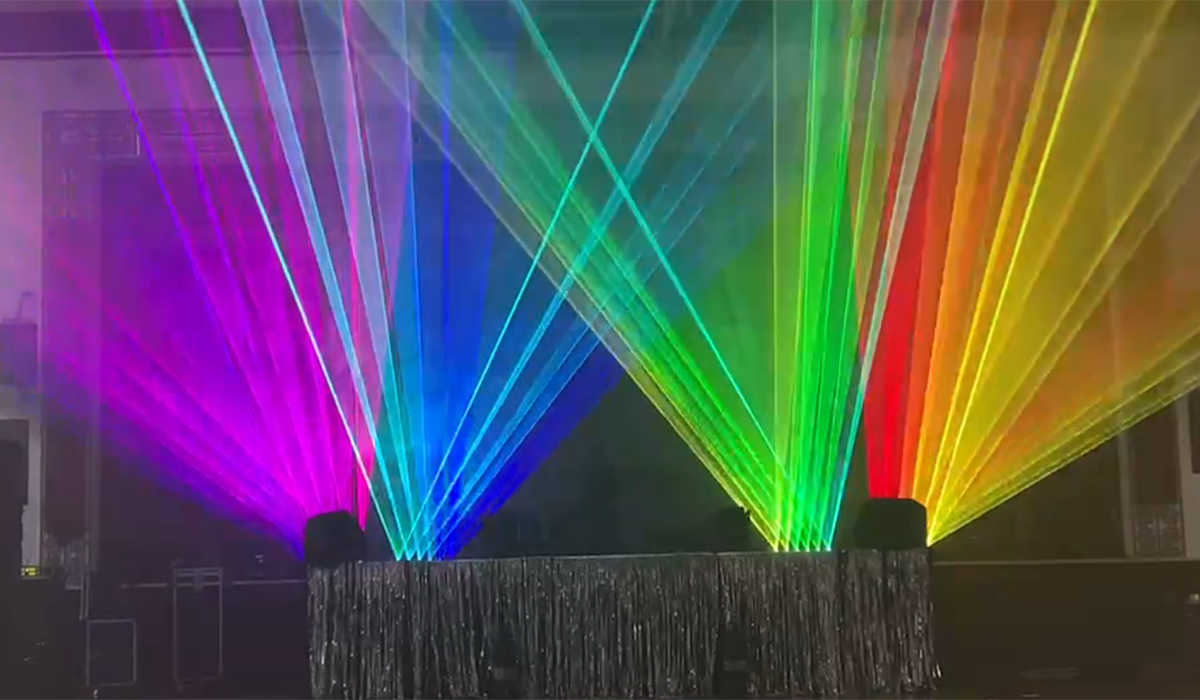

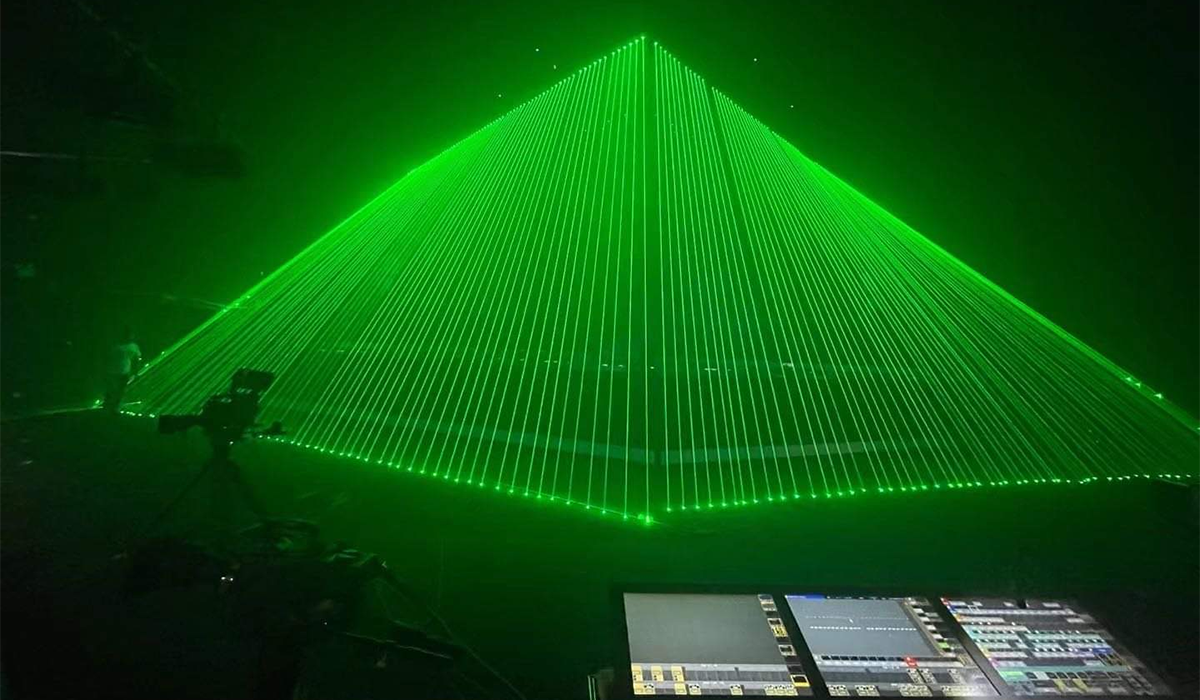

Produces continuous, parallel beams covering a wide area, suitable for large-area lighting effects. Ideal for installation on stage edges or above to create uniform beam effects.

Product parameters

Model	TM-RGB09-LA	TM-RGB12-LA	TM-RGB18-LA
Laser Power	9W RGB	12W RGB	18W RGB
Red 638nm	300mw*6pcs	500mw*6pcs	600mw*6pcs
Green 520nm	300mw*6pcs	600mw*6pcs	900mw*6pcs
Blue 450nm	900mw*6pcs	900mw*6pcs	1500mw*6pcs
Divergence	<1.6mrad
Scanner	20kpps*6pcs，40°， ±20°
Control Mode	DMX, Auto, Sound Active
Size	L1000W206H135mm
Net Weight	19kg
Packing	Carton/Flightcase

Product features

- Laser uses analog modulation technology for linear control of laser brightness, ensuring vibrant colors.
- Capable of generating multiple independently controlled laser beams for dynamic beam effects and pattern drawing.
- Commonly used for creating complex beam effects like scanning, tracking, and multi-point positioning.
- Concentrated beams capable of long-distance projection while maintaining high brightness and clarity.
- Multiple control modes including DMX512, ILDA interface, Sound Active mode, Auto mode, etc., catering to various control needs.
- Dustproof design with IP61 protection rating effectively prevents dust and oil smoke from entering the machine, ensuring laser longevity and reducing maintenance costs.
