Waterproof Laser Light

Waterproof 120w Rgb Laser Light With Fiber Diodes And Digital Driver

This light is specifically designed for outdoor performance needs, featuring a meticulously crafted and robust housing structure to ensure long-term outdoor use. It achieves an IP66 protection rating, capable of withstanding high-pressure water jets. The laser light also includes shock and surge protection, ensuring a long lifespan even in harsh environmental conditions.

As the brightest light in the world, it exhibits dreamlike variability, brightness, shock, and ease of control unmatched by any other light source. Its charm can be felt everywhere in municipal projects, theme parks, theaters, tourist attractions, and cultural performances. Especially outdoors, its high brightness, long projection distance, and large display area surpass any other light source, making all other lights pale in comparison. In this regard, it reigns as the king of light and shadow. In scenic areas, lasers add soul; without them, these areas would lack vitality.

Unique low-temperature protection technology combines anti-freeze and anti-frost technologies, ensuring normal operation in temperatures ranging from -20°C to 60°C. With proper maintenance, even at temperatures as low as -40°C during temporary power outages, the system remains undamaged.

It also features convenient functions such as storing laser programs on SD cards for automatic playback, eliminating the need for manual operation. Using the latest versions of QS4.0 and beyond4.0, it allows remote switching of laser playback modes without using FB4, as well as remote adjustment of FB4 parameters.

Product parameters

Model	TM-RGB120-WP
Laser Power	120W In Total
	638nm	525nm	450nm
	30W	40W	50W
Beam size	13*13.5mm at aperture
Divergence	<1.2mrad full angle
Scanner	25kpps ILDA @8° standard configuration 400-700nm,High reflectivity dielectric film,reflectivity>98%
Max scan angle	50°， ±25° on both axis
Function Panel	Key Interlock, Remote, , Powercon, LCD/ FB4, RJ45 IN/OUT, DMX IN/OUT, ILDA IN/OUT,Power ON/OFF
Laser safety features	Keyed interlock, emission delay,scan-fail safety, 1 beam scan-fail, mechanical beam shutter, Option: fast electromechanical shutter [reaction time <20ms],
Control Mode	ILDA, DMX, Auto, Sound Active, SD Card
Size	L813W516H359mm
Net Weight	92kg
Packing	Flightcase

Product features

1. Uses fiber-coupled pure diode laser, TEC cooling, ensuring stable operation, long lifespan, and high color uniformity.
2. Small spot size: Beam divergence angle for all series products between 0.8—1.2 mrad.
3. More concentrated, brighter, clearer beams with longer projection distances.
4. Elegant and compact design to ensure optimal performance with minimal size and weight.
5. Uses top domestic brands for scanning mirrors, offering scanning speeds from 15K to 50K.
6. Complies with EU standards and includes multiple safety protection features.
7. Provides related accessories like built-in or external FB4, lenses, cables, and mounting cases.
8. Offers personalized customization options for machine power ratios, design, and feature adjustments.

application

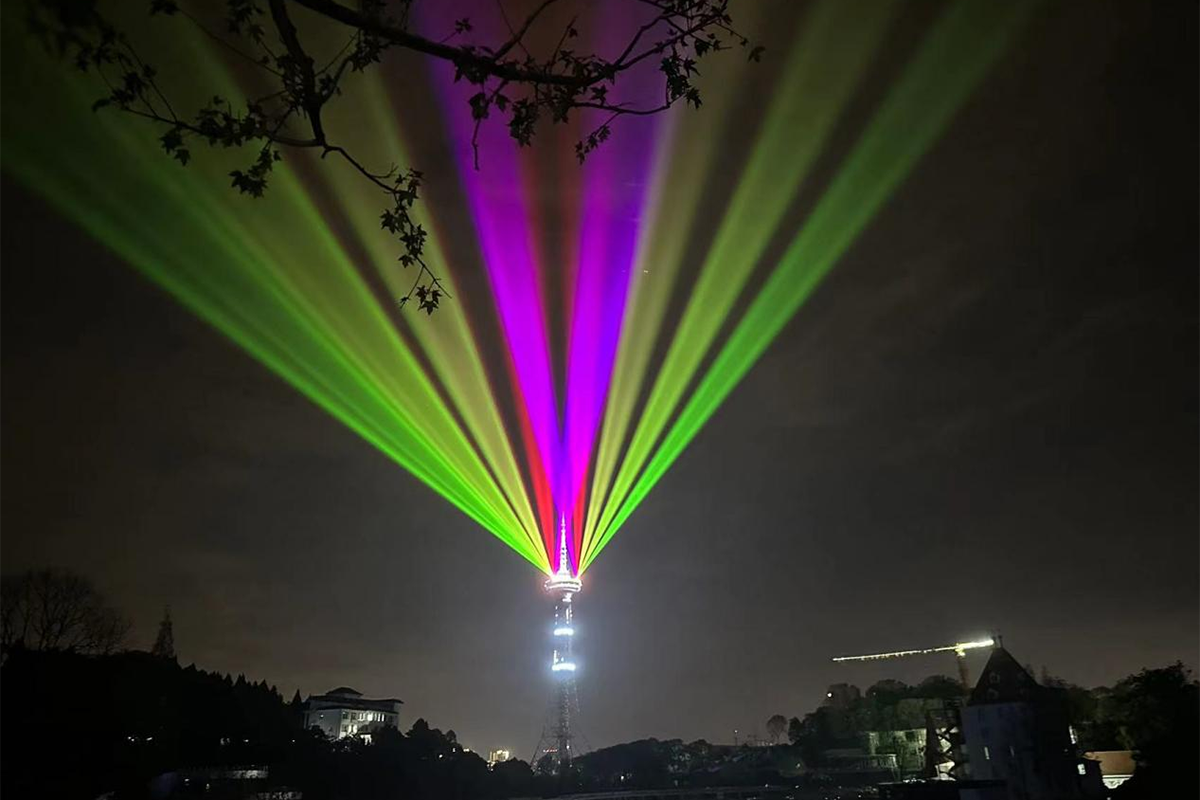

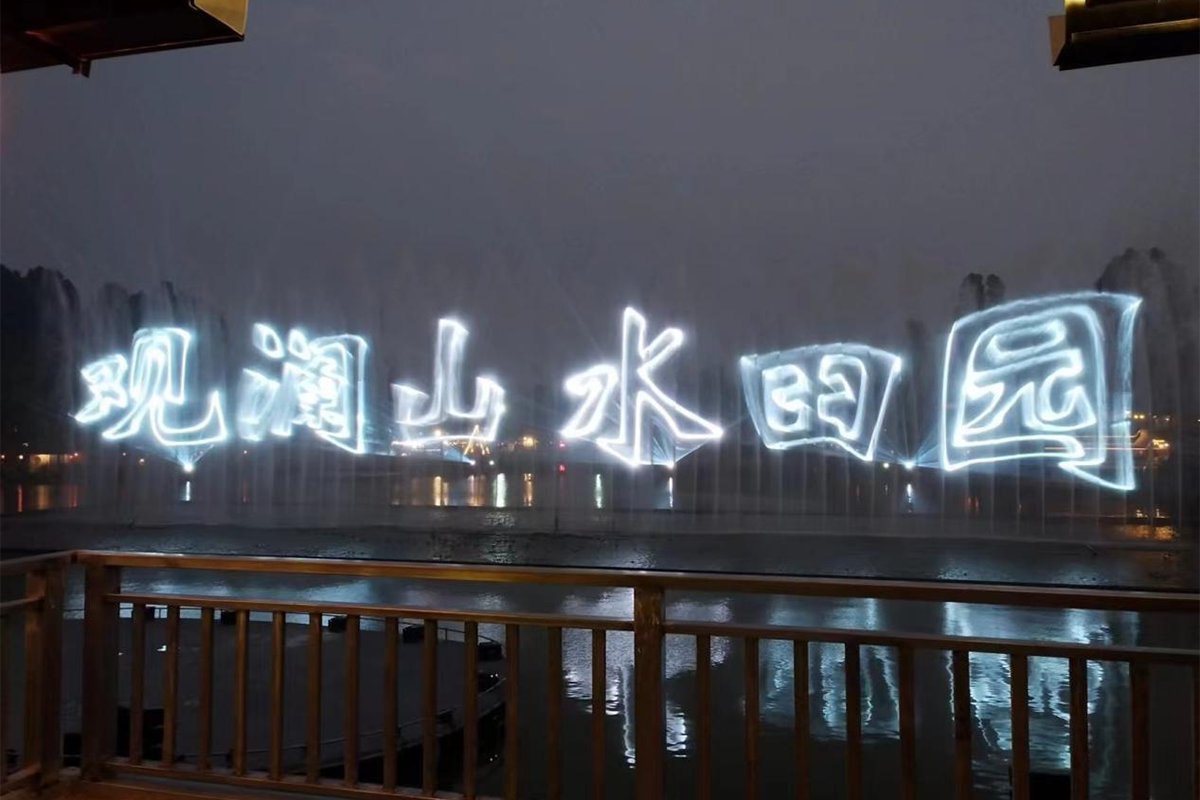

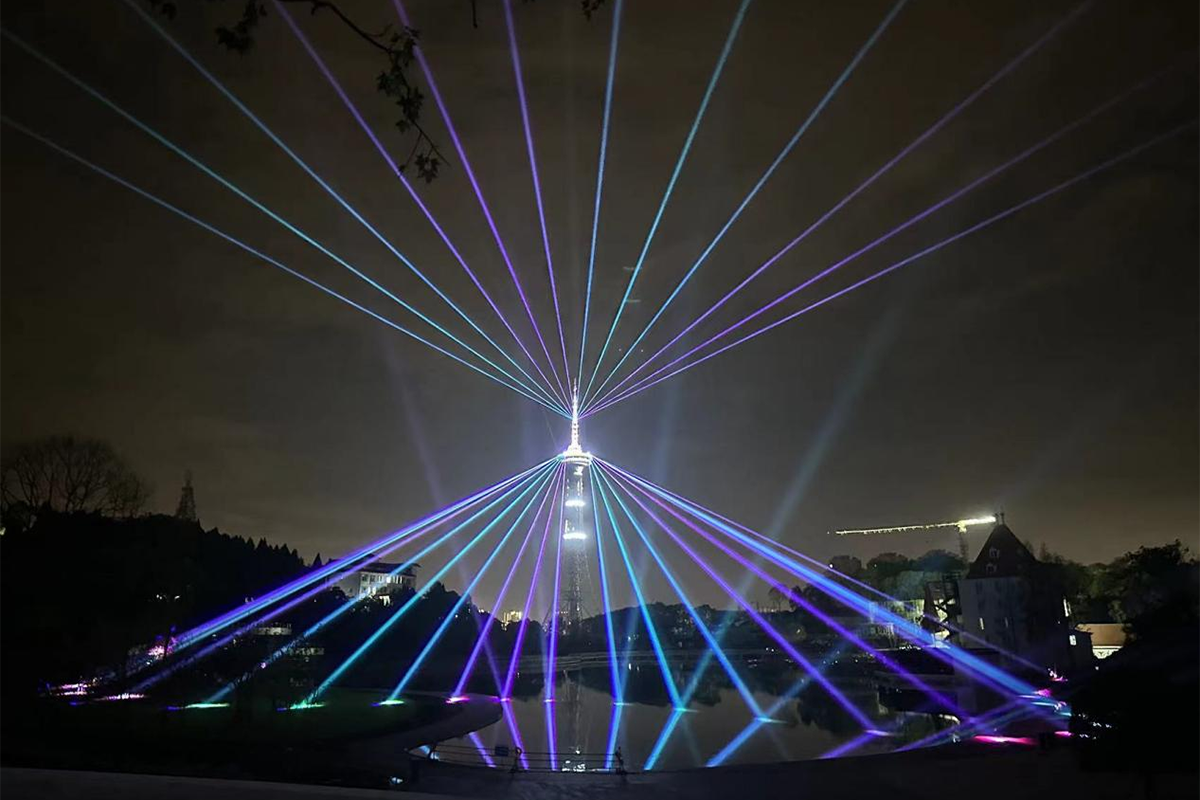

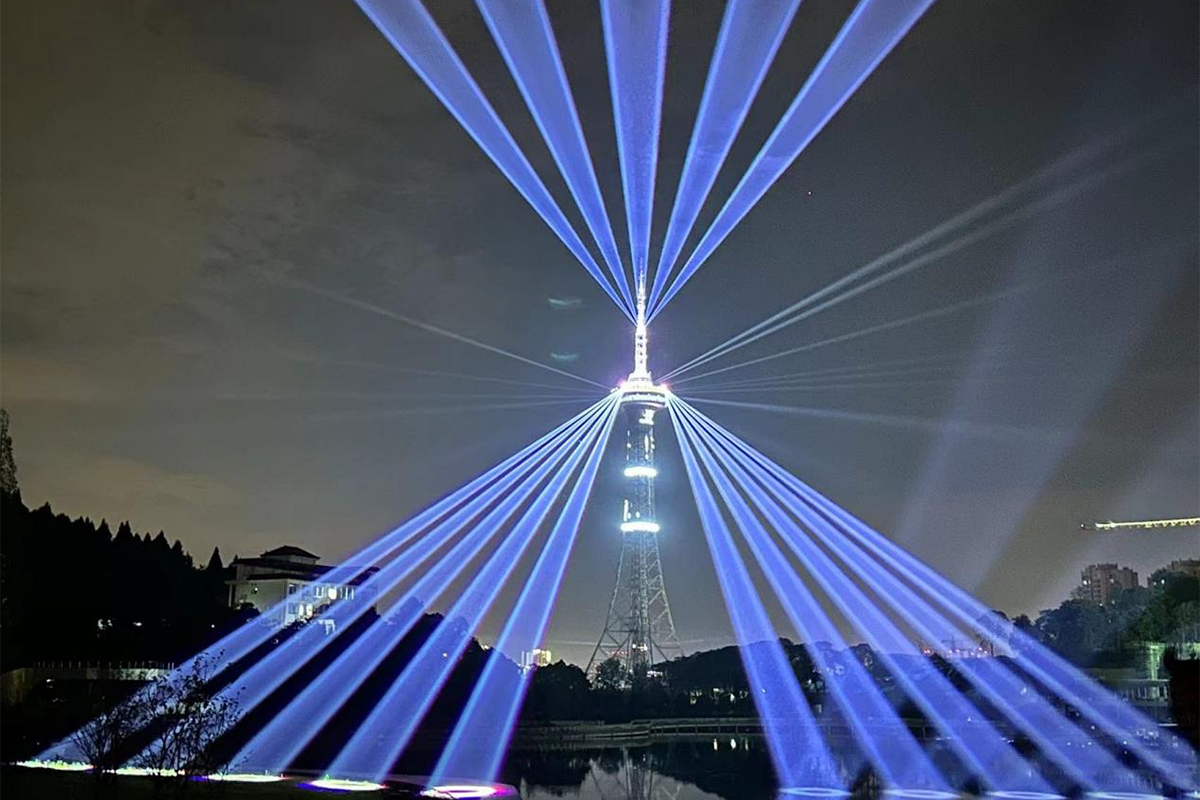

Ideal for large events and celebrations, TV and film production, theme parks and amusement parks, theaters and stage plays, concerts and performances, advertising and signage, exhibitions and trade shows, sports events and large gatherings, and theaters.
